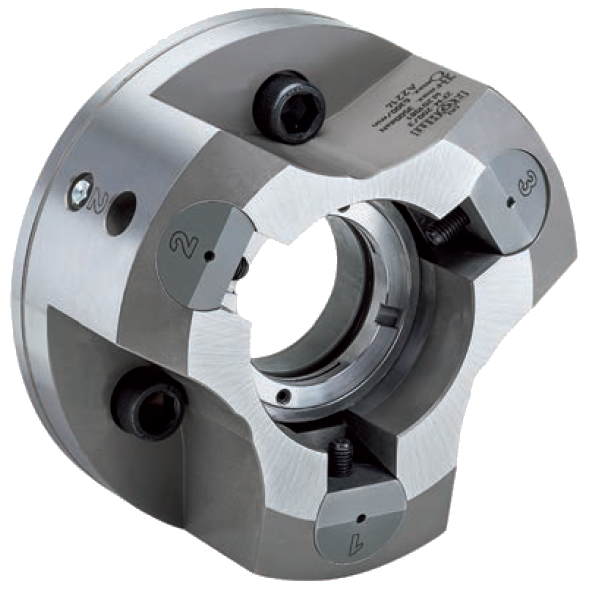

Power-operated Draw Bar chuck with Pull-down ZFM - with pull-down  |
APPLICATION Simple clamping principle for external clamping of bars, pipes and shafts, as well as flange-type workpieces where the axial run-out errors of the workpiece have to be minimized. TYPE Collet pin system with cylindrical centre mount. TECHNICAL FEATURES - Power transmission directly from the piston to the draw rod studs - Clamping inserts hardened, adapted to the workpiece diameter CUSTOMER BENEFITS » Maximum plane-parallelism thanks to active draw-down using axially movable draw rod studs » Easy adaptation to various workpiece diameters thanks to interchangeable clamping inserts » Insensitive clamping system thanks to simple setup, allows machining at maximum speeds |
Included in the scope of delivery: Chuck, chuck and jaw mounting screws, mounting wrench (without top jaws) |
We reserve the right to make technical changes.
