Ferg Threading Taps M 184,684,184A,684A

Threading Taps
ISO Metric coarse thread DIN 13

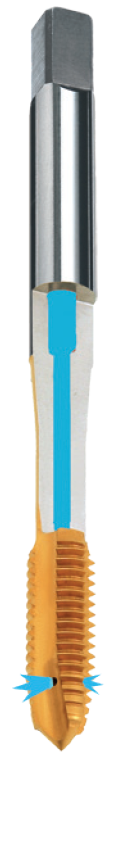

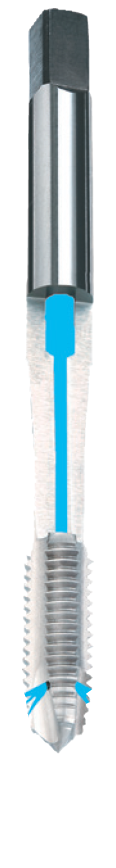

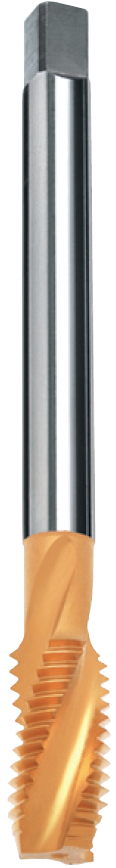

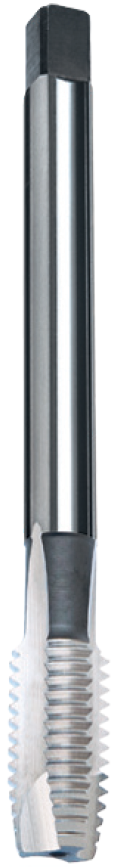

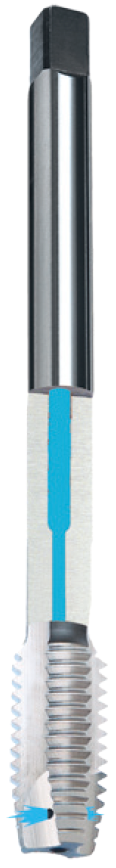

Heat treated and heat-resistant steels up to 1.000 N/mm² or 30 HRC										High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 184A 2000018400	DIN 376 184 2500018400	DIN 371 184A 2000318400	DIN 376 184 2500318400	DIN 371 T184A 2000018410	DIN 376 T184 2500018410	DIN 371 A184A 2000018412	DIN 376 A184 2500018412	DIN 371 684A 2000068400	DIN 376 684 2500068400	DIN 371 T684A 2000068410	DIN 376 T684 2500068410
										HOLE		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole
										Chamfer lead acc. to DIN 2197		B = 4xP		B = 4xP		B = 4xP		B = 4xP		B = 4xP		B = 4xP
										LIMIT		ISO 2 (6H)		7G		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)
										COATING		Bright (without Coating or without Surface treatment)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)
										DIN		371	376	371	376	371	376	371	376	371	376	371	376
										ORDER No. EDP = Nr.+ ★		DIN 371 2000018400* 184A		DIN 371 2000318400* 184A		DIN 371 2000018410* T184A		DIN 371 2000018412* A184A		DIN 371 2000068400* 684A		DIN 371 2000068410* T684A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500018400* 184		DIN 376 2500318400* 184		DIN 376 2500018410* T184		DIN 376 2500018412* A184		DIN 376 2500068400* 684		DIN 376 2500068410* T684
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z		Z
40	6	6	-	2.5	2.1			0.75	M 1*	(0.25)	010	3		3		3		3
40	6	6	-	2.5	2.1			0.85	M 1.1*	(0.25)	011	3		3		3		3
40	6	6	-	2.5	2.1			0.95	M 1.2*	(0.25)	012	3		3		3		3
40	7	7	-	2.5	2.1			1.1	M 1.4*	(0.3)	014	3		3		3		3
40	8	8	-	2.5	2.1			1.25	M 1.6	(0.35)	016	3		3		3		3
40	8	8	-	2.5	2.1			1.3	M 1.7	(0.35)	017	3		3		3		3
40	8	8	-	2.5	2.1			1.45	M 1.8	(0.35)	018	3		3		3		3
45	9	9	-	2.8	2.1			1.6	M 2	(0.4)	020	3 ■		3		3		3 ■
45	9	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022	3		3		3		3
45	9	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023	3		3		3		3
50	9	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	3 ■		3		3		3 ■
50	9	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026	3		3		3		3
56	11	5	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3 ■		3 ■		3 ■		3 ■		3		3
56	12	6	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3 ■		3		3		3 ■		3		3
63	13	7	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3 ■		3 ■		3 ■		3 ■		3		3
70	15	8	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
80	17	10	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
80	17	10	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3		3		3		3		3		3
90	20	12	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■ ■		3 ■		3 ■ ■		3 ■		3 ■		3 ■
90	20	12	35	9	7	7	5.5	7.8	M 9	(1.25)	090	3		3		3		3		3		3
100	22	15	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■ ■		3 ■		3 ■ ■		3 ■		3 ■		3 ■
110	24	16				9	7	10.2	M 12	(1.75)	120	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
110	26	20				11	9	12	M 14	(2)	140	3 ■		3 ■		3 ■		3 ■		3		3
110	27	20				12	9	14	M 16	(2)	160	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
125	30	25				14	11	15.5	M 18	(2.5)	180	4 ■		4		4		4 ■		4 ■		4 ■
140	32	25				16	12	17.5	M 20	(2.5)	200	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
140	32	25				18	14.5	19.5	M 22	(2.5)	220	4 ■		4		4		4 ■		4		4
160	34	30				18	14.5	21	M 24	(3)	240	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
160	36	30				20	16	24	M 27	(3)	270	4 ■		4		4		4 ■		4		4
180	40	35				22	18	26.5	M 30	(3.5)	300	4 ■		4		4		4 ■		4		4
180	40	40				25	20	29.5	M 33	(3.5)	330	4		4		4		4		4		4
200	50	45				28	22	32	M 36	(4)	360	4		4		4		4		4		4
200	50	45				32	24	35	M 39	(4)	390	4		4		4		4		4		4
200	56	50				32	24	37.5	M 42	(4.5)	420	4		4		4		4		4		4
220	58	50				36	29	40.5	M 45	(4.5)	450	4		4		4		4		4		4
250	65	55				36	29	43	M 48	(5)	480	4		4		4		4		4		4
250	65	55				40	32	47	M 52	(5)	520	4		4		4		4		4		4
												■ = Stock				EDP: T184A M 8 = 2000018410080

We reserve the right to make technical changes.
