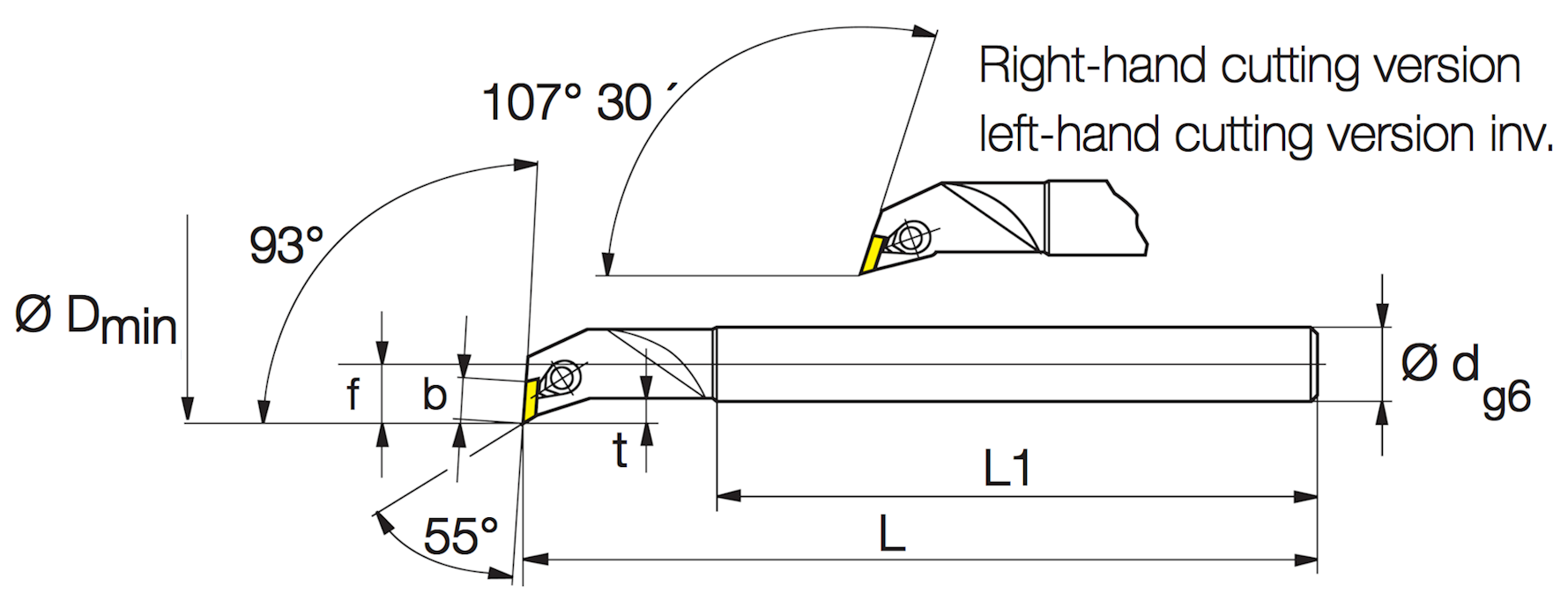

Turning Tools Copying Boring bars starting from 12 mm working diameter |
93° / 107°30' approach angle, 55° corner angle
Shank round version
| Part nr. 20036 |
||||||||||
| Code | Drawing nr. | Ø D | Ø d | f | b | t | L1 | L | Inserts* | |
| 93° approach angle | ||||||||||
| 12,000 | H5506-1000 0793R | 12 | 10 | 7.00 | 6.80 | 2.5 | 75 | 100 | W5506-...L | |
| 16,000 | H5506-1200 0993R | 16 | 12 | 9.50 | 6.80 | 4 | 95 | 125 | ||
| 20,500 | H5506-1600 1293R | 20.5 | 16 | 12.50 | 6.80 | 5 | 110 | 150 | ||
| 107°30' approach angle | ||||||||||
| 12,001 | H5506-1000 0707R | 12 | 10 | 7.00 | 6.80 | 2.5 | 75 | 100 | ||
| 16,001 | H5506-1200 0907R | 16 | 12 | 9.50 | 6.80 | 4 | 95 | 125 | ||
| 20,501 | H5506-1600 1207R | 20.5 | 16 | 12.50 | 6.80 | 5 | 110 | 150 | ||
| H | ||||||||||
| Part nr. 20037 |
||||||||||
| Code | Drawing nr. | Ø D | Ø d | f | b | t | L1 | L | Inserts* | |
| 93° approach angle | ||||||||||
| 12,000 | H5506-1000 0793L | 12 | 10 | 7.00 | 6.80 | 2.5 | 75 | 100 | W5506-...R | |
| 16,000 | H5506-1200 0993L | 16 | 12 | 9.50 | 6.80 | 4 | 95 | 125 | ||
| 20,500 | H5506-1600 1293L | 20.5 | 16 | 12.50 | 6.80 | 5 | 110 | 150 | ||
| 107°30' approach angle | ||||||||||
| 12,001 | H5506-1000 0707L | 12 | 10 | 7.00 | 6.80 | 2.5 | 75 | 100 | ||
| 16,001 | H5506-1200 0907L | 16 | 12 | 9.50 | 6.80 | 4 | 95 | 125 | ||
| 20,501 | H5506-1600 1207L | 20.5 | 16 | 12.50 | 6.80 | 5 | 110 | 150 | ||
| * Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock Ordering example: 1 piece H 5506-1000 0793 R = Ordering number: 20036 12,000 |
||||||||||
We reserve the right to make technical changes.
