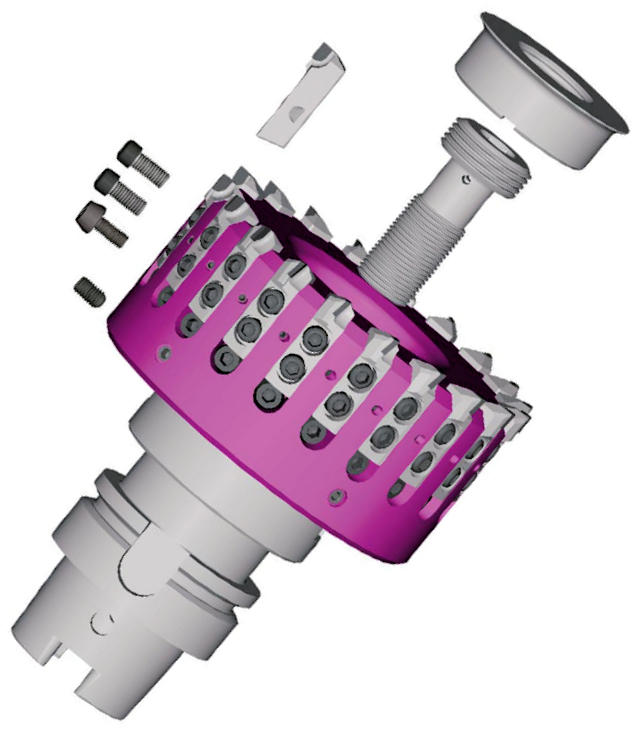

| HAM 40-7670 (HAM 767) 1D-Highspeed-PCD-Diamond Milling Cutter |
Engineering data
• highest possible productivity • optimal surface quality and high tool life • very simple adjustment Delivery Scale:
– mounted and balanced – with corner or face cutting edges HAM 3183-4 / 3182-4 – with tightening screw (with IC) – without cutter adaptor |
 |
| Material |  |
 |
 |
 |
 |
 |
 |
||||
| 40-7670 | very suitable | limited suitable | |||||||||
 cutting materialPCD cutting edge |
 number of teeth - 10 to 48 |
 HAM Standard |
 Type for soft materials |
 Machining Direction |
 Adaptors |
 High Speed Cutting |
| Ø d1 mm |
l1 mm |
Z |
n max. min-1 |
weight ca. kg |
Ø d2 mm |
Ø d1 mm |
l1 mm |
Z |
n max. min-1 |
weight ca. kg |
Ø d2 mm |
|
| 80 | 65 | 10 | 18.000 | 0.9 | 27 | 200 | 65 | 32 | 7.000 | 4.7 | 60 | |
| 100 | 65 | 14 | 16.000 | 1.4 | 32 | 250 | 65 | 40 | 6.000 | 7.4 | 60 | |
| 125 | 65 | 20 | 14.000 | 2.4 | 40 | 315 | 65 | 48 | 4.000 | 11.4 | 60 | |
| 160 | 65 | 24 | 8.000 | 3.4 | 40 |
| HAM 40-7000 (HAM 3182) 1D-Diamond cutting insert 75° • PCD-tipped • for face milling (75°)
|
 |
||||
| HAM 40-7020 (HAM 3183) 1D-Diamond cutting insert 90° • PCD-tipped • for corner milling (90°)
|
We reserve the right to make technical changes.
