Ferg Threading Taps UNC A160

Threading Taps
ISO Metric fine thread DIN 13

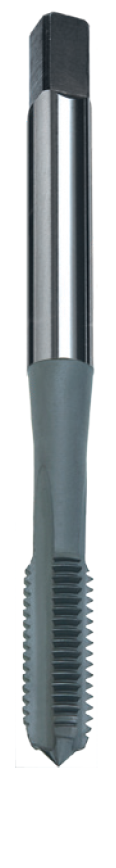

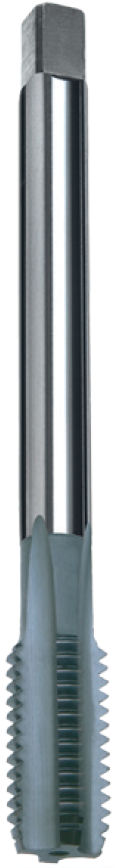

Grey cast iron										High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 A160A 2020016012	DIN 376 A160 2520016012
										HOLE		≤ 3 x d₁ Blind and through hole
										Chamfer lead acc. to DIN 2197		C = 2.5xP
										LIMIT		2BX
										COATING		TiAlN coating (Titanium Aluminium Nitride)
										DIN		≈ 371	≈ 376
										ORDER No. EDP = Nr.+ ★		≈ DIN 371 2020016012* A160A
l₁ mm	l₂ mm	mm	l₃ mm	≈ DIN 371		≈ DIN 376		mm	d₁ - P		★	≈ DIN 376 2520016012* A160
l₁ mm	l₂ mm	mm	l₃ mm	d₂ mm	a mm	d₂ mm	a mm	mm	d₁ - P		★	≈ DIN 376 2520016012* A160
												Z
40	8	8	-	2.5	2.1			1.5	No. 1 - 64 UNC		001	3
45	9	9	-	2.8	2.1			1.8	No. 2 - 56 UNC		002	3
50	9	9	-	2.8	2.1			2.05	No. 3 - 48 UNC		003	3
56	11	5	16	3.5	2.7			2.25	No. 4 - 40 UNC		004	3
56	11	5	16	3.5	2.7			2.6	No. 5 - 40 UNC		005	3
56	12	6	17	4	3			2.75	No. 6 - 32 UNC		006	3
63	13	8	19	4.5	3.4			3.4	No. 8 - 32 UNC		008	3
70	15	8	25	6	4.9			3.8	No.10 - 24 UNC		010	3
80	16	9	30	6	4.9			4.5	No.12 - 24 UNC		012	3
80	17	10	30	7	5.5	4.5	3.4	5.1	1/4 - 20 UNC		025	4 ■
90	20	12	35	8	6.2	6	4.9	6.5	5/16 - 18 UNC		031	4 ■
100	22	12	39	9	7	7	5.5	8	3/8 - 16 UNC		037	4 ■
100	22	14				8	6.2	9.4	7/16 - 14 UNC		043	4 ■
110	24	16				9	7	10.75	1/2 - 13 UNC		050	4 ■
110	26	20				11	9	12.2	9/16 - 12 UNC		056	4
110	27	20				12	9	13.5	5/8 - 11 UNC		062	4 ■
125	30	25				14	11	16.5	3/4 - 10 UNC		075	4 ■
140	32	28				18	14.5	19.5	7/8 - 9 UNC		087	4
160	36	30				18	14.5	22.25	1 - 8 UNC		100	4
180	40	35				22	18	25	1 1/8 - 7 UNC		112	4
180	40	35				22	18	28.25	1 1/4 - 7 UNC		125	4
200	50	45				28	22	30.75	1 3/8 - 6 UNC		137	4
200	50	45				28	22	34	1 1/2 - 6 UNC		150	4
220	58	58				36	29	39.5	1 3/4 - 5 UNC		175	4
250	65	65				40	32	45	2 - 4.5 UNC		200	4
				■ = Stock				EDP: A160 1/2-13 UNC = 2520016012050

We reserve the right to make technical changes.
