Röhm F-SENSO 2

Clamping Force Measurement Device
F-SENSO 2 Clamping Force Measurement Device

APPLICATION
The F-SENSO 2 is a modular system for measuring the clamping force of clamping devices. It is used in the workshop, production area or laboratory to check the clamping force before and after a maintenance or repair operation of the clamping device as well as to check the clamping system in the machine tool.

TYPE
The F-SENSO 2 consists of a Senso module and a supplementary module, which varies depending on the application.
F-SENSO 2 Chuck modules:
for measuring the clamping force in lathe chucks (manual and power-operated) and vices.
F-SENSO 2 HSK modules:
for measuring the pull-in force of HSK clamping sets.
F-SENSO 2 SPK modules:
for measuring the pull-in force of clamping heads.

CUSTOMER BENEFITS
» Modular system: one Senso module for all add-on modules
» Measurement: static or under speed
» Wireless transmission of measurement data and display of measurement results on the optional tablet PC

One Senso module for all measuring tasks

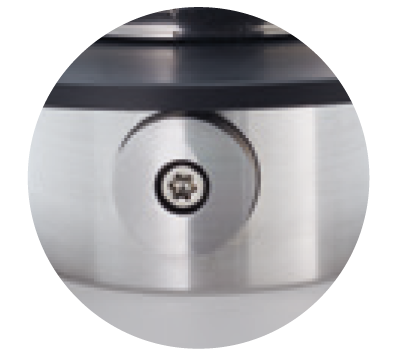

The F-SENSO 2 has a modular design. The Senso module included in the case contains all electronic components for data processing and wireless data transmission. The Senso module can, therefore, be used for all measuring tasks. All you need is a Senso module and the appropriate add-on module for the spective measuring task. The Senso module is then screwed onto the the respective add-on module using 3 screws.

Configuration: Two steps to your desired set

The right F-SENSO 2 set for you can be configured in just two steps as follows:
1. Selection of the appropriate configuration and
2. Selection of the desired type and size of the add-on module

First step: Selection of the appropriate design

There are two configurations to choose from:
Configuration 1 with ID no. 1414057 contains a tablet PC.
Configuration 2 with ID no. 1414056 does not contain a tablet PC.

This is intended for customers who are not allowed to use third-party end devices due to existing company guidelines or who already own an end device. Each version contains a USB stick with the corresponding software for operating the F-SENSO 2.

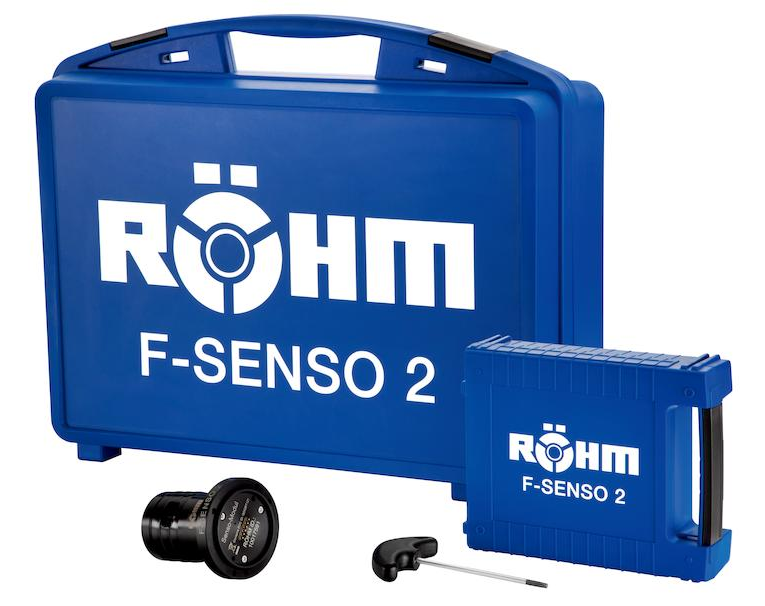

The two versions are supplied in a Röhm case and are made up as follows:


	Scope of delivery of variant 1¹⁾ (ID No. 1414057)
	1. Senso Module with charging cable
	2. Speed meter
	3. Tablet PC with charging cable
	4. Torx wrench with 3x Torx screws
	5. Large case with foam inserts


	Scope of delivery of variant 2¹⁾ (ID No. 1414056)
	1. Senso Module with charging cable
	2. Speed meter
	3. Torx wrench with 3x Torx screws
	4. Large case with foam inserts
	5. Small case with foam inserts

1) Also included in the set: Test report of the measuring module, instructions: F-SENSO 2,
instructions: Quality card, Declaration of Conformity, laptop warranty card (only in configuration 1)

Second step: Selection of the desired type and size of the add-on module

In the second step, you can now determine a suitable add-on module in the required size.
Depending on your application requirements, you can choose between the Chuck, HSK and SPK add-on modules.

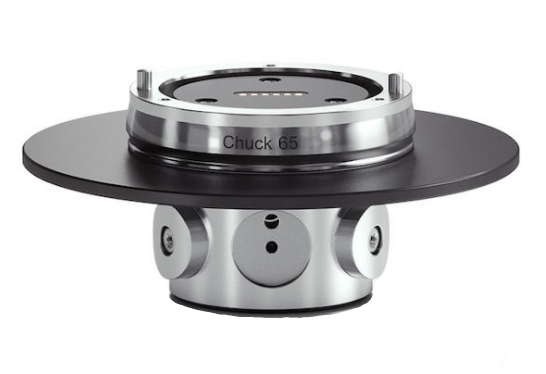

F-SENSO 2 Chuck add-on module (external clamping) in sizes 32 and 65
Item no.	10016798	1001679
Size	32	65
Clamping diameter	32	65
Measuring range, 3 measuring points kN	0-140	0-225
Measuring range, 2 measuring points kN	0-90	0-150
Max. speed rpm	8,000	6,000
Hard-shell case with foam insert	x	x
F-SENSO 2 add-on module	32	65
Service pass	x	x

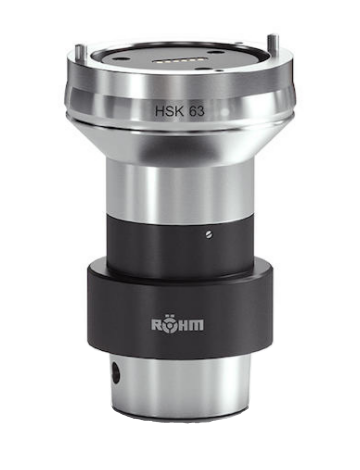

F-SENSO 2 HSK add-on module (pull-in force measurement) in sizes 40, 50, 63 and 100
Item no.	10016800	10016801	10016802	10016803
Size	40	50	63	100
Measuring range, axial [kN]	0-20	0-20	0-50	0-90
Hard-shell case with foam insert	x	x	x	x
F-SENSO 2 add-on module	40	50	63	100
Service pass	x	x	x	x

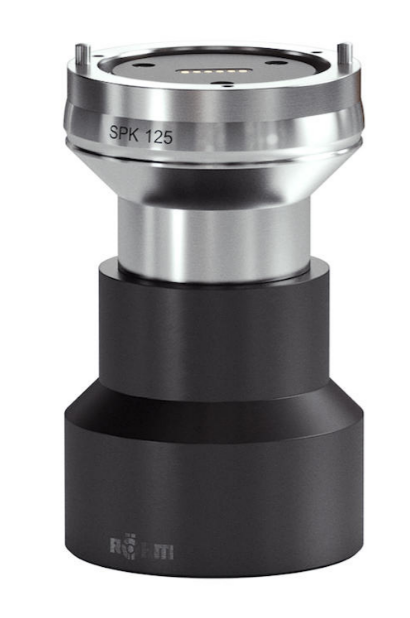

F-SENSO 2 SPK add-on module (pull-in force measurement) in sizes 125 and 140
Item no.	1414048	1414049
Size	125	140
Measuring range, axial [kN]	0-50	0-520
Hard-shell case with foam insert	x	x
F-SENSO 2 add-on module	125	140
Service pass	x	x

Accessories F-SENSO 2

Measuring bolts

Id.-No.	10016898	10016804	10016805	10016806	10016899	10016807	10016808	10016809	10016810
Diameter	32	32	42	52	65	65	80	100	120
F-SENSO 2 Module Chuck 32	x	x	x	x	x
F-SENSO 2 Module Chuck 65						x	x	x	x
2-point clamping force gauge	x					x	x	x	x
3-point clamping force gauge		x	x	x	x	x	x	x	x

We reserve the right to make technical changes.
