Röhm Drilling Machine Vices DPV

Drilling Machine Vices
DPV

APPLICATION
For securely clamping workpieces on drills and measuring machines.

TYPE
Clamping system mechanical , manually operated.
Standard version.

TECHNICAL FEATURES
- Solid and handy version
- Body made out of cast metal
- Movable jaw, guided on side
- Solid clamping jaw with three vertical prisms and one horizontal prism
- Both jaws with support surface for clamping flat workpieces
- Jaws and spindle gunmetal-finished
- Long mounting slots

CUSTOMER BENEFITS
» Entire clamping range within reach by turning
» Constant design length, spindle moves protected in the handle
» The thread spindle is covered by a protecting sleeve

A12

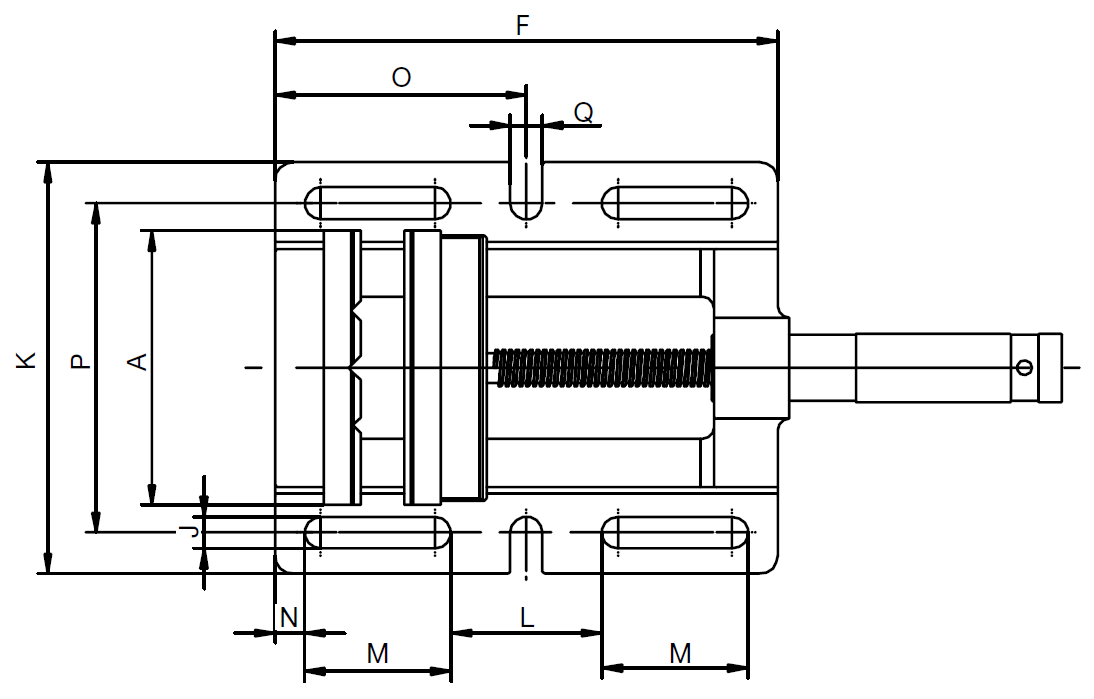

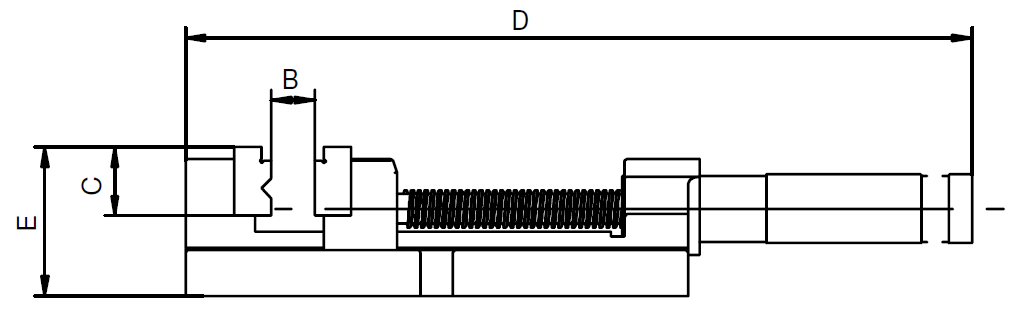

DPV, with V-jaw and normal jaw SBO

Item No.	863421	863422	863423	1132597
Size	1	2	3	4
Jaw width A mm	80	100	120	150
Clamping capacity B mm	70	92	110	125
Jaw height C mm	30	30	30	30
Total length D mm	234	272	345	379
Total height E mm	58	63.5	63.5	65
Total height F mm	154	175	225	240
Total height J mm	13	14	14	14
Total height K mm	142	152	180	200
Total height L mm	46	50	66	57
Total height M mm	85	92	110	120
Total height N mm	17	18	13	21
Total height O mm	85	92	110	120
Weight kg	3.6	4.3	6.3	6.7

Accessories BMS

A37

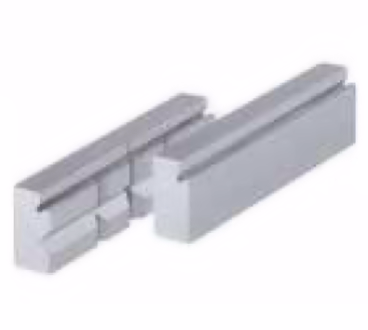

V-jaw and normal jaw SBO, soft and gunmetal-finished with work support for DPV

Item no.	Scope of delivery	Size	Width mm
1128341	set	1	85
1128342	set	2	100
1128344¹⁾	set	2	100
1128343	set	3	120

¹⁾ Only for DPV 3-W

We reserve the right to make technical changes.
