   power operated |

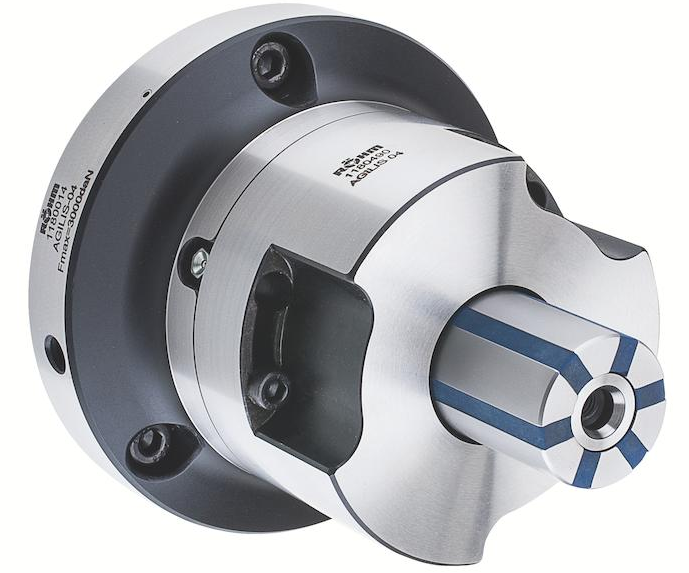

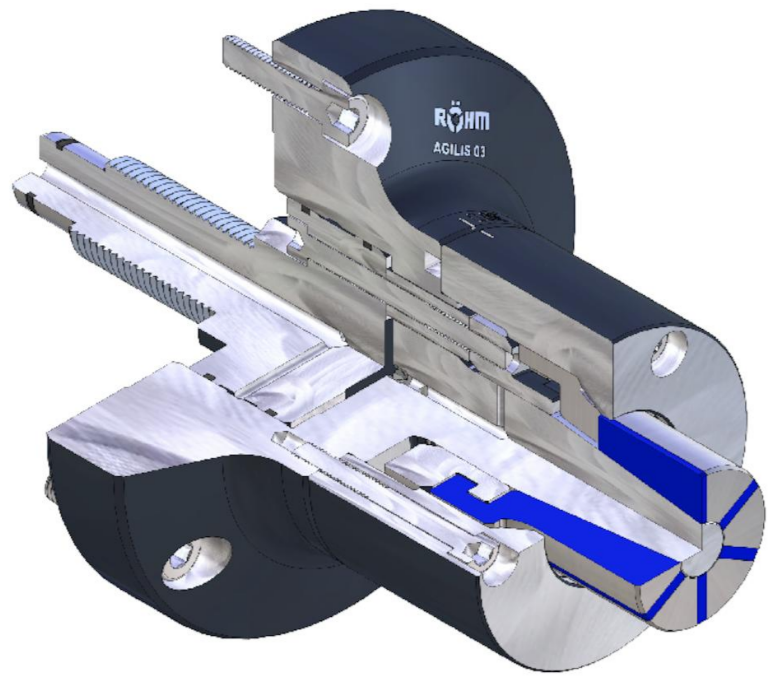

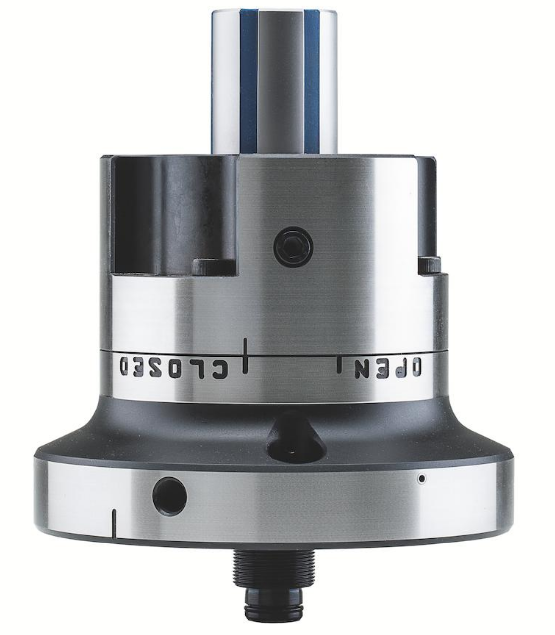

Segment Clamping Mandrel AGILIS - for short clamping lengths, with axial tightening   |
APPLICATION Internal clamping of round workpieces. Turning, milling, grinding and toothing operations, as well as for balancing and measuring. Suitable for short clamping lengths and very small clamping diameters starting from 10 mm. TYPE Force-actuated. TECHNICAL FEATURES - Manual lubrication - Air sensing prepared CUSTOMER BENEFITS » High concentricity, axial run-out and repeatability |
 |
| » Short setup and non-productive times thanks to great expansion of the segment sleeves » Vibration damping due to high vulcanized rubber component of the clamping sleeves » Sturdy clamping of the workpiece thanks to axial tension against the workpiece stop » Fast change thanks to bayonet catch |
We reserve the right to make technical changes.
