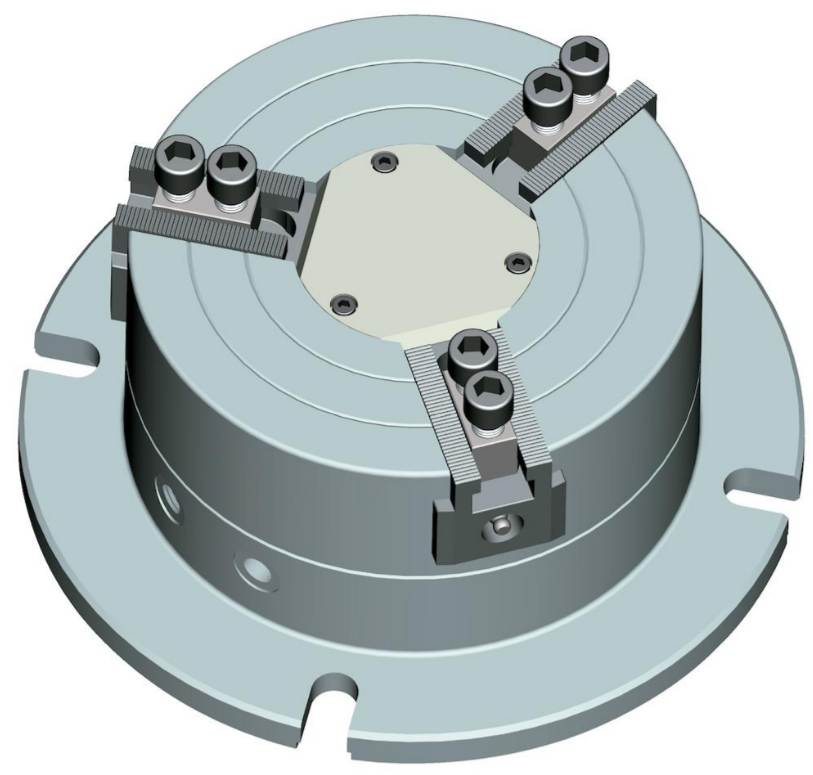

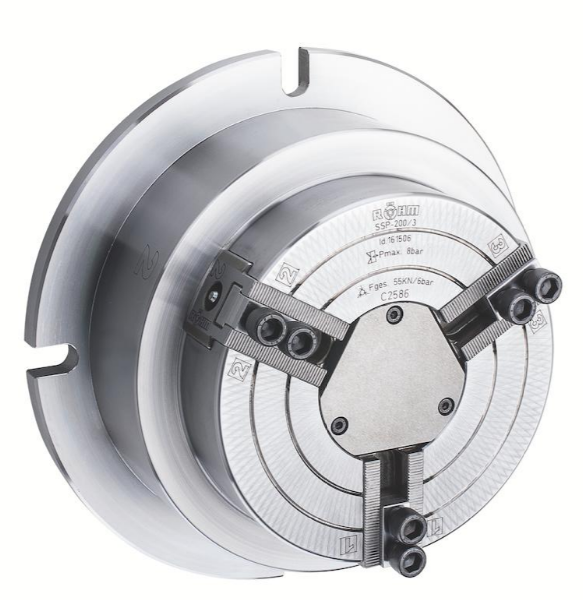

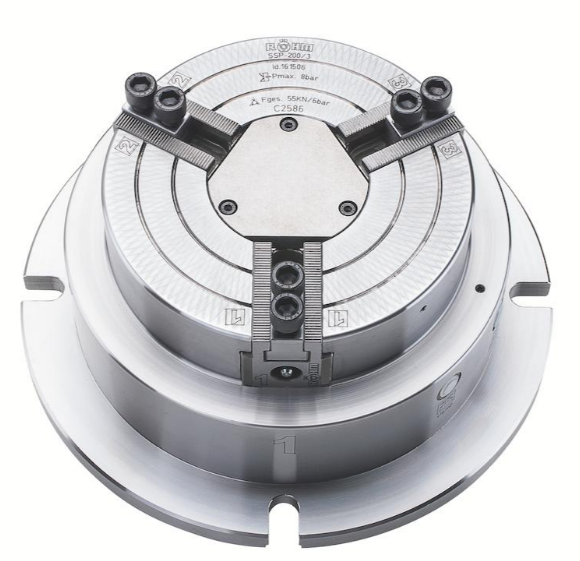

Röhm Stationary Power Chucks SSP

Stationary Power Chucks
SSP

APPLICATION
For stationary centric clamping of workpieces on milling machines or machining centers.

TYPE

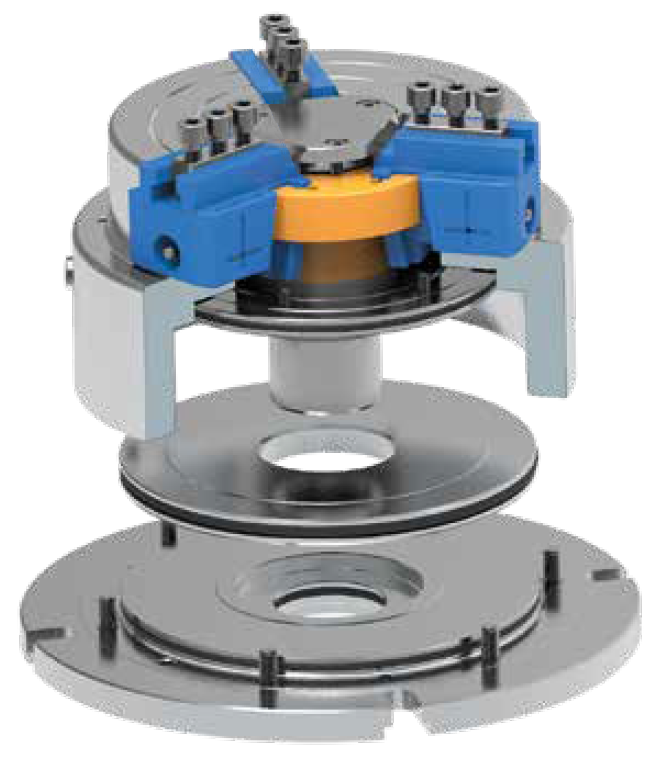

Clamping system consisting of a 3-jaw chuck, including an integrated pneumatic cylinder.
Serration 90°.

TECHNICAL FEATURES
- Wedge hook system with pneumatic actuation
- Clamping force can be regulated by changing the pressure

CUSTOMER BENEFITS
» Compact design

» Large variety of applications is possible by using different clamping jaws
» Centric clamping of round and angular workpieces
» High repeatability thanks to sturdy chuck construction and constant clamping force at same pressure
» Purge air connection possible to prevent contamination

Note: Hydraulic actuation on request

C15

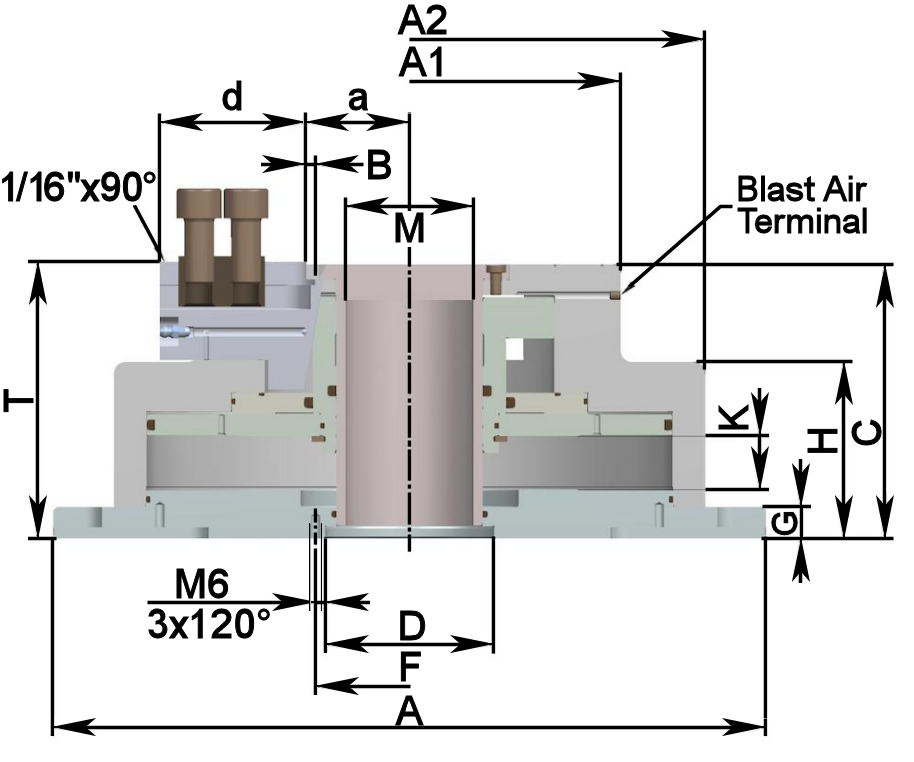

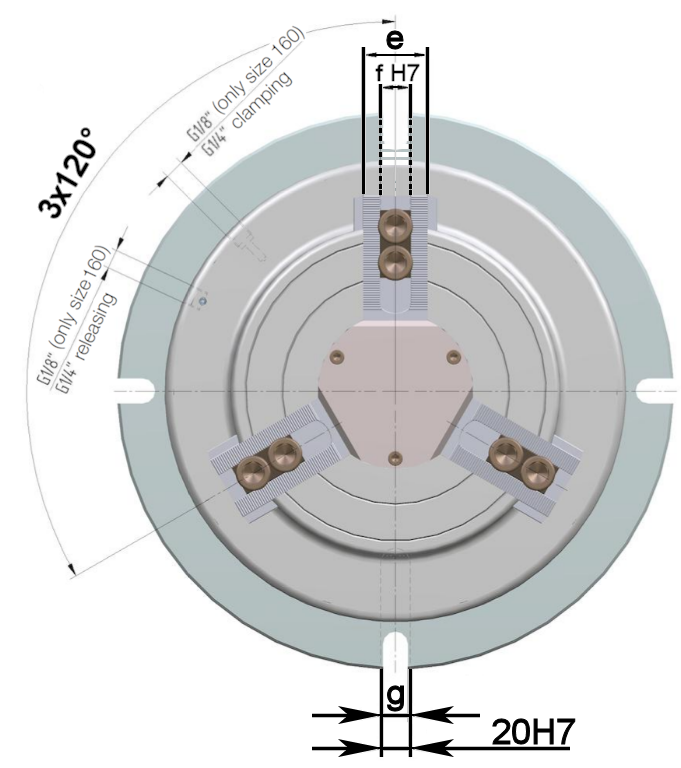

Stationary power chucks SSP, air operated 3-jaw chucks, without through-hole, serration 1/16“ x 90°

Item No.	161505	161506▲	161507▲	161508
Size	160	200	250	315
Number of jaws	3	3	3	3
A mm	260	320	380	415
A1 mm	178	205	255	320
A2 mm	210	255	315	350
Jaw travel B mm	4.2	4.2	5	5
C mm	130.5	134	146	156.5
Mount D^H6	55	70	90	110
D	M8	M12	M16	M16
F mm	65	80	100	120
G mm	15	17	17	21.5
H mm	84.5	86	94	104.5
Wedge stroke K mm	24	23.8	28.4	28.4
Possible through-hole M mm	38	52	68	90
T mm	131.5	135.5	147.5	158
U	M8	M12	M16	M16
a min.	31.8	41.2	50	61.5
a max.	36	45.4	55	66.5
c mm	15	19	25	25
d mm	54.5	62	78	99
e mm	32	36	44	44
f^H7 mm	12	17	21	21
g mm	13	17	17	17
Piston area cm²	209	323	532	654
Min. operating pressure bar	2	2	2	2
Max. operating pressure bar	8	8	8	8
Max. total clamping force at working pressure - External clamping kN	36 (at 6 bar)	55 (at 6 bar)	90 (at 6 bar)	111 (at 6 bar)
Max. total clamping force at working pressure - Internal clamping kN	38 (at 6 bar)	60 (at 5 bar)	96 (at 6 bar)	118 (at 6 bar)
Weight without jaws approx. kg	25	34	54	65

▲ - on request

Jaws SSP

C21

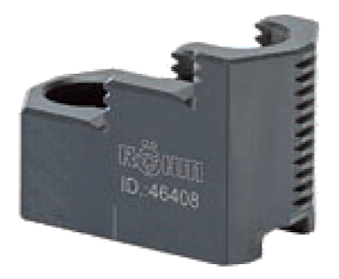

Reversible top jaws, 3-jaw set, hardened serration 90° - material: 16MnCr5

Item no.	Size	Jaw length mm	Jaw height mm	Jaw width mm	Serration
046404	160	56	37.5	26	1/16‘‘ x 90°
118522	200	75	49	36	1/16‘‘ x 90°
046414	250/315	103.5	58	50	1/16‘‘ x 90°

Additionally or later applied, hardened jaws must be ground out in the chuck.

C21

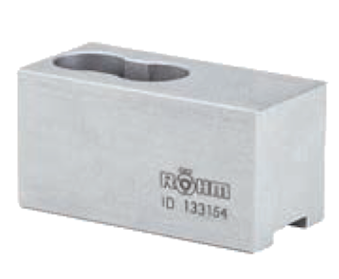

Soft top jaws, 3-jaw set, can be hardened serration 90° - material: 16MnCr5

Item no.	Size	Jaw length mm	Jaw height mm	Jaw width mm	Serration
046403	160	55	38	26.5	1/16‘‘ x 90°
133153	200	75	53	36.5	1/16‘‘ x 90°
133154	250	95	54.5	45	1/16‘‘ x 90°

C21
Claw-type jaws, 1 piece, hardened serration 90° - width of the groove 12

Item no.	Size	Jaw length mm	Jaw height mm	Claw length mm	Serration
144320	160	66	38	52	1/16‘‘ x 90°
144321	160	56	38	34	1/16‘‘ x 90°
144322	160	66	38	25	1/16‘‘ x 90°

C21

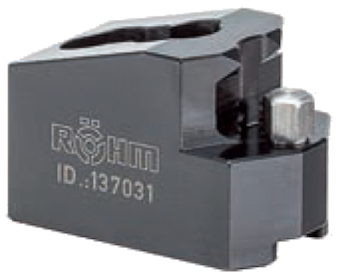

Claw-type jaws, 1 piece, hardened serration 90° - width of the groove 17

Item no.	Size	Jaw length mm	Jaw height mm	Claw length mm	Serration
137031	200	67	45	53	1/16‘‘ x 90°
137032	200	65	45	46	1/16‘‘ x 90°
137039	200	55	45	40	1/16‘‘ x 90°
137034	200	50	45	31	1/16‘‘ x 90°
137035	200	55	45	27	1/16‘‘ x 90°
137036	200	65	45	19	1/16‘‘ x 90°
137037	200	65	45	26	1/16‘‘ x 90°
137038	200	55	45	24	1/16‘‘ x 90°
137033	200	55	45	39	1/16‘‘ x 90°

C21
Claw-type jaws, 1 piece, hardened serration 90° - width of the groove 21

Item no.	Size	Jaw length mm	Jaw height mm	Claw length mm	Serration
137041	250/315	95	50	80	1/16‘‘ x 90°
137042	250/315	75	50	60	1/16‘‘ x 90°
137043	250/315	60	50	43	1/16‘‘ x 90°
137044	250/315	70	50	37	1/16‘‘ x 90°
137045	250/315	95	50	25	1/16‘‘ x 90°
137046	250/315	80	50	30	1/16‘‘ x 90°

Accessories SSP

C15

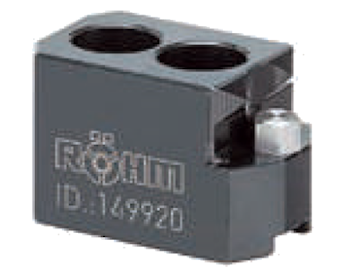

Extended T-nuts With screw

Item no.	Chuck Size	Contents of delivery	D mm	E	G mm
1305178▲	160	piece	12	M 8 x 25	2 x 15
1305179	200	piece	17	M 12 x 30	19
1305180▲	250/315	piece	21	M 16 x 35	25

▲ - on request

We reserve the right to make technical changes.
