Ferg Threading Taps M 109,110,150A,151A

Threading Taps
ISO Metric coarse thread DIN 13

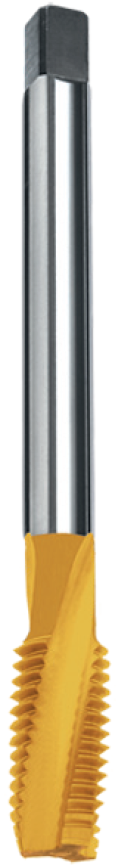

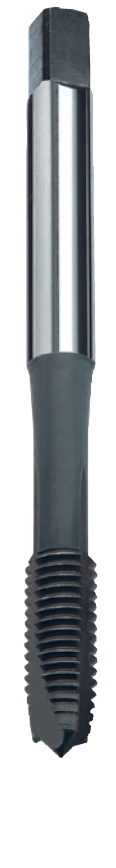

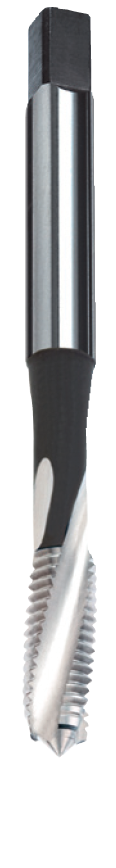

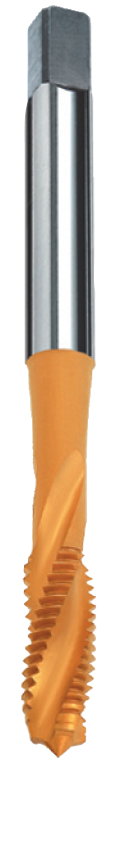

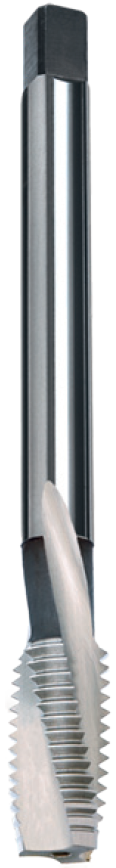

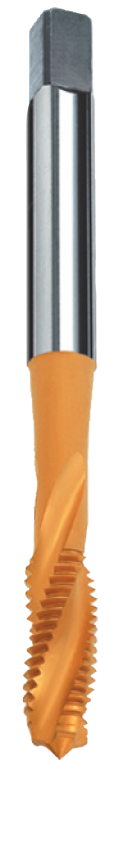

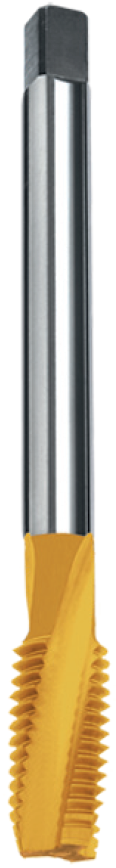

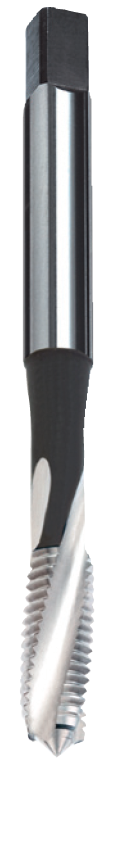

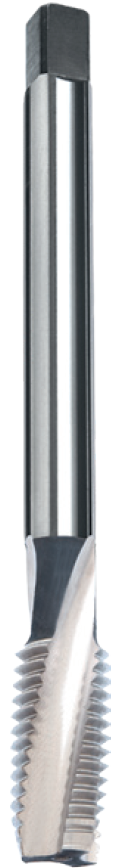

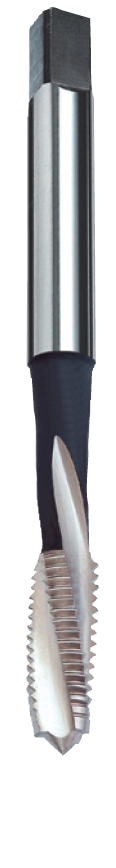

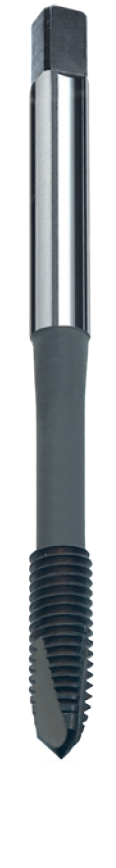

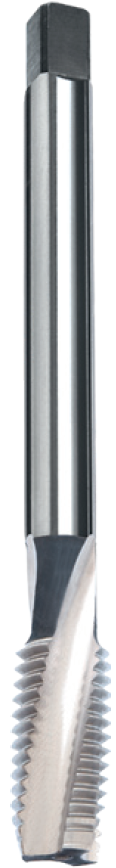

Steels with good machinability Rm < 750 N/mm² (101,500 PSI) Nodular graphite, Malleable cast iron										High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 150A 2000015005	DIN 371 151A 2000015105	DIN 371 109A 2000010900	DIN 376 109 2500010900	DIN 371 110A 2000011000	DIN 376 110 2500011000	DIN 371 110A 2000211000	DIN 376 110 2500211000	DIN 371 T110A 2000011010	DIN 376 T110 2500011010	DIN 371 T110A 2000211010	DIN 376 T110 2500211010
										HOLE		≤ 0.5 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Blind hole		≤ 2 x d₁ Blind hole		≤ 2 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		B = 4xP		D = 4xP		D = 3.5xP		D = 3.5xP		D = 3.5xP		D = 3.5xP
										LIMIT		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 3 (6G)		ISO 2 (6H)		ISO 3 (6G)
										COATING		Nitride surface treatment)		Bright (without Coating or without Surface treatment)		Bright (without Coating or without Surface treatment)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiN coating (Titanium nitride)
										DIN		371	371	371	376	371	376	371	376	371	376	371	376
										ORDER No. EDP = Nr.+ ★		DIN 371 2000015005* 150A		DIN 371 2000010900* 109A		DIN 371 2000011000* 110A		DIN 371 2000211000* 110A		DIN 371 2000011010* T110A		DIN 371 2000211010* T110A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 371 2000015105* 151A		DIN 376 2500010900* 109		DIN 376 2500011000* 110		DIN 376 2500211000* 110		DIN 376 2500011010* T110		DIN 376 2500211010* T110
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z		Z
40	6	6	-	2.5	2.1			0.75	M 1*	(0.25)	010	2		3		3		3		3		3
40	6	6	-	2.5	2.1			0.85	M 1.1*	(0.25)	011	2		3		3		3		3		3
40	6	6	-	2.5	2.1			0.95	M 1.2*	(0.25)	012	2		3		3		3		3		3
40	7	7	-	2.5	2.1			1.1	M 1.4*	(0.3)	014	2		3		3		3		3		3
40	8	8	-	2.5	2.1			1.25	M 1.6	(0.35)	016	2		3		3		3		3		3
40	8	8	-	2.5	2.1			1.3	M 1.7	(0.35)	017	2		3		3		3		3		3
40	8	8	-	2.5	2.1			1.45	M 1.8	(0.35)	018	2		3		3		3		3		3
45	9	9	-	2.8	2.1			1.6	M 2	(0.4)	020	2 ■		3		3 ■		3		3		3
45	9	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022	2 ■		3		3 ■		3		3		3
45	9	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023	2 ■		3		3 ■		3		3		3
50	9	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	2 ■		3		3 ■		3		3		3
50	9	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026	2 ■		3		3 ■		3		3		3
56	11	5	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	2 ■ ■		3 ■		3 ■		3 ■		3 ■		3 ■
56	12	6	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	2 ■ ■		3		3 ■		3		3		3
63	13	7	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	2 ■ ■		3 ■		3 ■		3 ■		3 ■		3 ■
70	14	7	22	6	4.9	3.5	2.7	3.75	M 4.5	(0.75)	045	2		3		3		3		3		3
70	15	8	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	2 ■ ■		3 ■		3 ■		3 ■		3 ■		3 ■
80	17	10	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■ ■		3 ■		3 ■ ■		3 ■		3 ■		3 ■
80	17	10	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3		3		3 ■		3		3		3
90	20	12	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■		3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■
90	20	12	35	9	7	7	5.5	7.8	M 9	(1.25)	090	3		3		3 ■		3		3		3
100	22	15	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■		3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■
110	24	16				9	7	10.2	M 12	(1.75)	120			3 ■		3 ■		3 ■		3 ■		3 ■
110	26	20				11	9	12	M 14	(2)	140			3 ■		3 ■		3 ■		3 ■		3 ■
110	27	20				12	9	14	M 16	(2)	160			3 ■		3 ■		3 ■		3 ■		4 ■
125	30	25				14	11	15.5	M 18	(2.5)	180			4		4 ■		4 ■		4		4
140	32	25				16	12	17.5	M 20	(2.5)	200			4		4 ■		4		4 ■		4
140	32	25				18	14.5	19.5	M 22	(2.5)	220			4		4 ■		4		4		4
160	34	30				18	14.5	21	M 24	(3)	240			4		4 ■		4		4 ■		4
160	36	30				20	16	24	M 27	(3)	270			4		4 ■		4		4		4
180	40	35				22	18	26.5	M 30	(3.5)	300			4		4 ■		4		4		4
180	40	40				25	20	29.5	M 33	(3.5)	330			4		4 ■		4		4		4
200	50	45				28	22	32	M 36	(4)	360			4		4 ■		4		4		4
200	50	45				32	24	35	M 39	(4)	390			4		4		4		4		4
200	56	50				32	24	37.5	M 42	(4.5)	420			4		4		4		4		4
220	58	50				36	29	40.5	M 45	(4.5)	450			4		4		4		4		4
250	65	55				36	29	43	M 48	(5)	480			4		4		4		4		4
250	65	55				40	32	47	M 52	(5)	520			4		4		4		4		4
* = ISO 1 (4H)												■ = Stock				EDP: 105A M 8 = 2000010500080

We reserve the right to make technical changes.
