Heule VEX Combi 5.0-11.0 mm without Internal Cooling

COFA

DL2

COFA-X

SNAP

DEFA

BSF

SOLO

GH-K

VEX

VEX 5.0-11.0 mm Bore 1xd

VEX 5.0-11.0 mm Bore 2xd

VEX 6.0-11.0 mm Bore 1xd

VEX 6.0-11.0 mm Bore 2xd

Tool Table
													Tool without Drill Bit without Blade

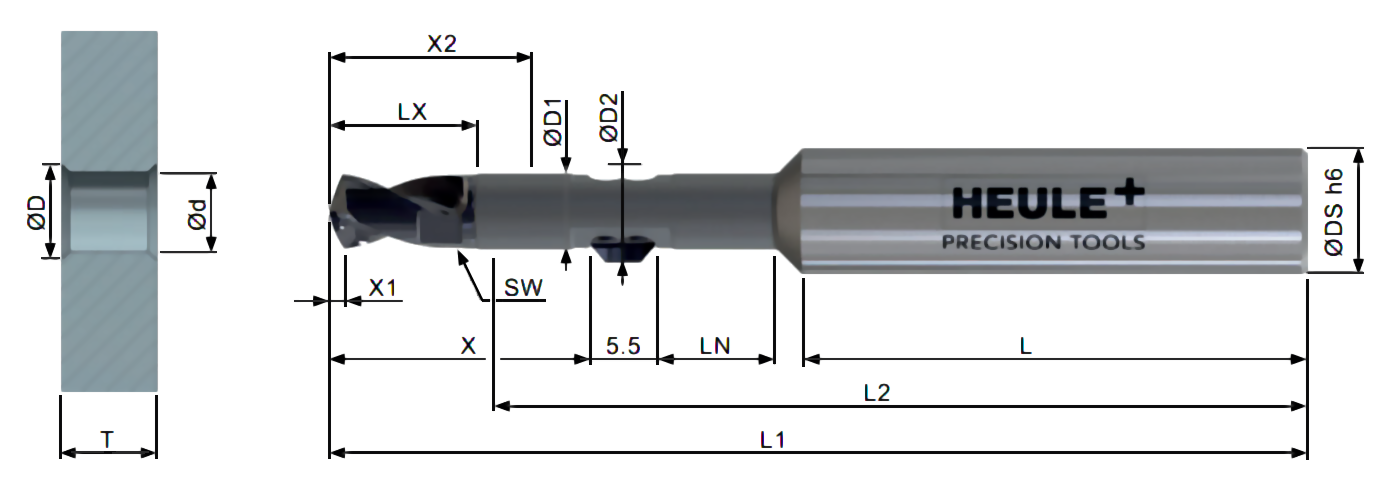

Bore range Ød	Bore depth T	Series	ØD	ØD1	ØD2	ØDS	L	L1	L2	LN	X	X1	Part No.
5.00-5.49	5.5	B	Chamfer-Ø D max.= Bore-Ø d min. + 2.0 mm	4.9	ØD2 = ØD + 0.6 mm	8.0	36.0	70.5	60.3	8.1	18.9	1.0	GH-Q-O-4000
5.50-5.99	6.0	B		5.4		8.0	36.0	71.6	60.5	8.6	19.8	1.1	GH-Q-O-4001
6.00-6.49	6.5	C		5.9		10.0	40.0	77.7	66.0	9.1	20.6	1.2	GH-Q-O-4002
6.50-6.99	7.0	C		6.4		10.0	40.0	78.9	66.2	9.6	21.6	1.3	GH-Q-O-4003
7.00-7.49	7.5	D		6.9		10.0	40.0	81.4	67.8	10.1	23.8	1.4	GH-Q-O-4004
7.50-7.99	8.0	D		7.4		10.0	40.0	82.4	68.0	10.6	24.6	1.5	GH-Q-O-4005
8.00-8.49	8.5	D		7.9		12.0	45.0	89.5	74.3	11.1	25.4	1.6	GH-Q-O-4006
8.50-8.99	9.0	E		8.4		12.0	45.0	90.9	74.8	11.6	26.6	1.7	GH-Q-O-4007
9.00-9.49	9.5	E		8.9		12.0	45.0	91.9	75.0	12.1	27.4	1.8	GH-Q-O-4008
9.50-9.99	10.0	E		9.4		12.0	45.0	93.1	75.3	12.6	28.3	1.9	GH-Q-O-4009
10.00-10.49	10.5	E		9.9		14.0	45.0	95.1	76.5	13.1	29.1	1.9	GH-Q-O-4010
10.50-10.99	11.0	F		10.4		14.0	45.0	96.4	77.3	13.6	30.1	2.1	GH-Q-O-4011
11.00-11.49	11.5	F		10.9		14.0	45.0	97.4	77.5	14.1	30.9	2.1	GH-Q-O-4012
ORDERING INFORMATION: For tools and tool bodies with Weldon (-HB) or Whistle-Notch-Shank (-HE), please add -HB or -HE at the end of the part number (Order example: GH-Q-O-4000-HB).

Cooling

  Through tool coolant is necessary for the optimal swarf evacuation.
  Coolant pressure for max. 2xd 8 bar at least. Flow rate 5 to 20 litre/min.
  Use external cooling only up to max. 1xd and with reduced feed rate.

Spare Parts
Pos.	Description	Part No.
1	Tool body	see below
2	Control bolt Ø1.2	GH-Q-E-0008
3	Pressure spring Ø2.35 x Ø0.35 x 30.0	GH-H-F-0019
4	Distance pin Bore range 5.00 - 5.99 Distance pin Bore range 6.00 - 7.99 Distance pin Bore range 8.00 - 11.49	GH-Q-E-0052 GH-Q-E-0043 GH-Q-E-0048
5	Set screw M3x5.0 DIN913 Wrench for Pos. 5¹	GH-H-S-0127 GH-H-S-2101
6	SNAP chamfer blade	see below
7	VEX helical drill bit Torque spanner for Pos. 7¹	see below see below
¹⁾ Fork wrench for Pos. 5 and Pos. 7 to be ordered separately.

Helical Drill Bit
Dimension Table								Helical Drill bit
Bore range Ød	Bore depth T	Series	X1	LX	X2	SW	Ncm	Part No.
5.00-5.49	5.5	B	1.00	10.2	14.7	4.0	170	Refer below for composing the part number
5.50-5.99	6.0	B	1.10	11.1	15.6	4.0	170
6.00-6.49	6.5	C	1.20	11.7	16.2	5.0	250
6.50-6.99	7.0	C	1.30	12.7	17.2	5.0	250
7.00-7.49	7.5	D	1.35	13.6	19.1	6.0	400
7.50-7.99	8.0	D	1.45	14.4	19.9	6.0	400
8.00-8.49	8.5	D	1.55	15.2	20.7	7.0	400
8.50-8.99	9.0	E	1.65	16.1	21.6	7.0	600
9.00-9.49	9.5	E	1.75	16.9	22.4	8.0	600
9.50-9.99	10.0	E	1.85	17.8	23.3	8.0	600
10.00-10.49	10.5	E	1.90	18.6	24.1	9.0	600
10.50-10.99	11.0	F	2.10	19.1	24.6	9.0	600
11.00-11.49	11.5	F	2.20	19.9	25.4	9.0	600

11 Cooling
Without internal coolant		S (from Ø5.0 mm)
With internal coolant		SK (from Ø6.0 mm)
2 Series		3 Bore depth T
Bore range Ø d	Series	1 x d 2
5.00 - 5.99	B	2 x d 4
6.00 - 6.99	C
7.00 - 8.49	D	5 Cutting material
8.50 - 10.49	E	Carbide 1
10.50 - 11.49	F
4444 Bore diameter d
Please insert the bore diameter here. Example: Ø9.50 = 0950 standard per 0.1 mm
6 Coating ¹ ¹⁾Alternative coatings upon request
Coating for alloyed steel, titanium and Inconel A
Coating for aluminium alloys only D

Tool Body

Bore depth 5.0 - 11.5

Tool body for bore depth 1 x d

with internal cooling

without internal cooling

Bore range
Ød

Bore depth
T

Series

Part No.

5.00-5.49

5.5

GH-Q-G-4000

---

5.50-5.99

6.0

GH-Q-G-4001

---

6.00-6.49

6.5

GH-Q-G-4002

GH-Q-G-4022

6.50-6.99

7.0

GH-Q-G-4003

GH-Q-G-4023

7.00-7.49

7.5

GH-Q-G-4004

GH-Q-G-4024

7.50-7.99

8.0

GH-Q-G-4005

GH-Q-G-4025

8.00-8.49

8.5

GH-Q-G-4006

GH-Q-G-4026

8.50-8.99

9.0

GH-Q-G-4007

GH-Q-G-4027

9.00-9.49

9.5

GH-Q-G-4008

GH-Q-G-4028

9.50-9.99

10.0

GH-Q-G-4009

GH-Q-G-4029

10.00-10.49

10.5

GH-Q-G-4010

GH-Q-G-4030

10.50-10.99

11.0

GH-Q-G-4011

GH-Q-G-4031

11.00-11.49

11.5

GH-Q-G-4012

GH-Q-G-4032

SNAP5 Blades GS Geometry 90° for VEX Combi Tools
	Part No. forward and backward cutting		Part No. backward cutting only
Chamfer-Ø¹	Coating A	Coating D	Coating A	Coating D
5.5	GH-Q-M-30204^*	GH-Q-M-30404	GH-Q-M-31204	GH-Q-M-31404
6.0	GH-Q-M-30205^*	GH-Q-M-30405	GH-Q-M-31205	GH-Q-M-31405
6.5	GH-Q-M-30206^*	GH-Q-M-30406	GH-Q-M-31206	GH-Q-M-31406
7.0	GH-Q-M-30207^*	GH-Q-M-30407	GH-Q-M-31207	GH-Q-M-31407
7.5	GH-Q-M-30208^*	GH-Q-M-30408	GH-Q-M-31208	GH-Q-M-31408
8.0	GH-Q-M-30209^*	GH-Q-M-30409	GH-Q-M-31209	GH-Q-M-31409
8.5	GH-Q-M-30210^*	GH-Q-M-30410	GH-Q-M-31210	GH-Q-M-31410
9.0	GH-Q-M-30211^*	GH-Q-M-30411	GH-Q-M-31211	GH-Q-M-31411
9.5	GH-Q-M-30212^*	GH-Q-M-30412	GH-Q-M-31212	GH-Q-M-31412
10.0	GH-Q-M-30213^*	GH-Q-M-30413	GH-Q-M-31213	GH-Q-M-31413
10.5	GH-Q-M-30214^*	GH-Q-M-30414	GH-Q-M-31214	GH-Q-M-31414
11.0	GH-Q-M-30215^*	GH-Q-M-30415	GH-Q-M-31215	GH-Q-M-31415
11.5	GH-Q-M-30216^*	GH-Q-M-30416	GH-Q-M-31216	GH-Q-M-31416
12.0	GH-Q-M-30217^*	GH-Q-M-30417	GH-Q-M-31217	GH-Q-M-31417
12.5	GH-Q-M-30218^*	GH-Q-M-30418	GH-Q-M-31218	GH-Q-M-31418
13.0	GH-Q-M-30219^*	GH-Q-M-30419	GH-Q-M-31219	GH-Q-M-31419
*^) Standard items / Please enquire about stock or delivery times for all non-standard blades. ¹⁾ The indicated dimension is the theoretically possible maximum. Explanations to coatings** A: Coating for steel, titanium, Inconel D: Coating for aluminium alloys only

Setting the Blade Force

The blade force can be adjusted by the set screw (1) in the rear of the shank. The blade force has to be sufficient to extend the blade fully after passing the back end of the bore. This ensures that the blade can work with the necessary cutting performance. The tougher the material, the tougher the spring should be set. The blade force, however, does not influence the chamfer size. Working with the correct blade pressure increases the blade life and improves the chamfer quality. An extremely tough material requires a high spring force.

For this purpose, the springs can be exchanged (SNAP5: GH-H-F-0041, SNAP8 and SNAP12: GH-H-F-0011).

Turning the set screw clockwise increases the blade force (tough steel, Inconel, titanium).
Turning the set screw counter-clockwise reduces the blade force (aluminium).

Adjustment Details Blade Force
Tool	Thread size	Screw-in depth max.	Revolutions (approx.)
SNAP5	M3	6.0 mm	12x

We reserve the right to make technical changes.
