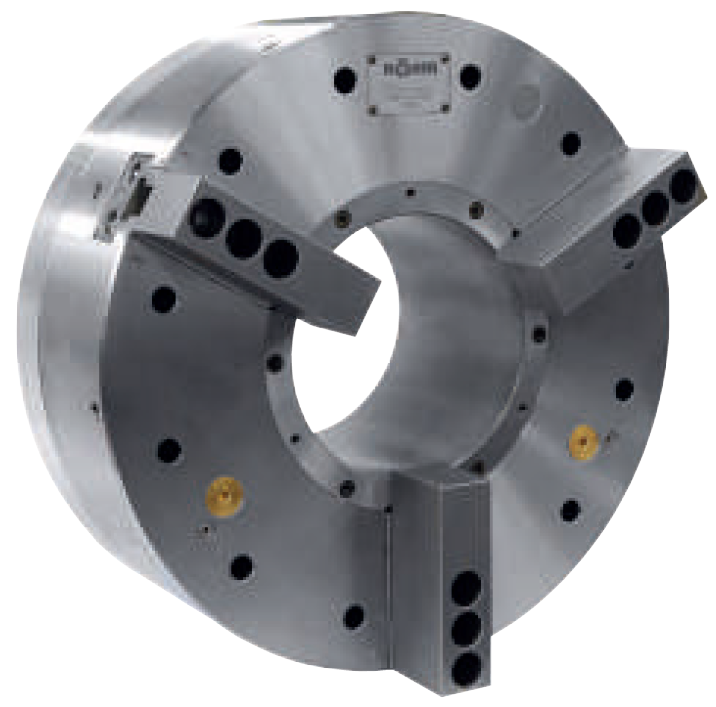

Röhm LVE large

Air-operated Self-contained Chucks
LVE - large through-hole

APPLICATION
Optimal for the end machining of large and long pipes, e.g.
for the oil and gas industry (especially as front and rear chuck).

TYPE
Power chuck with integrated pneumatic cylinder and cylindrical centre mount.
3-jaw version with serration 90°.

TECHNICAL FEATURES
- Clamping and unclamping only when spindle at standstill
- Wedge hook system with integrated clamping cylinder
- Control valves maintain the clamping pressure during machining
- Short clamping cycle thanks to rapid and clamping stoke (optionally)
- Permanent monitoring of the clamping pressure while machining (optionally)

CUSTOMER BENEFITS
» Extra-large through-hole
» Can be easily exchanged with manual clamping chuck
» Compact system dimensions because it is self-contained
» Unobstructed bore through spindle thanks to omission of the draw tube
» Flange and bar machining possible without retrofitting

Note:
Other versions on request: e.g. front-end chucks for compensating clamping, compensating self-contained chucks
and chucks that can be converted from self-centering to compensating.

Included in the scope of delivery:
Chuck, chuck and jaw mounting screws, slot nuts (without top jaws)

We reserve the right to make technical changes.
