Röhm Live Centres H Control

Live Centres
H Control -
Standard design

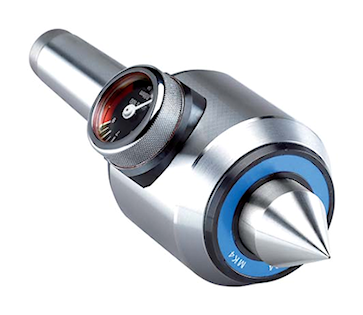

APPLICATION For counter-clamping workpieces on turning and grinding machines. Optimally suited as counter-centre for face drivers. TYPE With pressure display and length compensation. TECHNICAL FEATURES - Body hardened and ground - Tip angle 60°
CUSTOMER BENEFITS » Fast adjustment and check of axial load by means of pressure display » Resilient centre point for safe, deformation-free workpiece clamping » Maximum concentricity deviation of 0.01 mm for maximum precision

A06

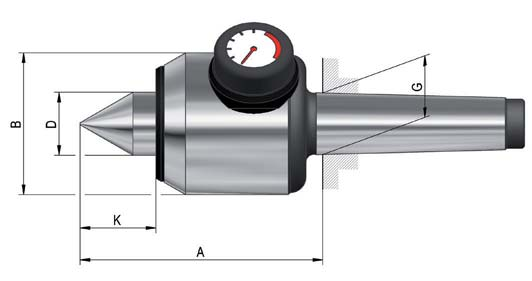

H Control - Standard design, with pressure display and length compensation as counter-centre for face drivers, body hardened and ground - tip angle 60°

Item No.	060798	060874	060906	060915
Mount MT	3	4	5	6
Size	503	504	505	506
A mm	105	123.5	160.5	202
B mm	64	72	95	120
D mm	25	32	40	52
G mm	23.825	31.267	44.399	63.348
K mm	31	38.5	49	59
Spring way max. mm¹⁾	1.6	2	1.8	2.7
Axial load max. N	5500	9000	15000	20000
Weight approx. g	2100	3500	8300	17000
Workpiece weight max. kg	400	800	1600	3200
Concentricity deviation max. mm	0.01	0.01	0.01	0.015
Speed max. min^-1	4000	3500	2500	1800
Spare live centres	009192	009205	009325	009413

¹⁾ At max. axial load

We reserve the right to make technical changes.
