Swarf Preparation

The Problem :

Big losses arise through the disposal
of oily swarf. This is why the recovery
of the oil is an important economic
factor. In addition, the dried swarf can
be further processed as a valuable
raw material.

Our Solution :

Central or local swarf preparation.
Because of their design, continuous
centrifuges can be placed directly
underneath the discharge conveyors
of the processing machines. This
saves space and money.

Fully-automatic swarf systems with
continuous or push centrifuges in
combination with conveyors, lifting-
tilting devices and chip breakers
guarantee economic swarf preparation.

Centrifuges	Continuous Centrifuges			Push Centrifuges
Centrifuges	Scoro Z3/Z3C	Scoro Z4/Z4C	Scoro Z5/Z5C	Hydramax 4	Hydramax 5	Hydramax 6
Drive power kW	2.2	3	4	3	4	5.5
Drum diameter mm	300	400	500	400	500	600
Throughput kg/h
Steel/Stainless Steel	300	700	1500	750	1500	3000
Brass	180	400	800	550	1100	2000
Gray Cast Iron	400	1000	2000	1100	2200	4500
Aluminum	100	280	500	300	550	1000
Grinding Sludge				400	700	1000
*Throughput depends on chip shape and material and therefore fluctuates*

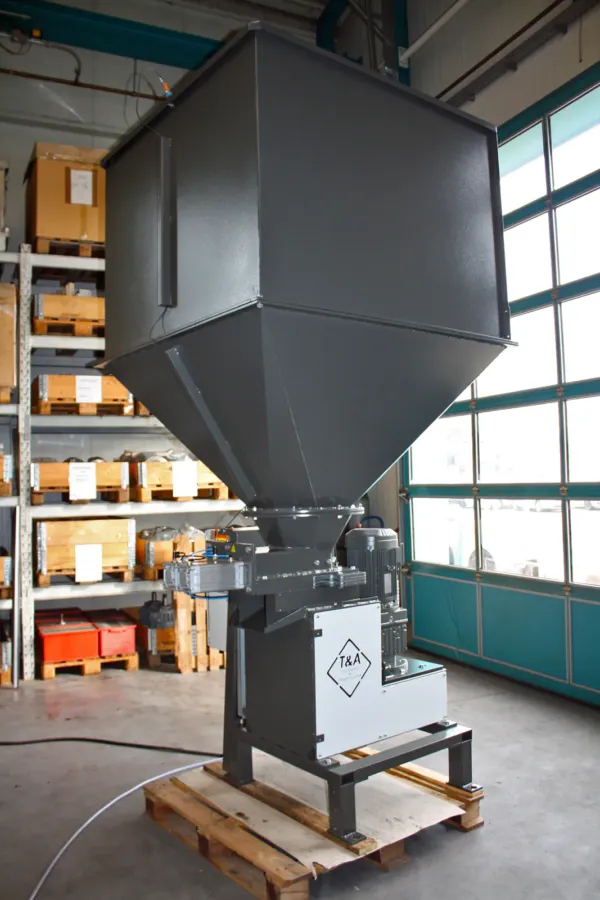

Chip Breaker	V 200	V 400	V 600	V 800
Drive Power, kw	3	4	7.5	11
Throughput kg/h
Steel	200	400	1200	2500
VA	140	250	600	1300
Brass	300	500	1800	3750
Aluminum	70	150	450	900
*Throughput depends on chip shape and material and therefore fluctuates*

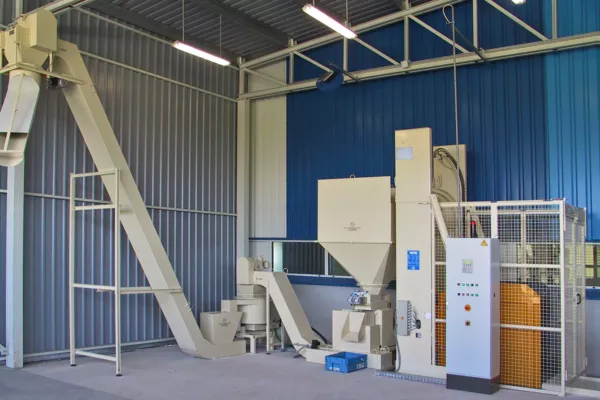

Chip Conveyor	KF 230/380	KF 230/500	KF 300/380	KF 300/500
Drive Power, kw	0.37	0.37	0.37	0.75
Throughput kg/h	as for centrifuges
Conveying Speed	Infinitely variable
*With and without coarse part ejection*

We reserve the right to make technical changes.
