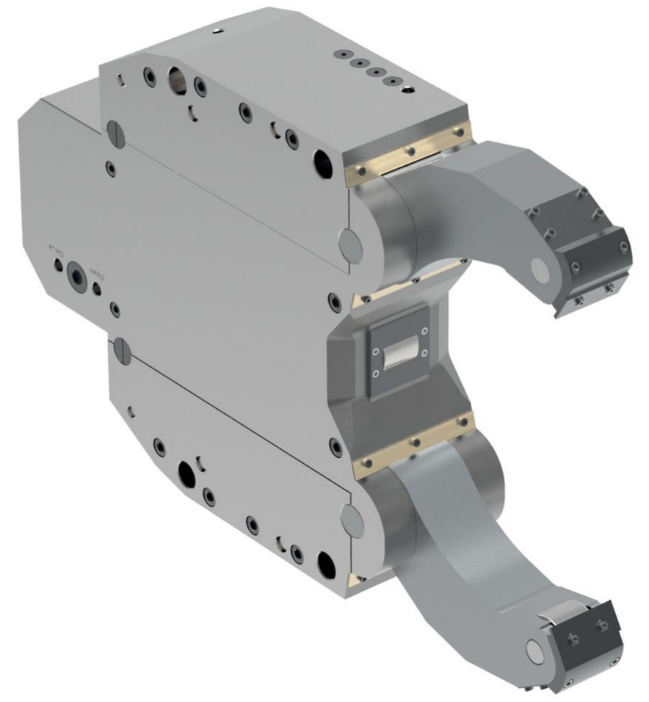

Self-centering Steady Rests SLZC - extremely compact design  |
| APPLICATION Support of shafts for rational turning and end machining optimal for pipe materials. TYPE Compact series with extra large clamping ranges. TECHNICAL FEATURES |
| - Central lubrication or manual lubrication possible, depending on the operating conditions - Standard version available with cylindrical or convex rollers - Available with and without chip protection - Prepared for end position check (limit switch not included in the scope of delivery) CUSTOMER BENEFITS » Extra large clamping range without change elements » Integrated channels for rinsing the workpiece in the contact area with coolant connection on the rear side » Operational safety thanks to safety valve, even if pressure drops » Extremely compact and sturdy design for variable use » High centering precision and repeatability thanks to proven cam lever system » Resilient chip protection for optimal workpiece wiping (for version "with chip protection") » Purge air connection to prevent penetration of dirt inside the steady rest |
We reserve the right to make technical changes.
