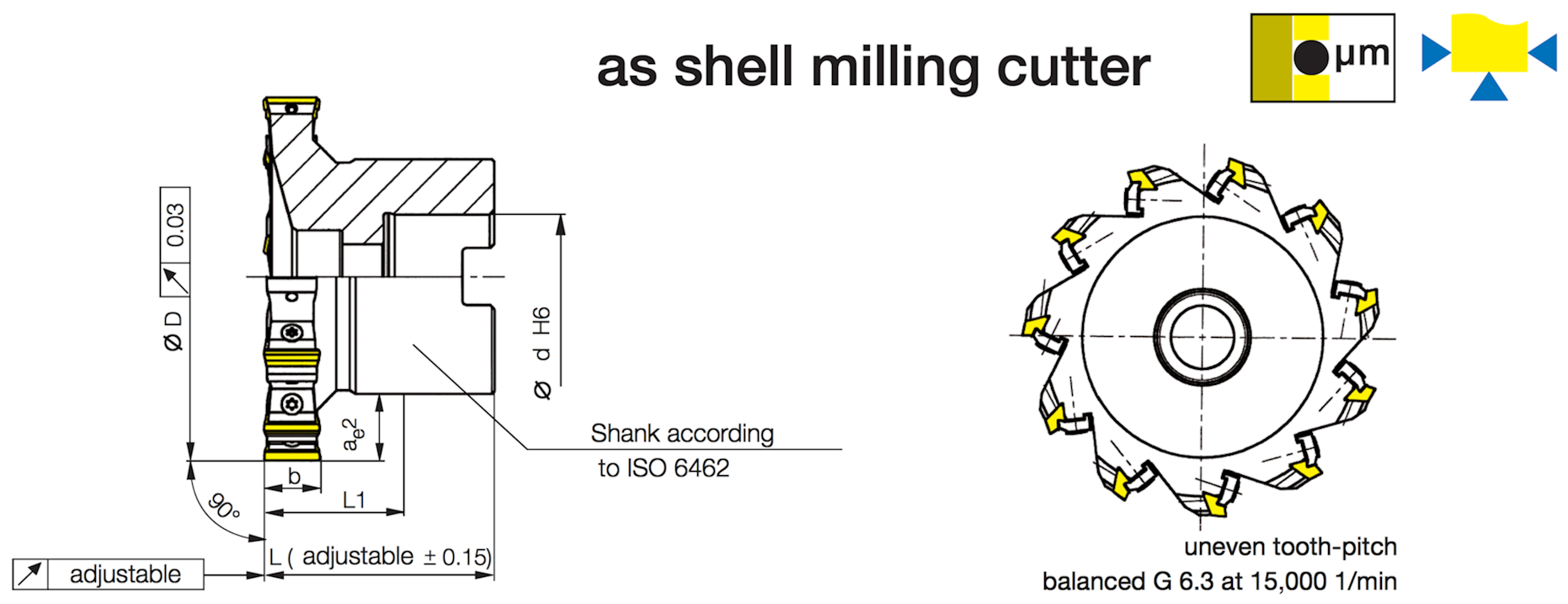

HH Face Shell Milling Cutters

Part nr. 20001
Code	Drawing nr.	Ø D	z	b	Ø d	L₁	L	a_e2	max. RPM	Weight (kg)	Inserts
	Light and medium machining
40,000	H6120-4000 4016R	40	5	12/7*	16	24	40	4.5	48,000	0.20	W612…N/R/L
50,000	H6120-5000 4022R	50	7	12/7*	22	40	40	3.5	45,000	0.30
63,000	H6120-6300 4022R	63	8	12/7*	22	40	40	8.5	41,000	0.40
80,000	H6120-8000 5027R	80	11	12/7*	27	50	50	9	36,000	0.75
100,000	H6120-1000 5032R	100	13	12/7*	32	50	50	9	31,000	1.10
125,000	H6120-1250 6340R	125	15	12/7*	40	63	63	11	23,000	2.00
	Reduced number of teeth
40,001	H6121-4000 4016R	40	3	12/7*	16	24	40	4.5	48,000	0.20
50,001	H6121-5000 4022R	50	4	12/7*	22	40	40	3.5	45,000	0.30
63,001	H6121-6300 4022R	63	5	12/7*	22	40	40	8.5	41,000	0.40
80,001	H6121-8000 5027R	80	6	12/7*	27	50	50	9	36,000	0.75
100,001	H6121-1000 5032R	100	8	12/7*	32	50	50	9	31,000	1.10
125,001	H6121-1250 6340R	125	10	12/7*	40	63	63	9	23,000	2.00
	Max. numbers of teeth for light machining
40,002	H3108-4000 4016R	40	6	7.8	16	30	40	4	48,000	0.20	W3108...N
50,002	H3108-5000 4022R	50	8	7.8	22	30	40	4	45,000	0.30
63,002	H3108-6300 4022R	63	9	7.8	22	16	40	4	41,000	0.40
80,002	H3108-8000 5027R	80	12	7.8	27	17	50	11	36,000	0.75
100,002	H3108-1000 5032R	100	15	7.8	32	-	50	11	31,000	1.10
125,002	H3108-1250 6340R	125	19	7.8	40	-	63	11	23,000	2.00
160,000	H3108-1600 6340R	160	22	7.8	40	-	63	16	12,000	2.50
ex stock * PCD-inserts with cutting length of 7 mm * Central clamping screw for shell milling cutter has to be ordered separately if needed! Ordering example: 1 piece H 6120-4000 4016 R = Ordering number: 20001 40,000

We reserve the right to make technical changes.
