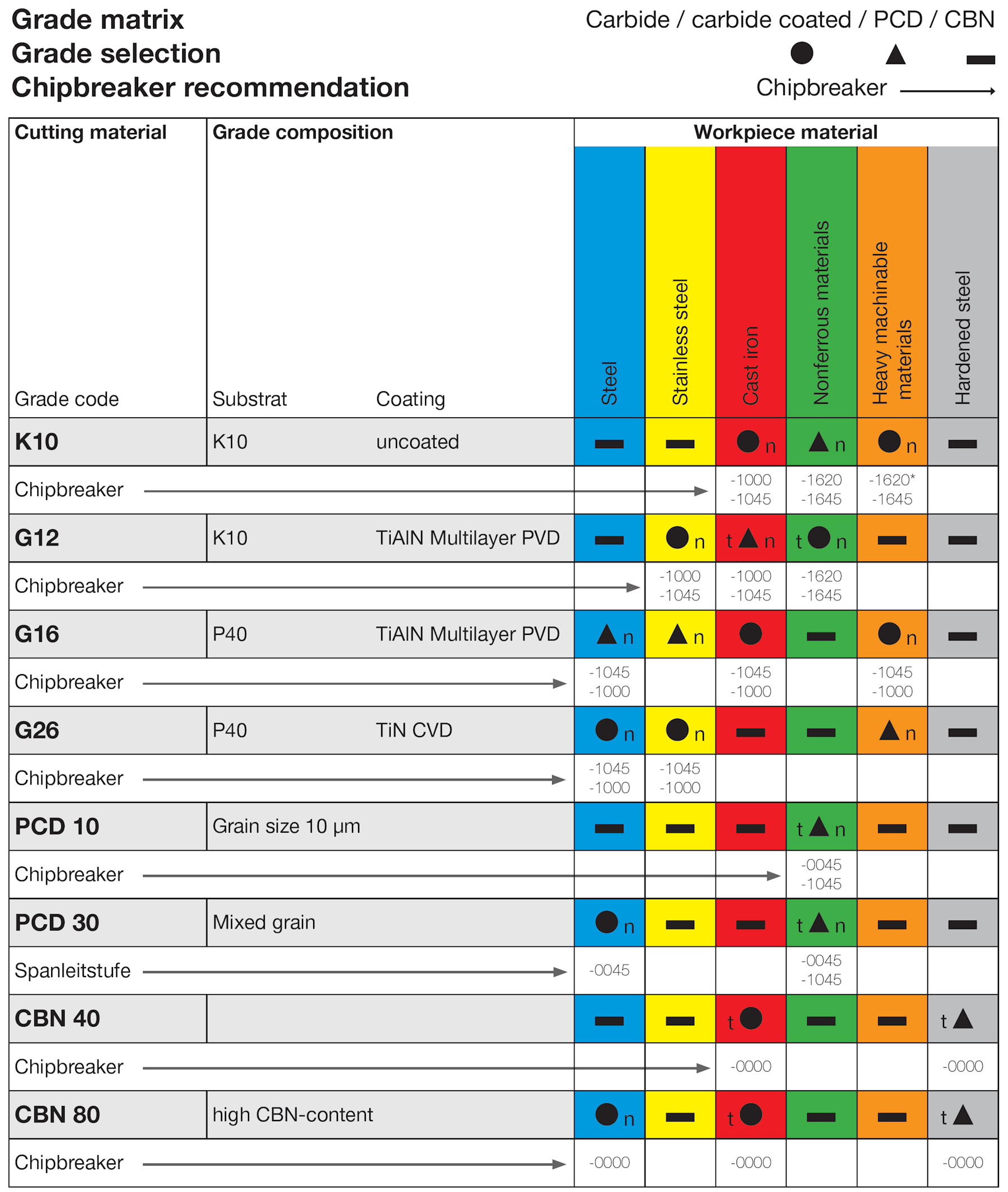

Inserts Application recommendations |
 |
= very good applicable |  |
= applicable |  |
= not applicable | *= for Titanium | d= dry | n= wet |
| Further cutting materials, coatings and geometries on request. | ||||||||
| Application for PCD-Inserts | |||
| Application | Ordering number | ||

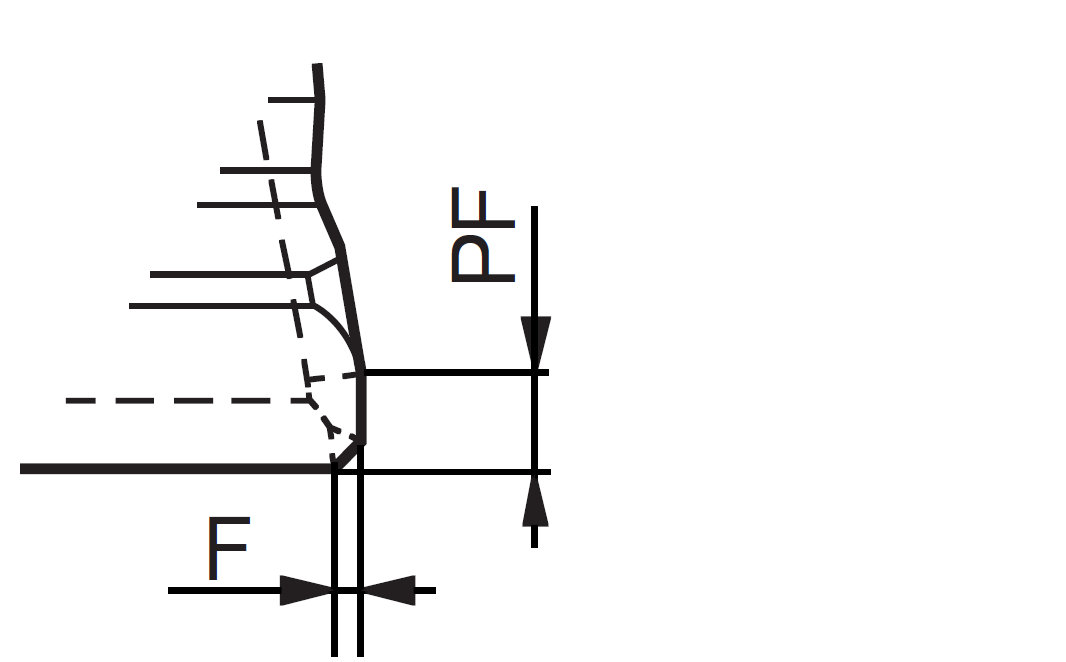

| - High surface quality |  |
W 3108-0314 0045 N |  |

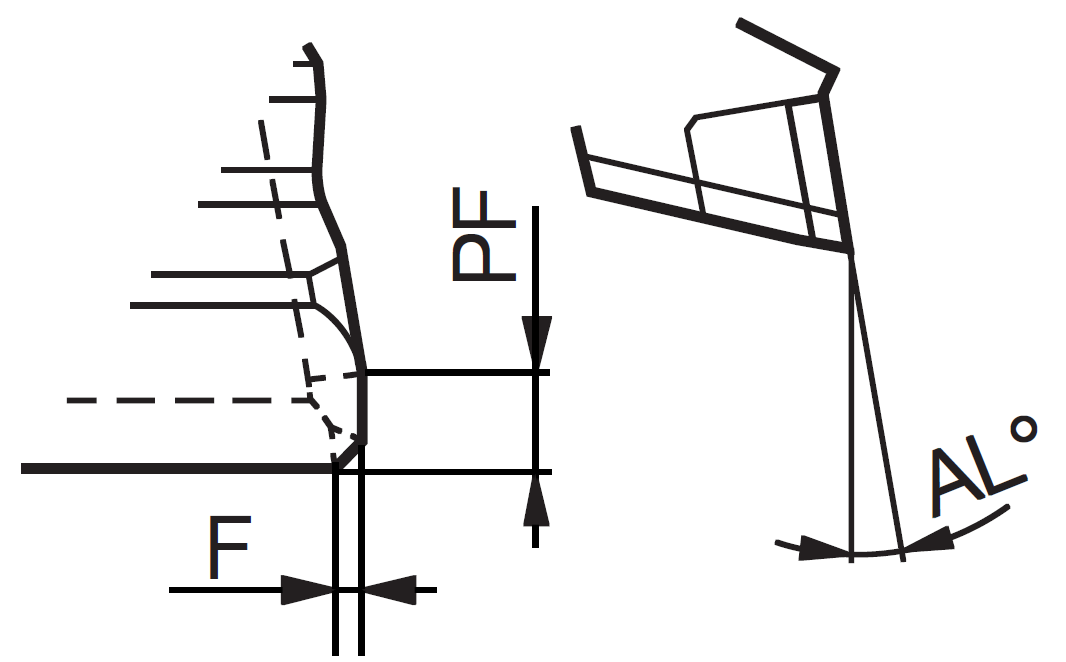

| - Stable conditions | |
W 6120-0318 0045 N | |
|
W 6127-0318 0045 R | ||
 |
W 6127-0318 0045 L | ||
| - High surface quality | |
W 3108-0314 1045 N |  |

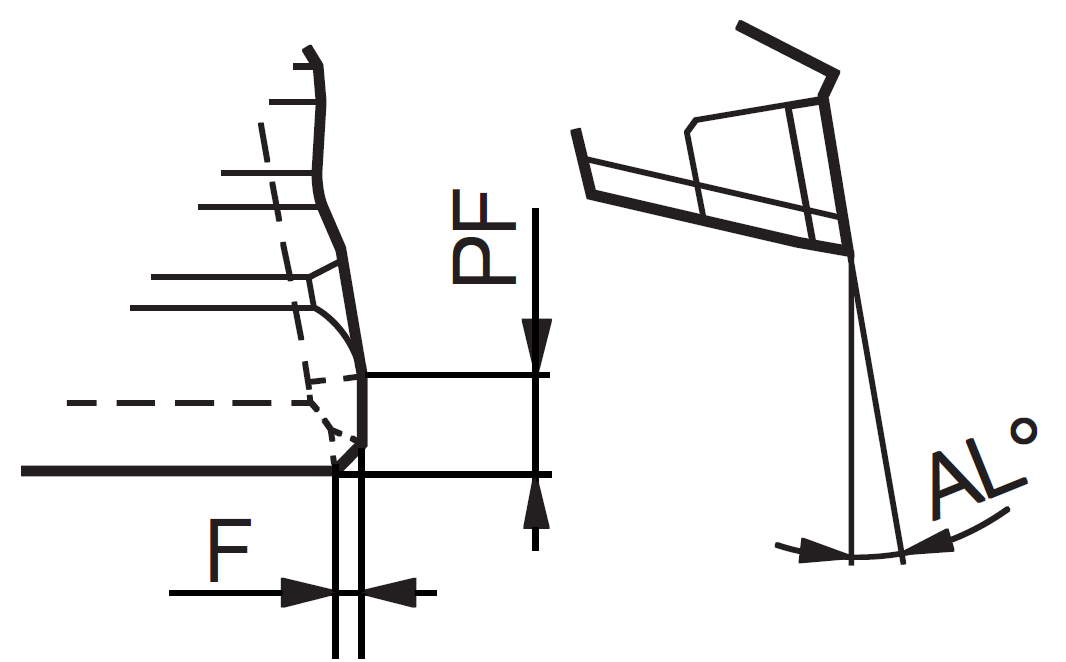

| - Higher cutting depths | |
W 6120-0318 1045 N | |
| - Instable conditions | |
W 6127-0318 1045 R | |
|
W 6127-0318 6445 R | ||
|
W 6120-0118 6245 R | ||
| - High surface quality - Very instable components |
W 6125-0118 6645 R |  |
|
| - Very high surface quality | |
W 6127-0315 0045 R |  |
| (mixed assembly) | |
W 6120-1000 0445 R | |

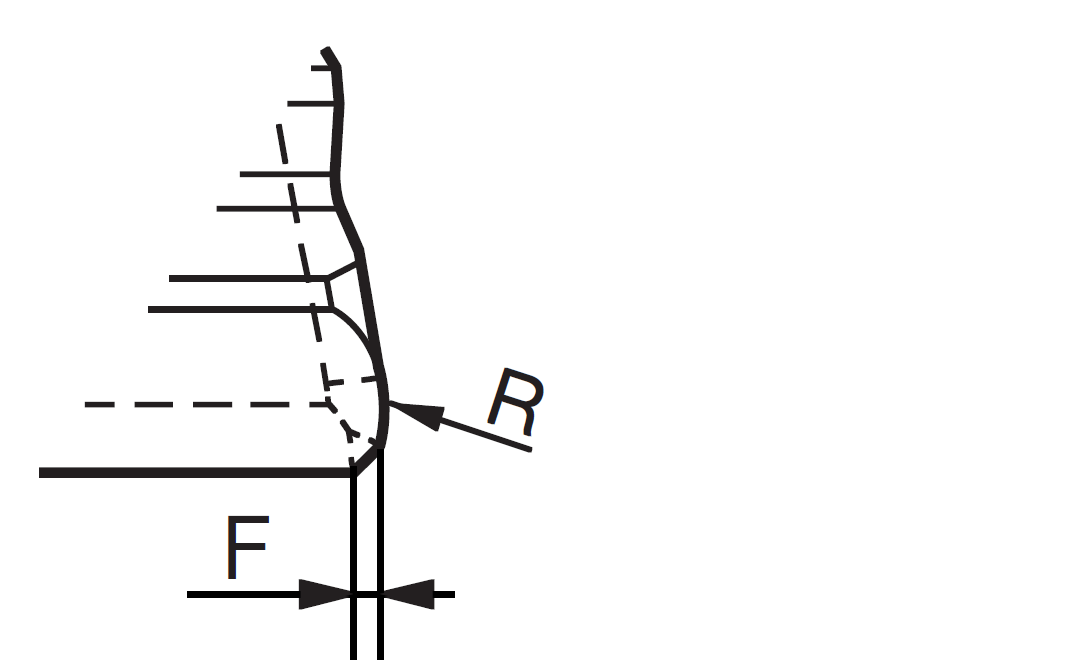

| - Defined surface quality | |
W 3108-0414 0000 N |  |
|
W 6120-0418 0000 N | ||
|
W 6127-0418 0000 R | ||
|
W 6127-0418 0000 L | ||
|
W 6127-0318 0000 R | ||
|
W 6127-0218 0000 R | ||
| - Defined surface quality | |
W 6127-0301 0045 R |  |
| with very instable components | |
W 6127-0305 6445 R | |
| Application recommendations for PCD-Inserts | ||
| Application | Grade code | |
| - Aluminium with low Si-content - high cutting speed - high surface quality |
 |
PCD 10 |
| - Aluminium with high Si-content - abrasive nonferrous-materials - very high cutting speed |
|
PCD 30 |
| - Sintersteel - CGI-machining |
|
PCD 30 |
We reserve the right to make technical changes.
