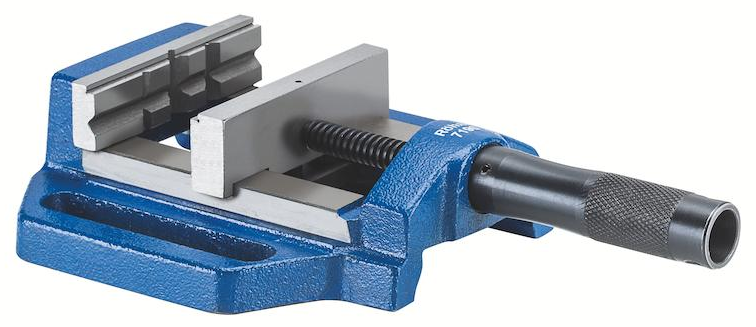

Drilling Machine Vices
BSH

APPLICATION
For securely clamping workpieces on drills and measuring machines.
TYPE
D.I.Y. design for small drill stands.
Clamping system mechanical , manually operated.

TECHNICAL FEATURES
- Solid clamping jaw with three vertical prisms and one horizontal prism
- Jaws and spindle gunmetal-finished
- Body made out of cast metal
- Long mounting slots

CUSTOMER BENEFITS
» Lever movable (included in scope of delivery)
» Both jaws have a seat for retaining flat workpieces



A12
BSH 1-3, small, light D.I.Y. design

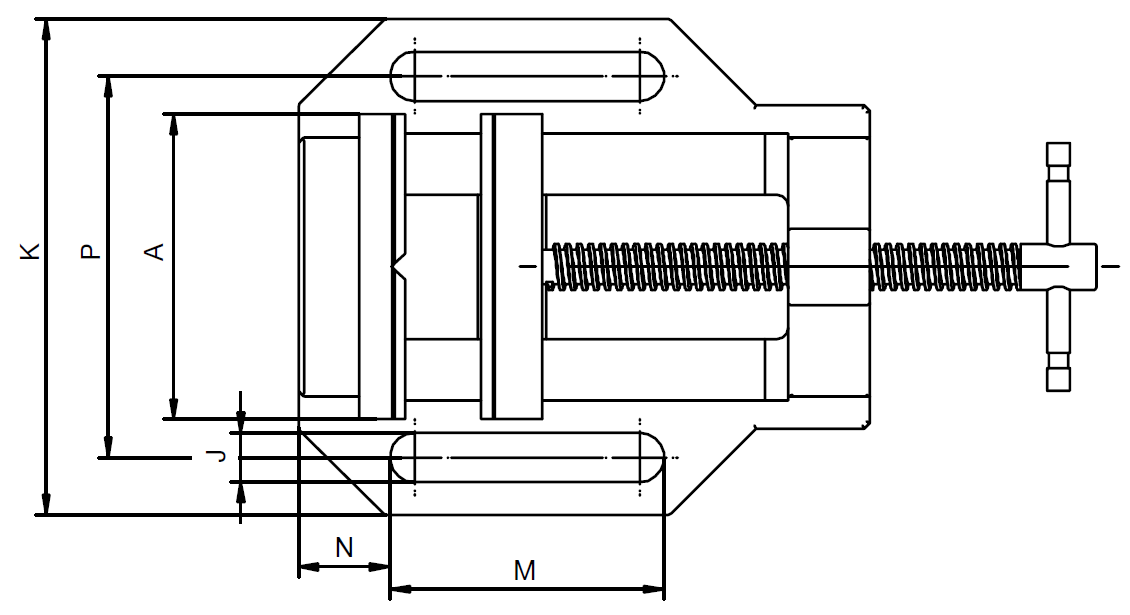

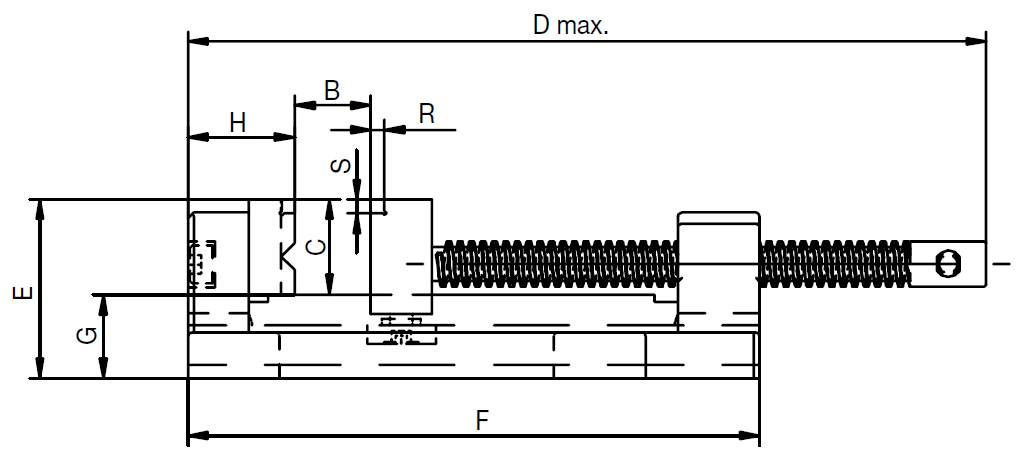

 Item No.  007193  007194  007195
 Size  1  2  3
 Jaw width A mm  63  80  100
 Clamping capacity B mm  65  85  90
 Jaw height C mm  25  25  25
 Total length D mm  224  274  347
 Total height E mm  43  47  57
 Total height F mm  125  150  170
 Total height G mm  18  22  32
 Total height H mm  27  28  32
 Total height J mm  12  13  16
 Total height K mm  105  130  175
 Total height L mm  -  -  -
 Total height M mm  53  49  100
 Total height N mm  21  24  20
 Total height O mm  -  -  -
 Total height P mm  80  100  135
 Total height R mm  3.5  3.5  3
 Total height S mm  3.5  3.5  3
 Weight kg  1.4  2  3.8




We reserve the right to make technical changes.
