General Accessories
General Accessories - Cliparc

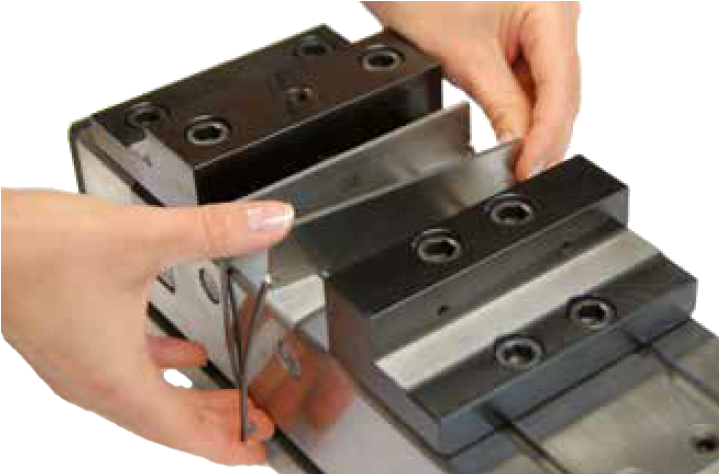

Fixed during machining and when released! The precision support rails with the Cliparc-System remain in their original position during the machining and releasing process. No more time intensive repositioning necessary. Insert the Cliparc clamps into the rails and snap them into the vice. No tools necessary.
TECHNICAL FEATURES - Different height steppings - Width only 3 mm (from size 160: 4 mm width) - Rim near through holes can be machined without step jaws or problems due the slim precision support rails. - Precision and quality parallelism better than 0.005 mm - Quick cleaning
Contents of delivery : Set with 10 different pair of rails and 4 clamps in wooden box

Support rails Cliparc

Item no.	1269621	1269622	1269623	1295913	1295914
For	RKE 92 / RKE-M 92	RKE 125 / RKE-M 125 / RKE-LV 125	RKE 160/200 / RKE-M 160/200	RKD-M, RKZ-M 92	RKD-M, RKZ-M 125
Web height A	48	68	83	53	73
Jaw width B	92	125	160	92	125
Rail height H	10/16/18/20/23/ 25/26/27/28/29	10/15/20/25/28/ 30/33/35/36/37	10/15/20/25/30/ 35/40/43/45/47	10/16/18/20/23/ 25/26/27/28/29	10/15/20/25/28/ 30/33/35/36/37
Guidance width C	94	126	162	94	126
Spare clamp (Set = 4 pieces)	1269624	1269625	1269626	1295916	1295917

A37
Dual clamp DSP for mutual support in the case of front-sided set-up, in pairs

Item no.	Contents of delivery
149125	piece

A37

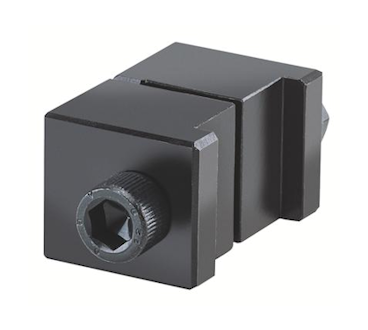

Single clamp SPE, for mounting vices on end and on the base

Item no.	Contents of delivery	T-slot	Thread
149121	piece	12	M 10 x 50
149122	piece	14	M 12 x 55
149123	piece	16	M 12 x 60
149124	piece	18	M 16 x 60
155722	piece	20	M 16 x 65
151507	piece	22	M 16 x 65

A37
Fixed slot nuts NTS, hardened and ground, with fixing screw

Item no.	Contents of delivery	Size	Length mm
014823	set	20 x 12	22
014825	set	20 x 14	25
014827	set	20 x 16	25
014829	set	20 x 18	25
014831	set	20 x 20	22
014833	set	20 x 22	32

A37
Workpiece stop with mounting thread

Item no.	Description
320400	Workpiece stop with M12 mounting thread

A37
Workpiece stop magnetic

Item no.	Description
184740	Workpiece stop with magnetic attachment - Premium (incl. base module)

A37

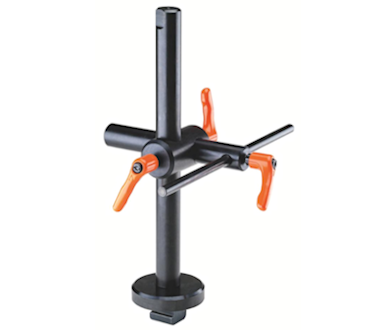

Workpiece stop WSA, universally adjustable, for fastening to the machine table (size 14 T-slot) or for screwing onto the NC-compact vice / machine vice (M12)

Item no.	Contents of delivery
320401	piece

A37

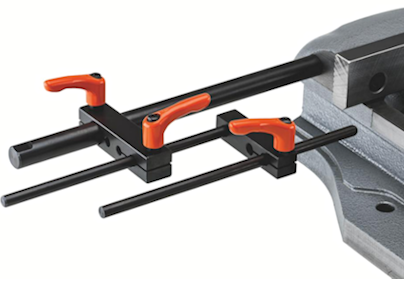

Precision vice locator PSA, universally adjustable, for screwing onto the NC-compact vice or machine vice, connecting thread M12

Item no.	Contents of delivery
681192	piece

We reserve the right to make technical changes.
