Ferg Threading Taps UNC 630, 632, T630, T632

Threading Taps
ISO Metric fine thread DIN 13

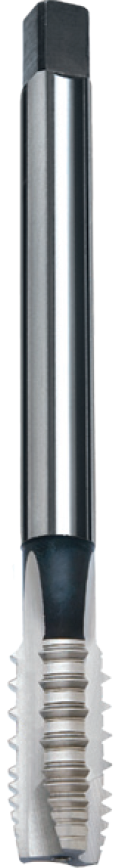

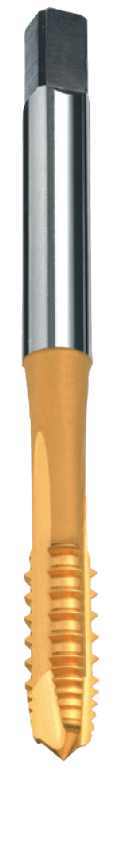

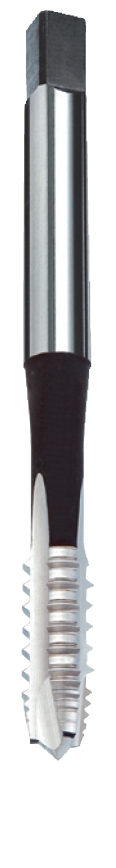

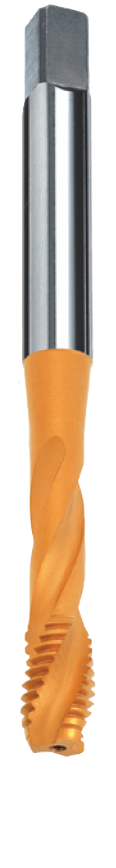

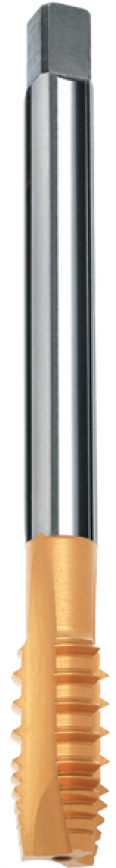

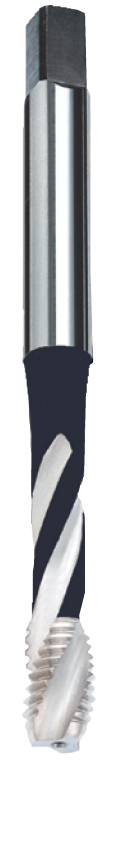

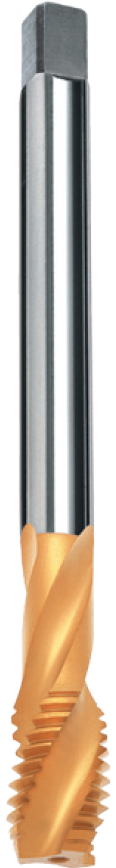

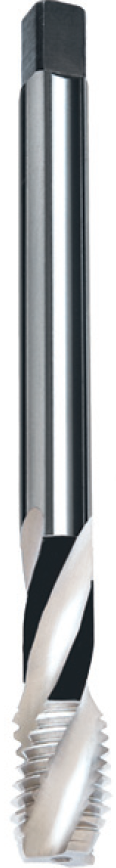

Titanium and CrNi alloys										Special High speed steel class E with vanadium		DIN 371 630A 2020063000	DIN 376 630 2520063000	DIN 371 T630A 2020063010	DIN 376 T630 2520063010	DIN 371 632A 2020063200	DIN 376 632 2520063200	DIN 371 T632A 2020063210	DIN 376 T632 2520063210
										HOLE		≤ 2 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Blind hole		≤ 2 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		B = 4xP+AZ		B = 4xP+AZ		C = 2.5xP		C = 2.5xP
										LIMIT		2BX		2BX		2BX		2BX
										COATING		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)
										DIN		≈ 371	≈ 376	≈ 371	≈ 376	≈ 371	≈ 376	≈ 371	≈ 376
										ORDER No. EDP = Nr.+ ★		≈ DIN 371 2020063000* 630A		≈ DIN 371 2020063010* T630A		≈ DIN 371 2020063200* 632A		≈ DIN 371 2020063210* T632A
l₁ mm	l₂ mm	mm	l₃ mm	≈ DIN 371		≈ DIN 376		mm	d₁ - P		★	≈ DIN 376 2520063000* 630		≈ DIN 376 2520063010* T630		≈ DIN 376 2520063200* 632		≈ DIN 376 2520063210* T632
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z
40	8	8	-	2.5	2.1			1.5	No. 1 - 64 UNC		001	3		3		3		3
45	9	9	-	2.8	2.1			1.8	No. 2 - 56 UNC		002	3		3		3		3
50	9	9	-	2.8	2.1			2.05	No. 3 - 48 UNC		003	3		3		3		3
56	11	5	16	3.5	2.7			2.25	No. 4 - 40 UNC		004	3		3		3		3
56	11	5	16	3.5	2.7			2.6	No. 5 - 40 UNC		005	3		3		3		3
56	12	6	17	4	3			2.75	No. 6 - 32 UNC		006	3		3		3		3
63	13	8	19	4.5	3.4			3.4	No. 8 - 32 UNC		008	3		3		3		3
70	15	8	25	6	4.9			3.8	No.10 - 24 UNC		010	3 ■		3 ■		3 ■		3 ■
80	16	9	30	6	4.9			4.5	No.12 - 24 UNC		012	3		3		3		3
80	17	10	30	7	5.5	4.5	3.4	5.1	1/4 - 20 UNC		025	3 ■		3 ■		3 ■		3 ■
90	20	12	35	8	6.2	6	4.9	6.5	5/16 - 18 UNC		031	3 ■		3 ■		3 ■		3 ■
100	22	12	39	9	7	7	5.5	8	3/8 - 16 UNC		037	3 ■		3 ■		3 ■		3 ■
100	22	14				8	6.2	9.4	7/16 - 14 UNC		043	3 ■		3 ■		3 ■		3 ■
110	24	16				9	7	10.75	1/2 - 13 UNC		050	3 ■		3 ■		3 ■		3 ■
110	26	20				11	9	12.2	9/16 - 12 UNC		056	3		3		3		3
110	27	20				12	9	13.5	5/8 - 11 UNC		062	4		4		4		4
125	30	25				14	11	16.5	3/4 - 10 UNC		075	4		4		4		4
140	32	28				18	14.5	19.5	7/8 - 9 UNC		087	4		4		4		4
160	36	30				18	14.5	22.25	1 - 8 UNC		100	4		4		4		4
								■ = Stock				EDP: T632 1/2-13 UNC = 2520063210050

We reserve the right to make technical changes.
