Zoller Pilot 1.0

The »pilot 1.0« image processing technology makes it possible to easily preset and measure standard tools, quickly, precisely and easily. This includes automatic cutting edge form and measuring range recognition, the

navigation system »compass«, the »cris360°« projector function and cutting edge inspection to determine real effective measuring of tools, and a large, clear image of the cutting tool edge on a 13.3” panel PC.

     Easy to Operate, fast Processing

     Less Machine Down-time

     Increased Productivity

     Reduced Rejects

The Start to Professional Presetting and Measurement of Tools

»pilot 1.0« is robust, and can be used on the shop floor next to CNC machines, in processing and test centers, or in measurement rooms.

With »pilot 1.0«, Preset and Measure Tools Efficiently
Without Great Training Expenses

Take advantage of easy operation, real time presentation of the measurement results in the camera field of vision, and of a workshop-compatible device version.

All standard measuring functions are available, including longitudinal and cross dimensions, radius, two-angle technology, and concentricity and run-out.

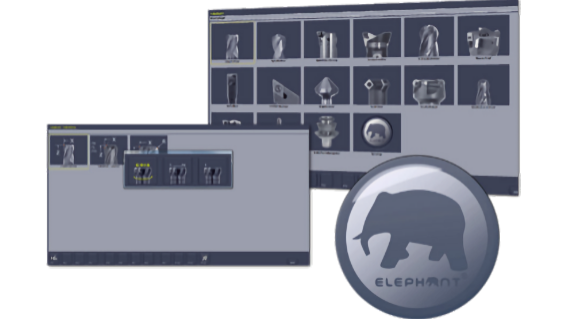

		»elephant« Technology The measuring program assistant »elephant« enables the simple measurement of standard tools without entering target data. The desired tool category can be selected and a specific measuring task activated using a graphical selection dialog.
		Automatic Cutter Shape and Measuring Range Detection Clear graphical and numerical representation of results within seconds. Over 90 different cutter shapes.
		Projector Function and Cutting Edge Inspection For wear inspection and measurement of cutting edge chipping.
		Navigation System »compass« For an easy and comfortable safe positioning of the camera's target values on the tool.
		Software Function »cris360°« to Determine and Measure the Maximum Contour of the Tool For the real representation of the effective contour, particularly for multi-insert tools.
		Label Printing Function For all important information and effective data of the tool.

We reserve the right to make technical changes.
