| Tool Table | |||||||||
| Tool without blade | |||||||||

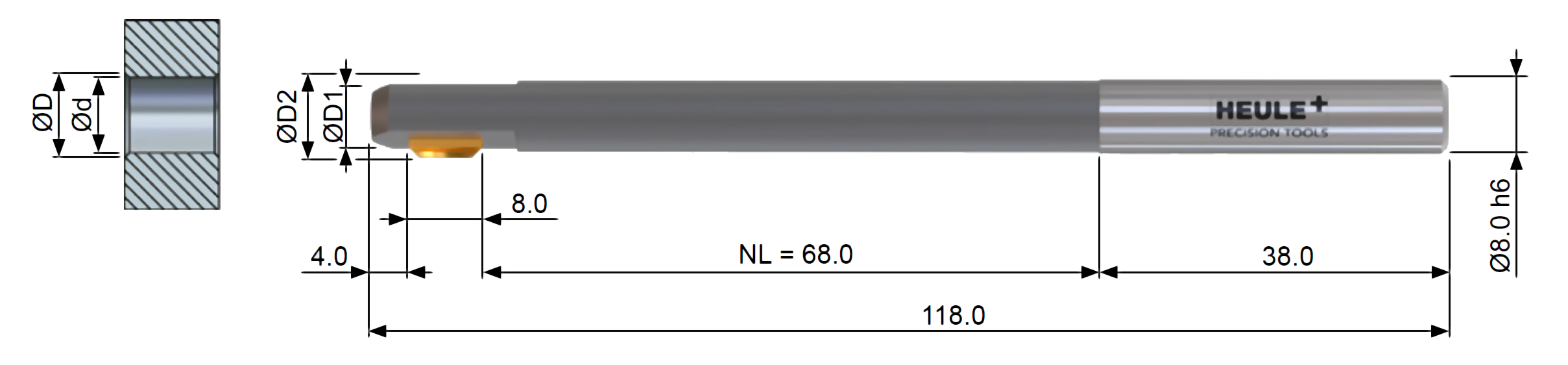

| Bore | Chamfer max1 | Tool | Max.2 | Part No. | |||||
| Ød | ØD | ØD1 | ØD2 | ||||||
| 8.0 - 8.5 | 8.5 / 9.0 | 7.8 | ØD + 0.6 | SNAP8/8.0 | |||||
| 8.5 - 9.0 | 9.0 / 9.5 / 10.0 | 8.3 | SNAP8/8.5 | ||||||
| 9.0 - 9.5 | 9.5 / 10.0 / 10.5 | 8.8 | SNAP8/9.0 | ||||||
| 9.5 - 10.0 | 10.0 / 10.5 / 11.0 | 9.3 | SNAP8/9.5 | ||||||
| 10.0 - 10.5 | 10.5 / 11.0 / 11.5 | 9.8 | SNAP8/10.0 | ||||||
| 10.5 - 11.0 | 11.0 / 11.5 / 12.0 | 10.3 | SNAP8/10.5 | ||||||
| 11.0 - 11.5 | 11.5 / 12.0 / 12.5 | 10.8 | SNAP8/11.0 | ||||||
| 11.5 - 12.0 | 12.0 / 12.5 / 13.0 | 11.3 | SNAP8/11.5 | ||||||
| 12.0 - 12.5 | 12.5 / 13.0 / 13.5 | 11.8 | SNAP8/12.0 | ||||||
| 1) Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one defined chamfer-Ø only. The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application. The indicated dimension is the theoretically possible maximum. 2) The maximum diameter D2 varies depending on the selected blade. Please calculate value with formula. Please mind any interfering edges. - Standard shank for tool part numbers without any addition = Cylindrical shank With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank - Attention: The tools are without blade. The blades for the tool need to be ordered separately. |
|||||||||

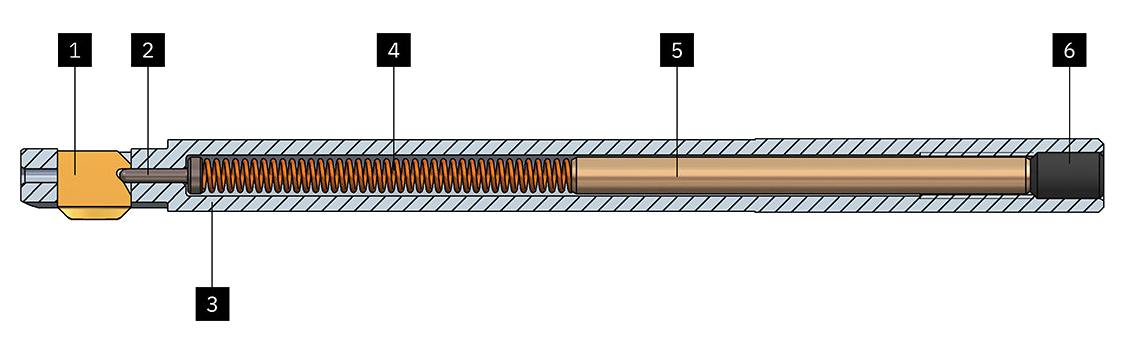

| Spare Parts | ||

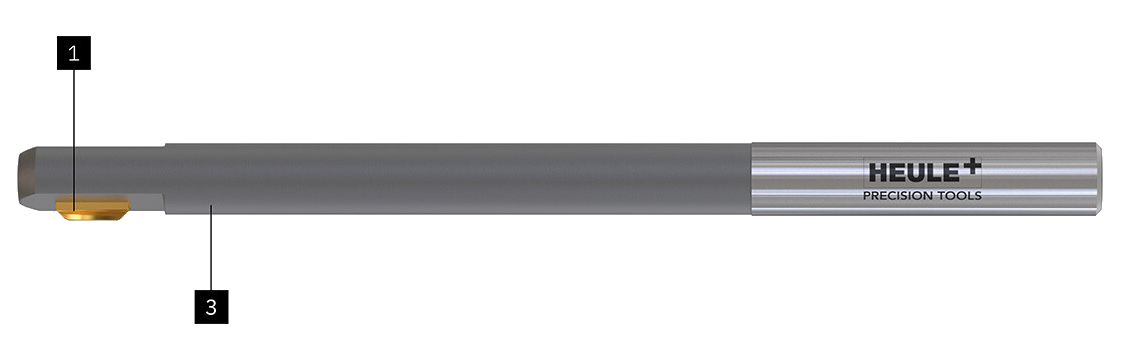

| Pos. | Description | Part No. |
| 1 | Blade | see below |
| 2 | Control bolt Ø1.5 | GH-Q-E-0002 |
| 3 | Tool body | see below |
| 4 | Spring Ø3.7 x Ø0.5 x 48.0 | GH-H-F-0007 |
| 5 | SNAP Distance pin Ø4 x 50.0 | GH-Q-E-0028 |
| 6 | Set screw M5 x 8.0 DIN 913 | GH-H-S-0119 |
| Wrench SW2.5 to Pos. 6 (not included) | GH-H-S-2100 | |
| Blades GS Geometry 90° | |||||
| Part No. forward and backward cutting |
Part No. backward cutting only |
||||
| Chamfer-Ø1 | Coating T | Coating A | Coating T | Coating A | |
| 8.5 | GH-Q-M-03720* | GH-Q-M-03820 | GH-Q-M-05720 | GH-Q-M-05820 | |
| 9.0 | GH-Q-M-03721* | GH-Q-M-03821 | GH-Q-M-05721 | GH-Q-M-05821 | |
| 9.5 | GH-Q-M-03722* | GH-Q-M-03822 | GH-Q-M-05722 | GH-Q-M-05822 | |
| 10.0 | GH-Q-M-03723* | GH-Q-M-03823 | GH-Q-M-05723 | GH-Q-M-05823 | |
| 10.5 | GH-Q-M-03724* | GH-Q-M-03824 | GH-Q-M-05724 | GH-Q-M-05824 | |
| 11.0 | GH-Q-M-03725* | GH-Q-M-03825 | GH-Q-M-05725 | GH-Q-M-05825 | |
| 11.5 | GH-Q-M-03726* | GH-Q-M-03826 | GH-Q-M-05726 | GH-Q-M-05826 | |
| 12.0 | GH-Q-M-03727* | GH-Q-M-03827 | GH-Q-M-05727 | GH-Q-M-05827 | |
| 12.5 | GH-Q-M-03728* | GH-Q-M-03828 | GH-Q-M-05728 | GH-Q-M-05828 | |
| 13.0 | GH-Q-M-03729* | GH-Q-M-03829 | GH-Q-M-05729 | GH-Q-M-05829 | |
| 13.5 | GH-Q-M-03730* | GH-Q-M-03830 | GH-Q-M-05730 | GH-Q-M-05830 | |
| *) Standard items / Please enquire about stock or delivery times for all non-standard blades. 1) The indicated dimension is the theoretically possible maximum. Explanations to coatings T: Standard coating A: Coating for increased requirements |
|||||
| Blades DF Geometry 90° | |||||
| Part No. forward and backward cutting |
Part No. backward cutting only |
||||
| Chamfer-Ø1 | Coating T | Coating A | Coating T | Coating A | |
| 8.5 | GH-Q-M-03120 | GH-Q-M-03220 | GH-Q-M-05120 | GH-Q-M-05220 | |
| 9.0 | GH-Q-M-03121 | GH-Q-M-03221 | GH-Q-M-05121 | GH-Q-M-05221 | |
| 9.5 | GH-Q-M-03122 | GH-Q-M-03222 | GH-Q-M-05122 | GH-Q-M-05222 | |
| 10.0 | GH-Q-M-03123 | GH-Q-M-03223 | GH-Q-M-05123 | GH-Q-M-05223 | |
| 10.5 | GH-Q-M-03124 | GH-Q-M-03224 | GH-Q-M-05124 | GH-Q-M-05224 | |
| 11.0 | GH-Q-M-03125 | GH-Q-M-03225 | GH-Q-M-05125 | GH-Q-M-05225 | |
| 11.5 | GH-Q-M-03126 | GH-Q-M-03226 | GH-Q-M-05126 | GH-Q-M-05226 | |
| 12.0 | GH-Q-M-03127 | GH-Q-M-03227 | GH-Q-M-05127 | GH-Q-M-05227 | |
| 12.5 | GH-Q-M-03128 | GH-Q-M-03228 | GH-Q-M-05128 | GH-Q-M-05228 | |
| 13.0 | GH-Q-M-03129 | GH-Q-M-03229 | GH-Q-M-05129 | GH-Q-M-05229 | |
| 13.5 | GH-Q-M-03130 | GH-Q-M-03230 | GH-Q-M-05130 | GH-Q-M-05230 | |
| 1) The indicated dimension is the theoretically possible chamfer capacity / depth maximum. Explanations to coatings T: Coating for normal requirements A: Coating for increased requirements |
|||||
| Spare parts | ||||
| Tool Body | ||||
| Tool Reference | Tool-Ø D1 | Part No. | ||
| SNAP8/8.0 | 7.8 | GH-Q-G-0220 | ||
| SNAP8/8.5 | 8.3 | GH-Q-G-0221 | ||
| SNAP8/9.0 | 8.8 | GH-Q-G-0222 | ||
| SNAP8/9.5 | 9.3 | GH-Q-G-0223 | ||
| SNAP8/10.0 | 9.8 | GH-Q-G-0224 | ||
| SNAP8/10.5 | 10.3 | GH-Q-G-0225 | ||
| SNAP8/11.0 | 10.8 | GH-Q-G-0226 | ||
| SNAP8/11.5 | 11.3 | GH-Q-G-0227 | ||
| SNAP8/12.0 | 11.8 | GH-Q-G-0228 | ||
