Fineboring Tools Tapered screw adjustment μm-accurate adjustable |

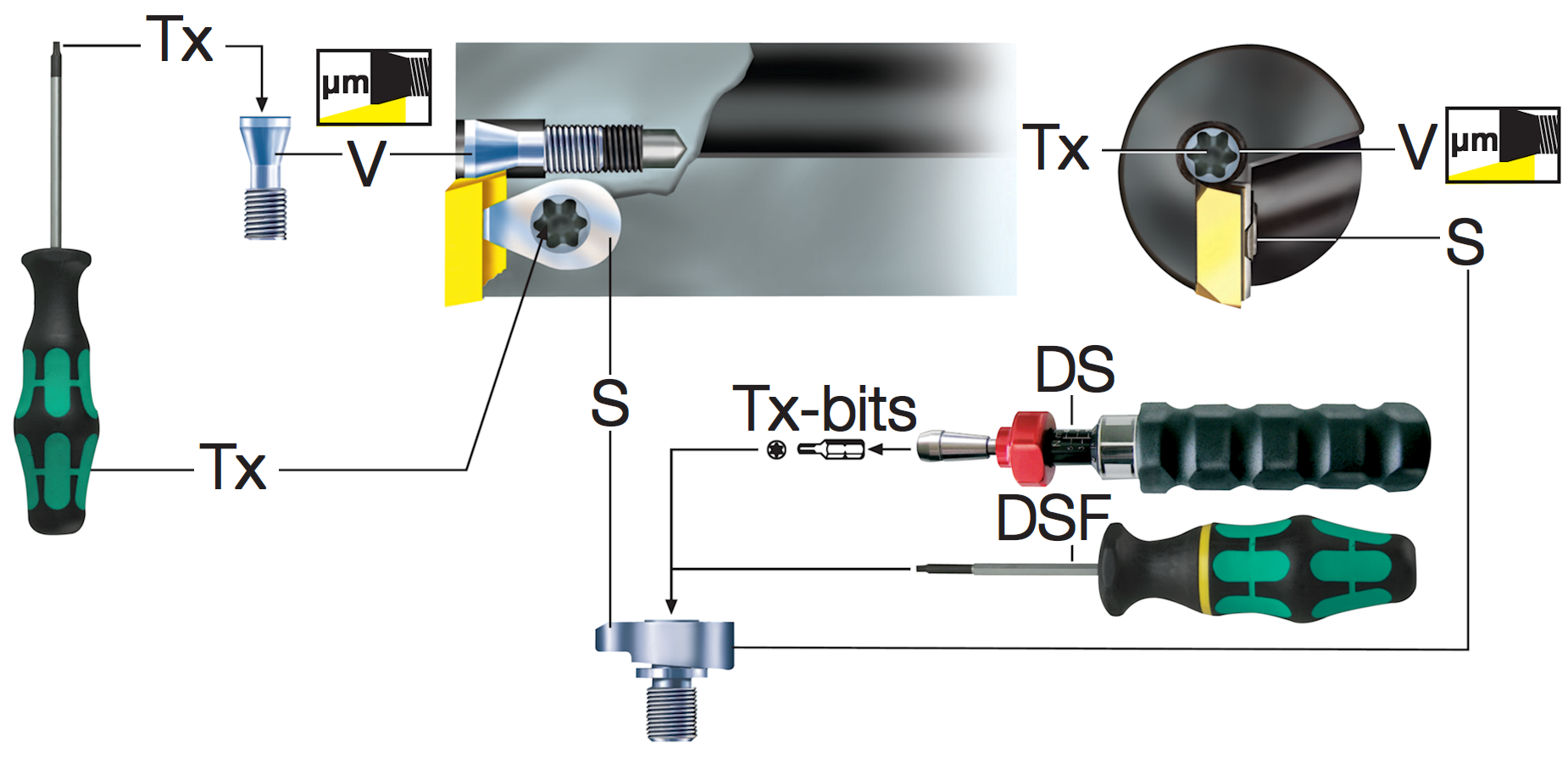

Spare Parts and Handling Tools
| S | Clamping set | ||
| Tx | Torx-screw driver ( for operating clamping and adjustment ) | ||
| DS | Torque wrench adjustable | ||
| DSF | Torque wrench non-adjustable | ||
| Tx-bits | Torx-bits | ||
| V | Adjustment screw ( tapered screw ) | ||
Please note: Clamping set S contains: 1 Clamping element, 1 Sealing ring, 1 Clamping screw |
|||
| Tool | S | Tx | Tx-bits | V |
| H 1730-…. …. R | E 3441 | Tx 5 | Tx 5-bit | E 3383 |
| H 2850-…. …. R | E 1112 | Tx 6 | Tx 6-bit | E 2986 |
| DS / DSF - see adjustment instruction | ||||
We reserve the right to make technical changes.
