SNAP20

SNAP5/20 Cas

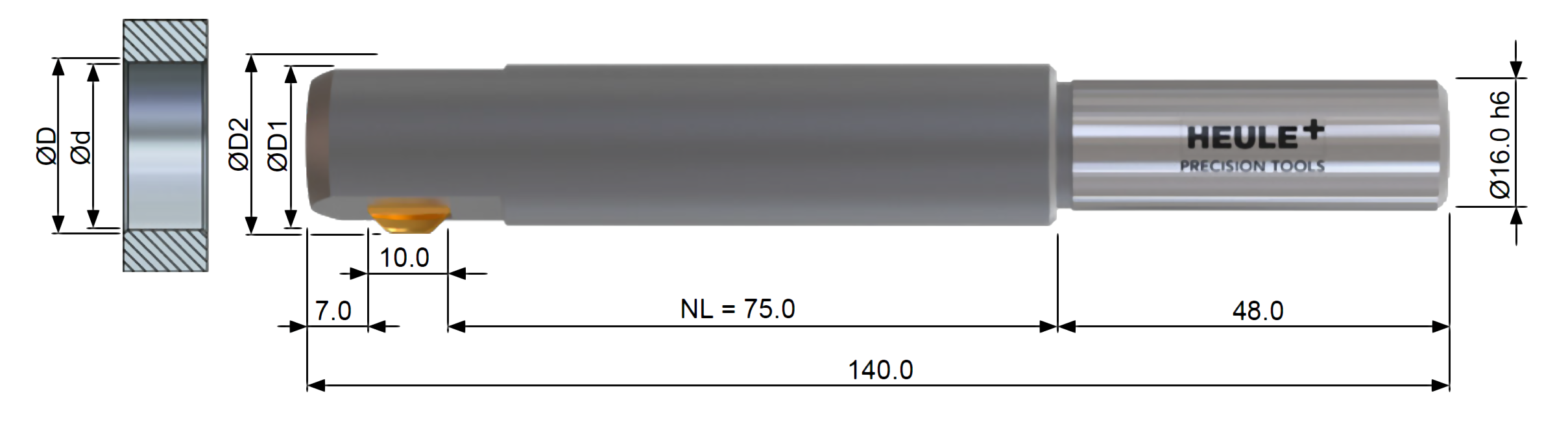

Tool Table
				Tool without blade
Bore	Chamfer max¹	Tool	Max.²	Part No.
Ød	ØD	ØD1	ØD2
20.0 - 22.5	21.0 / 22.0 / 23.0	19.8	ØD + 1.0	SNAP20/20.0
21.0 - 23.5	22.0 / 23.0 / 24.0	20.8		SNAP20/21.0
22.0 - 24.5	23.0 / 24.0 / 25.0	21.8		SNAP20/22.0
23.0 - 25.5	24.0 / 25.0 / 26.0	22.8		SNAP20/23.0
24.0 - 26.5	25.0 / 26.0 / 27.0	23.8		SNAP20/24.0
25.0 - 27.5	26.0 / 27.0 / 28.0	24.8		SNAP20/25.0
26.0 - 28.5	27.0 / 28.0 / 29.0	25.8		SNAP20/26.0
27.0 - 29.5	28.0 / 29.0 / 30.0	26.8		SNAP20/27.0
28.0 - 30.5	29.0 / 30.0 / 31.0	27.8		SNAP20/28.0
29.0 - 31.5	30.0 / 31.0 / 32.0	28.8		SNAP20/29.0
30.0 - 32.5	31.0 / 32.0 / 33.0	29.8		SNAP20/30.0
31.0 - 33.5	32.0 / 33.0 / 34.0	30.8		SNAP20/31.0
32.0 - 34.5	33.0 / 34.0 / 35.0	31.8		SNAP20/32.0
33.0 - 35.5	34.0 / 35.0 / 36.0	32.8		SNAP20/33.0
34.0 - 36.5	35.0 / 36.0 / 37.0	33.8		SNAP20/34.0
35.0 - 37.5	36.0 / 37.0 / 38.0	34.8		SNAP20/35.0
¹⁾ Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one defined chamfer-Ø only. The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application. The indicated dimension is the theoretically possible maximum. ²⁾ The maximum diameter D2 varies depending on the selected blade. Please calculate value with formula. Please mind any interfering edges. - Standard shank for tool part numbers without any addition = Cylindrical shank With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank - Attention: The tools are without blade. The blades for the tool need to be ordered separately.

Spare Parts
Pos.	Description	Part No.
1	Blade	see below
2	Control bolt Ø2.5	GH-Q-E-0003
3	Tool body	see below
4	Spring Ø4.3 x Ø0.6 x 52.0	GH-H-F-0011
5	SNAP Distance pin Ø4 x 65.0	GH-Q-E-0031
6	Set screw M5 x 8.0 DIN 913	GH-H-S-0119
	Wrench SW2.5 to Pos. 6 (not included)	GH-H-S-2100

Blades GS Geometry 90°
	Part No. forward and backward cutting		Part No. backward cutting only
Chamfer-Ø¹	Coating T	Coating A	Coating T	Coating A
21.0	GH-Q-M-03770^*	GH-Q-M-03870	GH-Q-M-05770	GH-Q-M-05870
22.0	GH-Q-M-03771^*	GH-Q-M-03871	GH-Q-M-05771	GH-Q-M-05871
23.0	GH-Q-M-03772^*	GH-Q-M-03872	GH-Q-M-05772	GH-Q-M-05872
24.0	GH-Q-M-03773^*	GH-Q-M-03873	GH-Q-M-05773	GH-Q-M-05873
25.0	GH-Q-M-03774^*	GH-Q-M-03874	GH-Q-M-05774	GH-Q-M-05874
26.0	GH-Q-M-03775^*	GH-Q-M-03875	GH-Q-M-05775	GH-Q-M-05875
27.0	GH-Q-M-03776^*	GH-Q-M-03876	GH-Q-M-05776	GH-Q-M-05876
28.0	GH-Q-M-03777^*	GH-Q-M-03877	GH-Q-M-05777	GH-Q-M-05877
29.0	GH-Q-M-03778^*	GH-Q-M-03878	GH-Q-M-05778	GH-Q-M-05878
30.0	GH-Q-M-03779^*	GH-Q-M-03879	GH-Q-M-05779	GH-Q-M-05879
31.0	GH-Q-M-03780^*	GH-Q-M-03880	GH-Q-M-05780	GH-Q-M-05880
32.0	GH-Q-M-03781^*	GH-Q-M-03881	GH-Q-M-05781	GH-Q-M-05881
33.0	GH-Q-M-03782^*	GH-Q-M-03882	GH-Q-M-05782	GH-Q-M-05882
34.0	GH-Q-M-03783^*	GH-Q-M-03883	GH-Q-M-05783	GH-Q-M-05883
35.0	GH-Q-M-03784^*	GH-Q-M-03884	GH-Q-M-05784	GH-Q-M-05884
36.0	GH-Q-M-03785^*	GH-Q-M-03885	GH-Q-M-05785	GH-Q-M-05885
37.0	GH-Q-M-03786^*	GH-Q-M-03886	GH-Q-M-05786	GH-Q-M-05886
38.0	GH-Q-M-03787^*	GH-Q-M-03887	GH-Q-M-05787	GH-Q-M-05887
*^) Standard items / Please enquire about stock or delivery times for all non-standard blades. ¹⁾ The indicated dimension is the theoretically possible maximum. Explanations to coatings** T: Standard coating A: Coating for increased requirements

Blades DF Geometry 90°
	Part No. forward and backward cutting		Part No. backward cutting only
Chamfer-Ø¹	Coating T	Coating A	Coating T	Coating A
21.0	GH-Q-M-03170^*	GH-Q-M-03270	GH-Q-M-05170	GH-Q-M-05270
22.0	GH-Q-M-03171^*	GH-Q-M-03271	GH-Q-M-05171	GH-Q-M-05271
23.0	GH-Q-M-03172^*	GH-Q-M-03272	GH-Q-M-05172	GH-Q-M-05272
24.0	GH-Q-M-03173^*	GH-Q-M-03273	GH-Q-M-05173	GH-Q-M-05273
25.0	GH-Q-M-03174^*	GH-Q-M-03274	GH-Q-M-05174	GH-Q-M-05274
26.0	GH-Q-M-03175^*	GH-Q-M-03275	GH-Q-M-05175	GH-Q-M-05275
27.0	GH-Q-M-03176^*	GH-Q-M-03276	GH-Q-M-05176	GH-Q-M-05276
28.0	GH-Q-M-03177^*	GH-Q-M-03277	GH-Q-M-05177	GH-Q-M-05277
29.0	GH-Q-M-03178^*	GH-Q-M-03278	GH-Q-M-05178	GH-Q-M-05278
30.0	GH-Q-M-03179^*	GH-Q-M-03279	GH-Q-M-05179	GH-Q-M-05279
31.0	GH-Q-M-03180^*	GH-Q-M-03280	GH-Q-M-05180	GH-Q-M-05280
32.0	GH-Q-M-03181^*	GH-Q-M-03281	GH-Q-M-05181	GH-Q-M-05281
33.0	GH-Q-M-03182^*	GH-Q-M-03282	GH-Q-M-05182	GH-Q-M-05282
34.0	GH-Q-M-03183^*	GH-Q-M-03283	GH-Q-M-05183	GH-Q-M-05283
35.0	GH-Q-M-03184^*	GH-Q-M-03284	GH-Q-M-05184	GH-Q-M-05284
36.0	GH-Q-M-03185^*	GH-Q-M-03285	GH-Q-M-05185	GH-Q-M-05285
37.0	GH-Q-M-03186^*	GH-Q-M-03286	GH-Q-M-05186	GH-Q-M-05286
38.0	GH-Q-M-03187^*	GH-Q-M-03287	GH-Q-M-05187	GH-Q-M-05287
¹⁾ The indicated dimension is the theoretically possible chamfer capacity / depth maximum. Explanations to coatings T: Coating for normal requirements A: Coating for increased requirements

Spare parts
Tool Body
Tool Reference	Tool-Ø D1	Part No.
SNAP20/20.0	19.8	GH-Q-G-0270
SNAP20/21.0	20.8	GH-Q-G-0271
SNAP20/22.0	21.8	GH-Q-G-0272
SNAP20/23.0	22.8	GH-Q-G-0273
SNAP20/24.0	23.8	GH-Q-G-0274
SNAP20/25.0	24.8	GH-Q-G-0275
SNAP20/26.0	25.8	GH-Q-G-0276
SNAP20/27.0	26.8	GH-Q-G-0277
SNAP20/28.0	27.8	GH-Q-G-0278
SNAP20/29.0	28.8	GH-Q-G-0279
SNAP20/30.0	29.8	GH-Q-G-0280
SNAP20/31.0	30.8	GH-Q-G-0281
SNAP20/32.0	31.8	GH-Q-G-0282
SNAP20/33.0	32.8	GH-Q-G-0283
SNAP20/34.0	33.8	GH-Q-G-0284
SNAP20/35.0	34.8	GH-Q-G-0285

We reserve the right to make technical changes.
