Fineboring Tools Radial adjustment, μm-accurate adjustable |
HOLLFELDER-GÜHRING CUTTING TOOLS offers the possibility to adjust all inserts in the finebores μm-accurate in diameter by means of the radial screw adjustment. This high-performance tooling system is both suitable for various machining tasks and a wide variety of materials. |
||||
 |

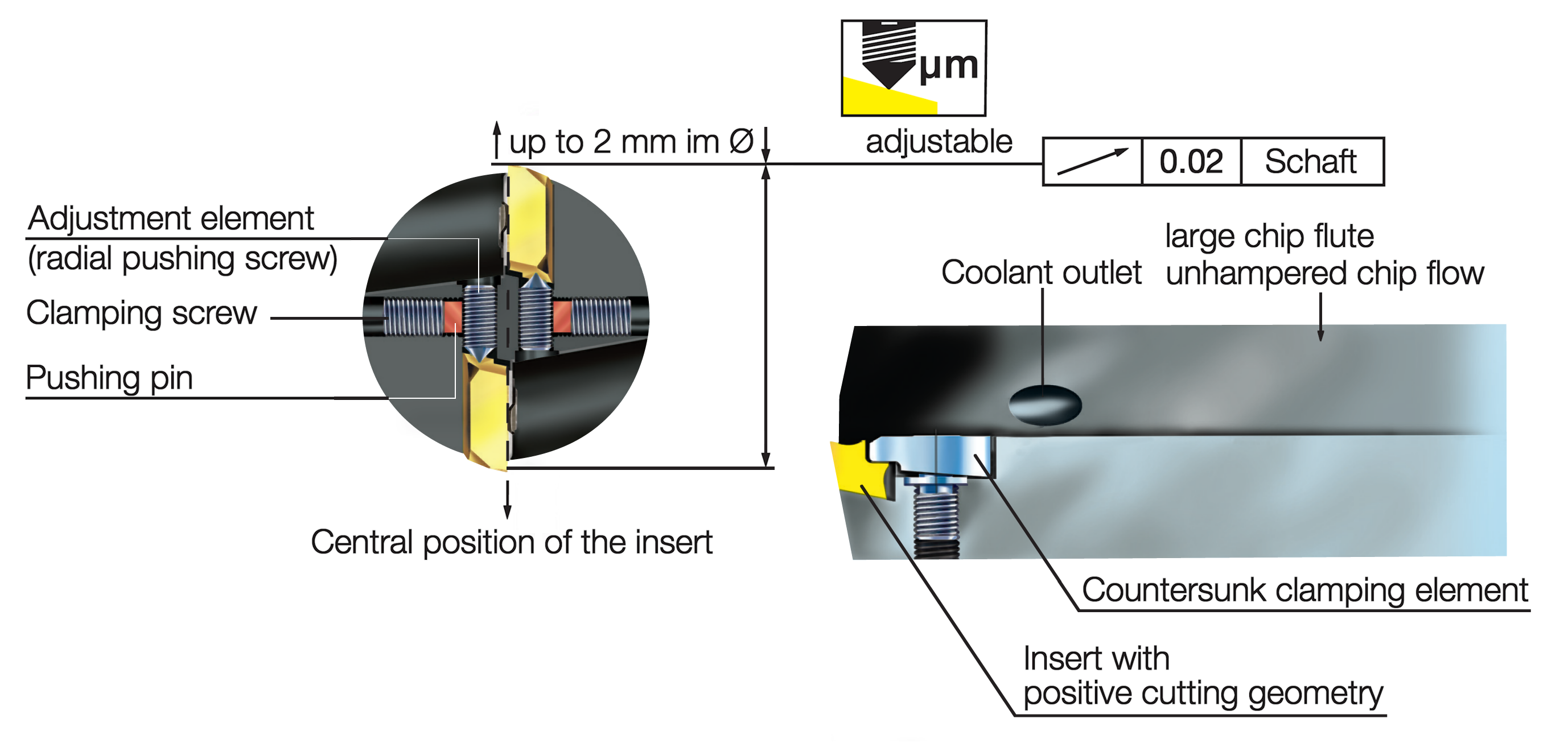

Highly, precise, special shaped pocket seat for excellent insert guidance Precision-ground insert Radial screw for μm-accurate adjustment Easy adjustment while inserts are clamped Easy handling Large range of adjustment |
 |
||
Similar to the fineboring tools with tapered screw adjustment are the robust clamping element located in the chip flute, the large chip flutes and an internal coolant supply. These aforementioned design elements are responsible for an excellent chip evacuation even when long-chipping material is machined. |
||||
