W1035   W1733   W2853   W4090  Tapered adjustment Radial adjustment Cartridges
 W1730   W2850   W3570   W3573
  Inserts precision ground
 for fineboring tools and cartridges

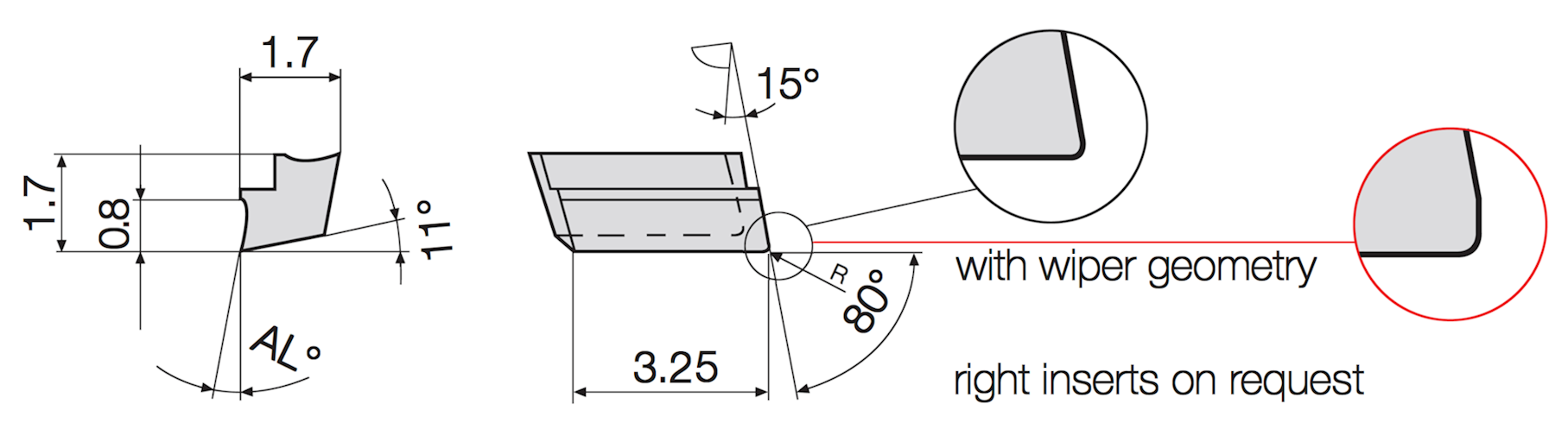

Insert W 1733-…. …. L


   Part nr.
20128		 Part nr.
20129		 Part nr.
20130		 Part nr.
20420		 Part nr.
20422		 Part nr.
20424
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
17,330 W1733-0008 1000L 0.05 10
17,331 W1733-0208 1000L 0.2 10
17,332 W1733-0008 1620L 0.05 16
17,333 W1733-0208 1620L 0.2 16
H H
       with wiper geometry Part nr.
20134		 Part nr.
20135		 Part nr.
20136		 Part nr.
20425		 Part nr.
20427		 Part nr.
20429
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
17,330 W1733-0008 1011L 0.05 10
17,331 W1733-0208 1011L 0.2 10
17,332 W1733-0008 1611L 0.05 16
17,333 W1733-0208 1611L 0.2 16
H
  Part nr.
20140		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
17,330 W1733-0000 0000L 0.05 0 H
17,331 W1733-0200 0000L 0.2 0 H
17,332 W1733-0400 0000L 0.4 0 H
H
       with wiper geometry Part nr.
20141		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
17,330 W1733-0000 0011L 0.05 0 H
17,331 W1733-0200 0011L 0.2 0 H
17,332 W1733-0400 0011L 0.4 0 H
   ex stock           on request
Ordering example: 1 piece W 1733-0008 1000 L G12 = Ordering number: 20420 17,330



We reserve the right to make technical changes.
