Zoller Hyperion

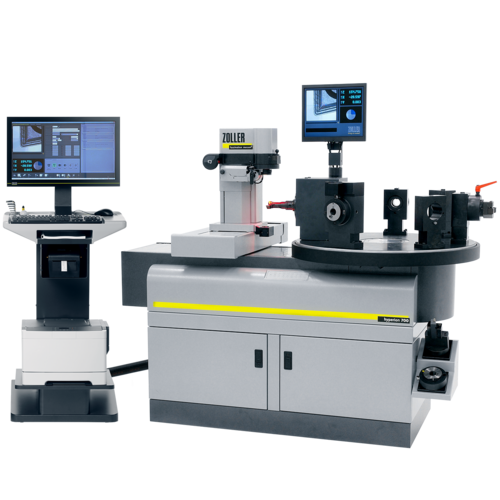

Whether you want to preset tools for turning machines or milling centers – with the ZOLLER »hyperion 300/500/700« a single measuring machine is sufficient for nearly all your different tool fixtures. The series can be adapted to your specific needs by various measuring ranges, three sizes of turret tables and the superior ZOLLER image processing system »pilot 3.0« absolutely ideal, if not only rotating tools, but also lathe cutting tools and tools for automatic multi-spindle lathes are to be preset and measured in your company.

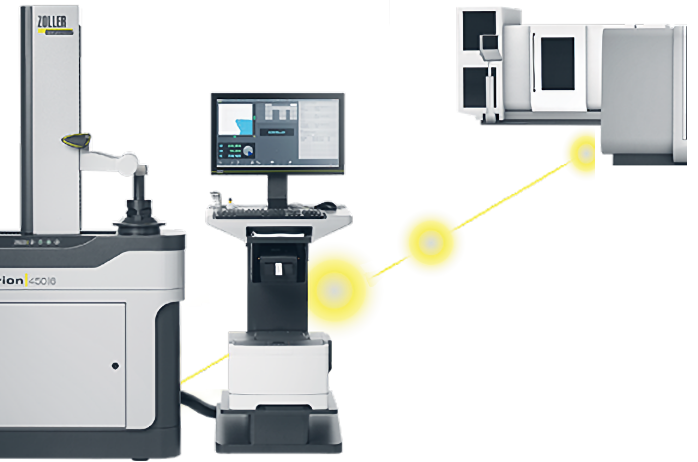

Varied – Can be networked with existing
production elements

Universal – A unique measuring device for
almost all different tool holders

Easy – Comfortable control elements and
user-friendly software

Time-saving – Revolving table equipment with
frequently used holders

Stable – Special alloy and stable construction

Efficient – Consistent use of brand products and
best price-performance ratio

Technical data	Length Z-axis	Transversal X-axis
»hyperion 300«	without turret table with turret table D 450	350 mm 350 mm	300 ± 150 mm 300 ± 150 mm
»hyperion 500«	without turret table with turret table D 745 with turret table D 900	500 mm 400 mm 325 mm	400 mm 400 mm 400 mm
»hyperion 700«	without turret table with turret table D 745 with turret table D 900	700 mm 600 mm 525 mm	500 mm 500 mm 500 mm

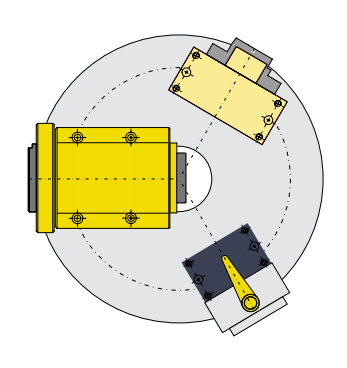

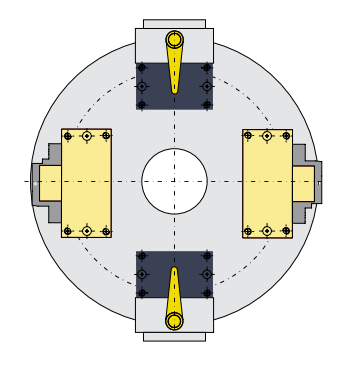

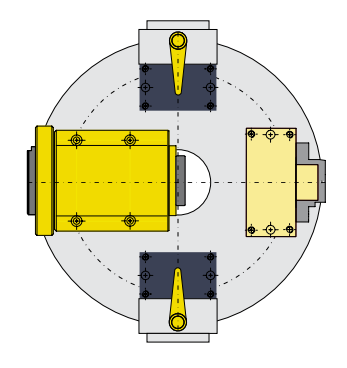

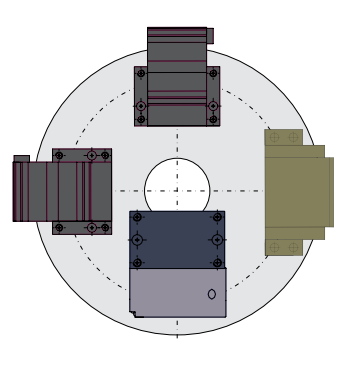

ZOLLER Turret Table		D 450: Mounting Examples

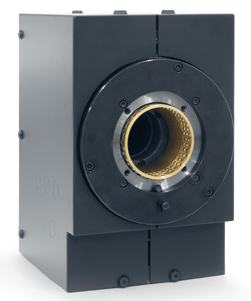

	Universal holding fixture HGH-UZ 2 basic holding fixtures GA 1 basic holding fixture GA-PP
	2 basic holding fixtures GA 2 basic holding fixtures GA-PP for power clamping
	Universal holding fixture HGH-UZ 1 basic holding fixture GA 1 basic holding fixture GA-PP

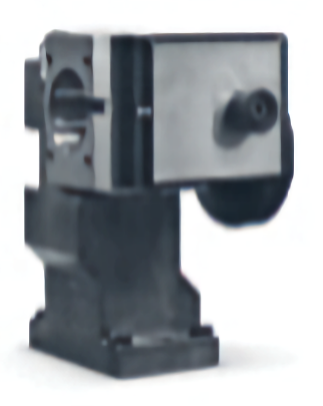

	Various tool holding fixtures for different tool systems, such as Schütte, Index, Traub TNL18 and many others

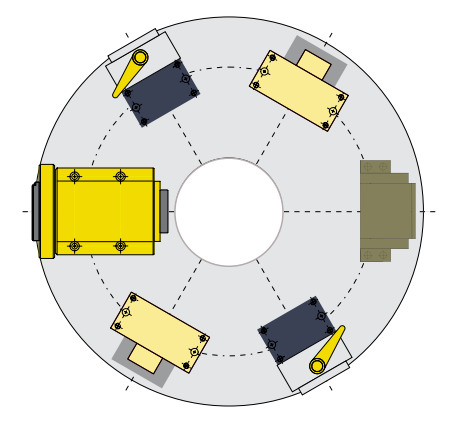

	D 745: Mounting Examples

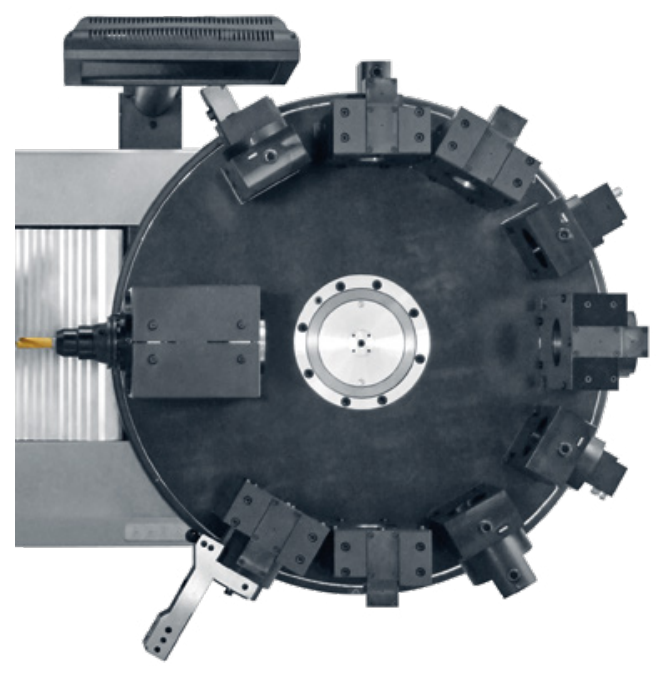

	6-fold pitch For different tool holding fixtures. By swiveling the turret table, the user always has the correct tool holding fixture in the measuring range.

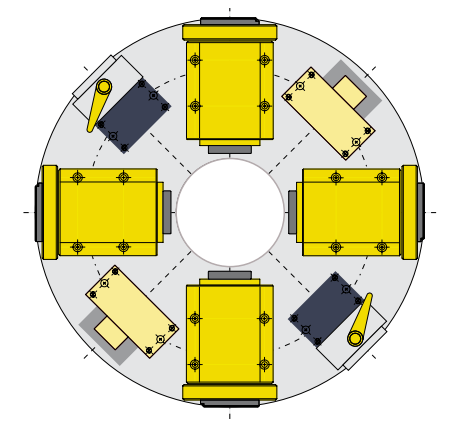

	8-fold pitch For 4 universal holding fixtures HGH-UZ, 2 basic holding fixtures GA-PP, 2 basic holding fixtures GA. The number of adapters and tool posts that can be used us virtually unlimited.

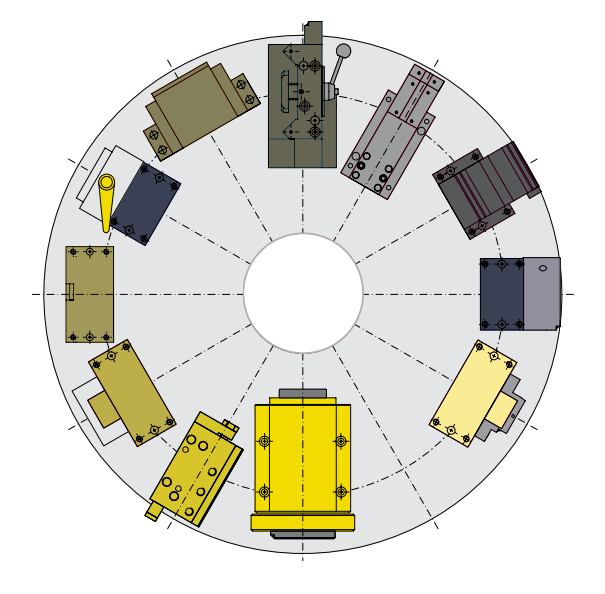

	D 900: Mounting Examples
	12-fold pitch Universal holding fixture HGH-UZ for rotating and stationary tools – special tool holding fixtures for Göltenbodt, Schütte, Traub, Index and others can also be fitted.

   Modern design and even more features:
   The software for all-inclusive tool
   measurement

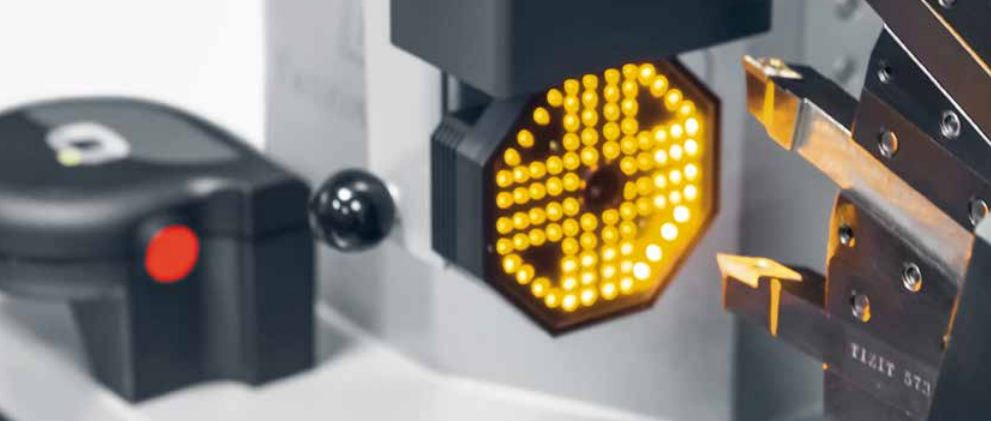

Cutting edge inspection	Center height measuring device	Optical adjustment
Automatic zero point selection	Tool identification	Data Transmission
Turret table loading D900 12-fold pitching	Turret table loading D745 8-fold pitching	Turret table loading D450 4-fold pitching

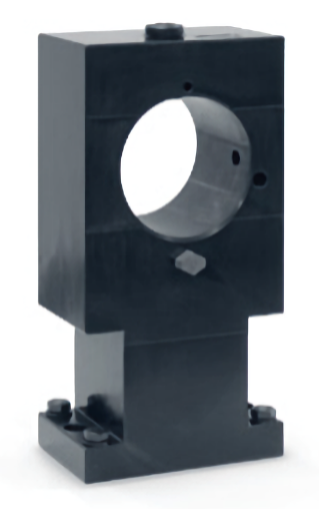

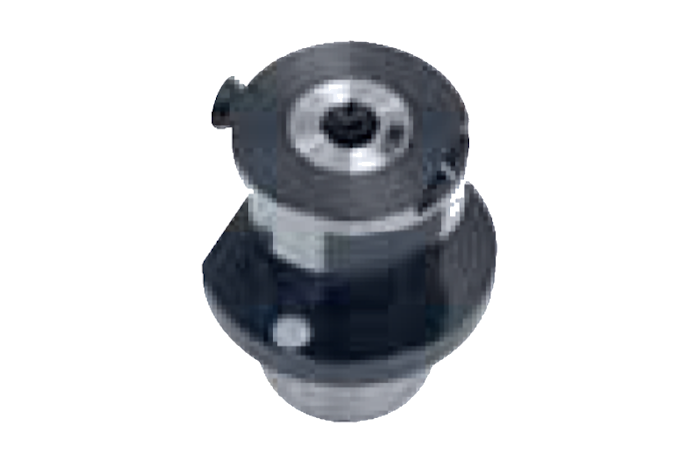

Option #1: Tool holding fixture »GA«	Option #1: VDI straight shank adapter	Option #1: HSK Adapter
Option #2: Tool holding fixture »GA-PP«	Option #2: VDI straight shank adapter
Option #3: Tool holding fixture »HGH-U«	Option #3: Tool post steep taper / front clamping	Option #3: Tool post HSK / front clamping

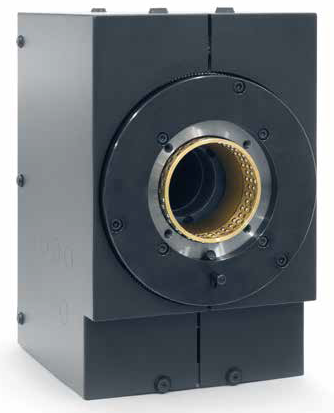

Option #4: Tool holding fixture »HGH-UZ«	Option #4: Membrane keyboard	Option #4: Tool post ISO
Option #4: Tool post HSK	Option #4: Clamping elements	Option #4: Tool post straight shank VDI
Option #5: Special holding fixture if required

We reserve the right to make technical changes.
