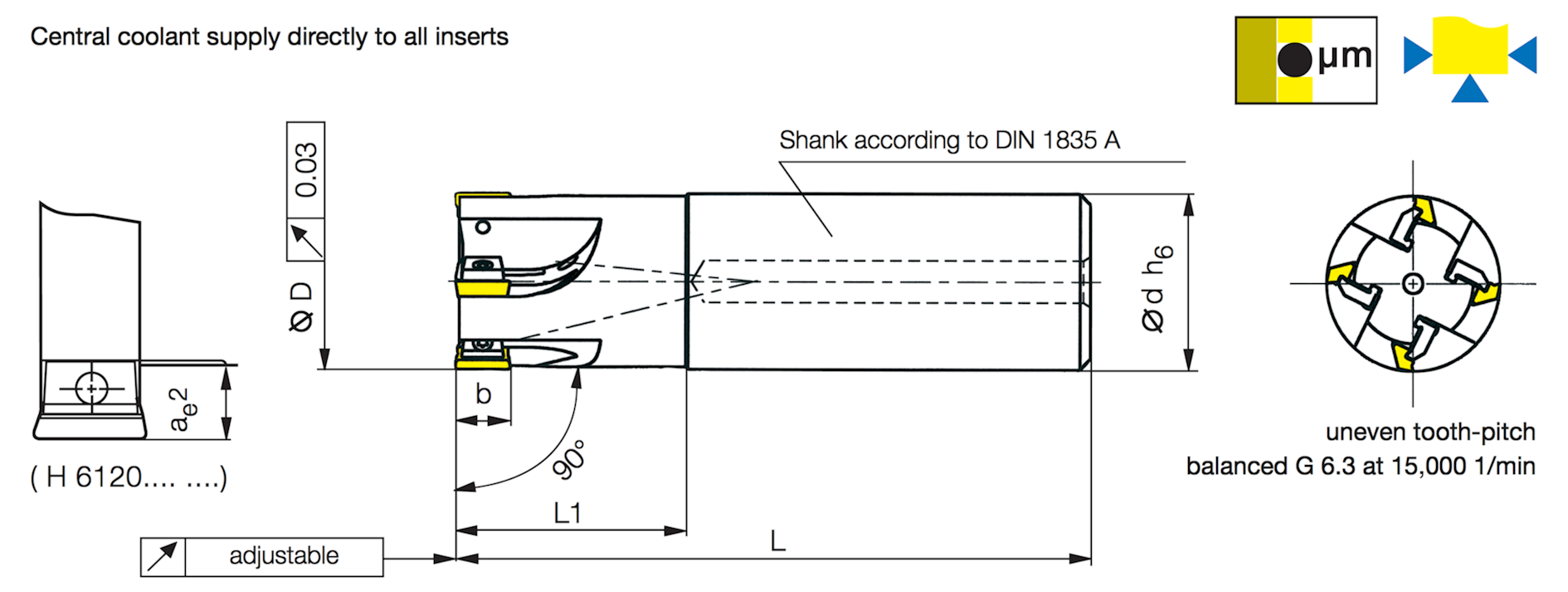

End Milling Cutters axial μm-accurate adjustable |
|
| Part nr. 20000 |
||||||||||||
| Code | Drawing nr. | Ø D | z | b | Ø d | L1 | L | ae2 | max. RPM | Weight (kg) | Inserts | |
| Light and medium machining | ||||||||||||
| 32,000 | H6120-3200 7025R | 32 | 4 | 12/7* | 25 | 69 | 125 | 2.8 | 50,000 | 0.42 | W612...N/R/L | |
| 40,000 | H6120-4000 7025R | 40 | 5 | 12/7* | 25 | 69 | 125 | 6 | 48,000 | 0.50 | ||
| 16,000 | H3108-1600 2616R | 16 | 2 | 7.8 | 16 | 26 | 75 | - | 85,000 | 0.10 | W3108...N | |
| 20,000 | H3108-2000 3320R | 20 | 3 | 7.8 | 20 | 33 | 85 | - | 65,000 | 0.20 | ||
| 25,000 | H3108-2500 3325R | 25 | 4 | 7.8 | 25 | 33 | 90 | - | 58,000 | 0.33 | ||
| 32,001 | H3108-3200 4325R | 32 | 6 | 7.8 | 25 | 43 | 100 | - | 50,000 | 0.40 | ||
| ex stock * PCD-inserts with cutting length of 7 mm On request all tools are also available as left-hand cutting version! Ordering example: 1 piece H 6120-3200 7025 R = Ordering number: 20000 32,000 |
||||||||||||
We reserve the right to make technical changes.
