| HAM 40-1600 (HAM 445) solid carbide router (upcut) |
Engineering data
• right hand fluted, right hand cutting (upcut) • special diamondprofiled teeth Diamond coating for machining of graphite on request |
 |
| Material |  |
 |
 |
|||||
| 40-1600 | very suitable | limited suitable | ||||||
 cutting materialsolid carbide ultra micro grain |
 number of teeth - 8 to 12 |
 helix angle22°-25° right hand fluted |
 HAM Standard |
 Type for soft materials |
 Machining Direction |
 Cylindrical Shank |
 G-Pointstandard end cut |
| Ø d1 (0.02/-0.02) mm |
l2 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
Ø d1 (0.02/-0.02) mm |
l2 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
|
| 4 | 15 | 40 | 8 | 4 | 10 | 30 | 90 | 10 | 10 | |
| 5 | 20 | 50 | 10 | 5 | 12 | 36 | 120 | 10 | 12 | |
| 6 | 20 | 50 | 10 | 6 | 12.7 | 40 | 120 | 10 | 12.7 | |
| 6.35 | 25 | 60 | 10 | 6.35 | 14 | 36 | 92 | 10 | 14 | |
| 8 | 25 | 60 | 10 | 8 | 16 | 36 | 92 | 12 | 16 | |
| 9.52 | 25 | 60 | 10 | 9.52 | 20 | 45 | 104 | 12 | 20 |
| Further geometries and point geometries on request |
 A-Point straight end no end cut |
 B-Point fishtail end cut |
 D-Point drill point |
 E-Point straight end 8 - 12 cutting edges |

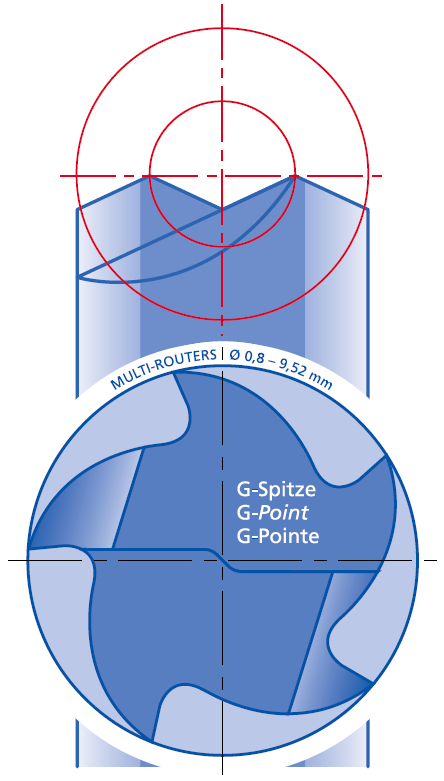

 G-Point standard end cut |
 |
We reserve the right to make technical changes.
