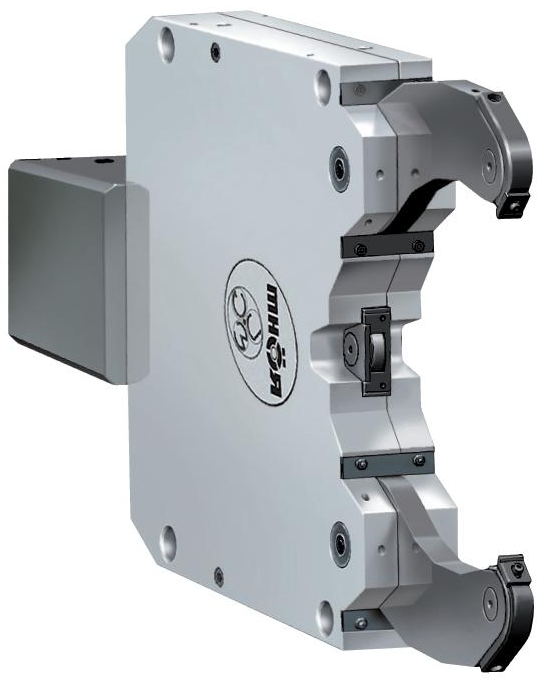

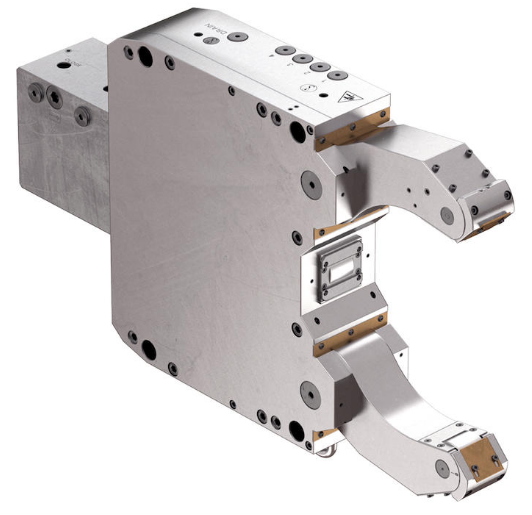

Self-centering Steady Rests SLZK - slim clamping arms   |
| APPLICATION Support of slender shafts with narrow intermediate distances for rational turning and end machining optimal for crankshafts and cam shafts. TYPE Version with extra slim clamping arms. TECHNICAL FEATURES |
| - Central lubrication or manual lubrication possible, depending on the operating conditions - Standard version available with cylindrical rollers - Available with and without chip protection - Prepared for end position check (limit switch not included in the scope of delivery) CUSTOMER BENEFITS » Can be flexibly used thanks to support option in narrow in-between spaces » Large clamping range without change elements » Operational safety thanks to safety valve, even if pressure drops » Compact and sturdy design for variable use » High centering precision and repeatability thanks to proven cam lever system » Resilient chip protection for optimal workpiece wiping (for version "with chip protection") » Purge air connection to prevent penetration of dirt inside the steady rest |
We reserve the right to make technical changes.
