   power operated |

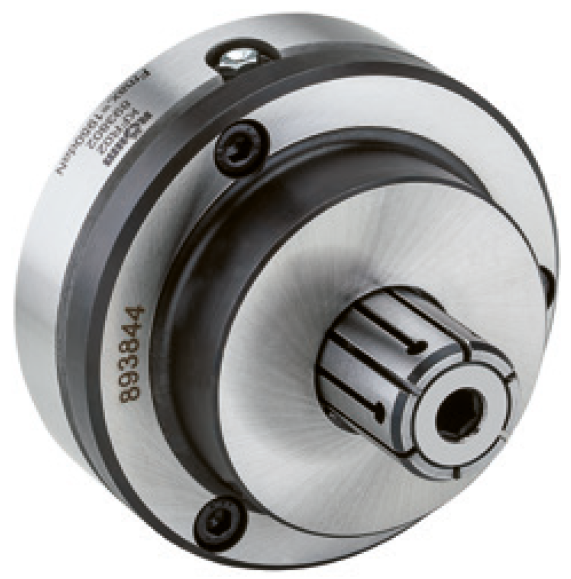

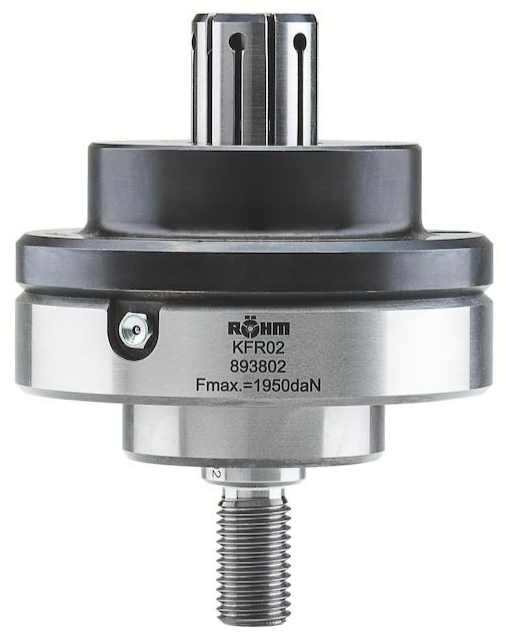

Cartridge Mandrel KFR - force-actuated   |
APPLICATION Internal clamping of round workpieces. Turning, grinding and toothing operations, as well as for balancing and measuring. Ideal for short clamping lengths / workpieces. TYPE Force-actuated. Without axial tightening. Clamping sleeves optionally vulcanized. Convertible to MFR (required new intermediate piece). TECHNICAL FEATURES - Hardened, low-wear design - Integrated lubrication - Air sensing prepared |
 |
| CUSTOMER BENEFITS » No workpiece tension thanks to def. axial tension against the workpiece stop » High concentricity, axial run-out and repeatability » Low-maintenance |
We reserve the right to make technical changes.
