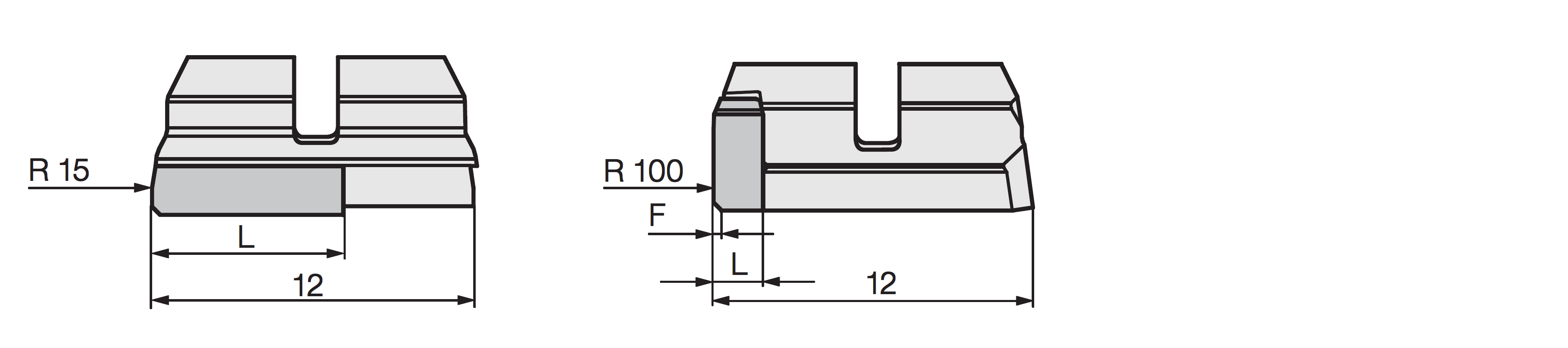

Wiper-insert W 612.-…. …. R PCD |
with radius (R) or with chamfer (F) and wiper geometry (PF)
| PCD | Part nr. 20313 |
Part nr. 20314 |
|||||||||
| Code | Drawing nr. | L | R | AL° | F | PCD 10 | PCD 30 | ||||
| 61,277 | W6127-0315 0045R | 7 | 15 | 0 | 0.3x45° | ||||||
| 61,200* | W6120-1000 0445R | 1.8 | 100 | 0 | 0.3x45° | ||||||
| *only with clamping set E 5032 | |||||||||||
|

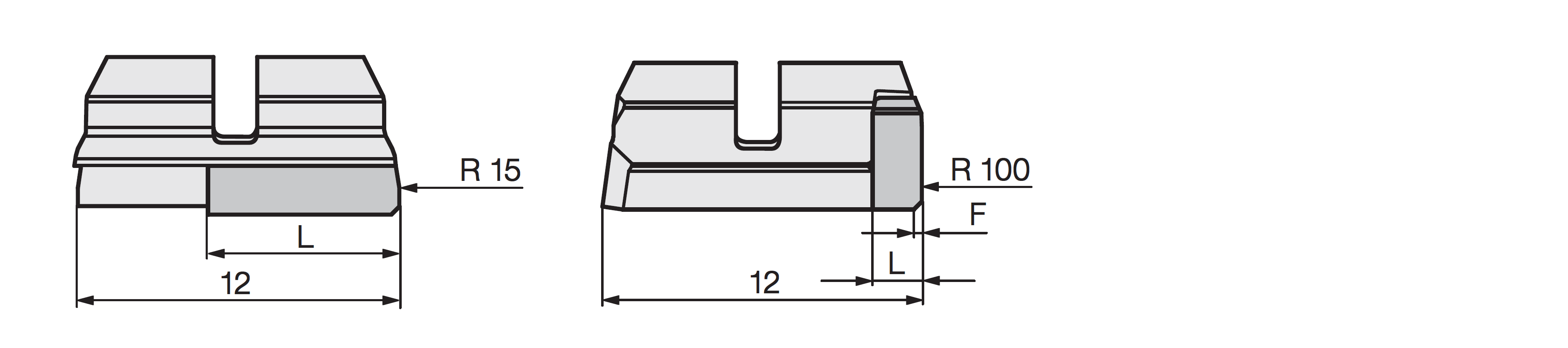

Wiper-insert W 612.-…. …. L PCD |
with radius (R) or with chamfer (F) and wiper geometry (PF)
| PCD |
Part nr. 20319 |
Part nr. 20320 |
|||||||||
| Code | Drawing nr. | L | R | AL° | F | PCD 10 | PCD 30 | ||||
| 61,277 | W6127-0315 0045L | 7 | 15 | 0 | 0.3x45° | ||||||
| 61,200* | W6120-1000 0445L | 1.8 | 100 | 0 | 0.3x45° | ||||||
| *only with clamping set E 5482 | |||||||||||
| ex stock in short time available Ordering example: 1 piece W 6127-0315 0045 R PCD = Ordering number: 20313 61,277 |
|||||||||||
We reserve the right to make technical changes.
