| Tool Table | |||||
| Cassette without Blade1 | |||||
| Type | For bores > | Deburr- | Blade types | Part No. | Spring Index |
| Ød | ØD | C6 | |||
| C6 | 10.0 | to be calculated | see below | C6-O-0900/ | see below |
| 1) The COFA cassettes will be supplied without blades. The blades have to be ordered separately always. | |||||

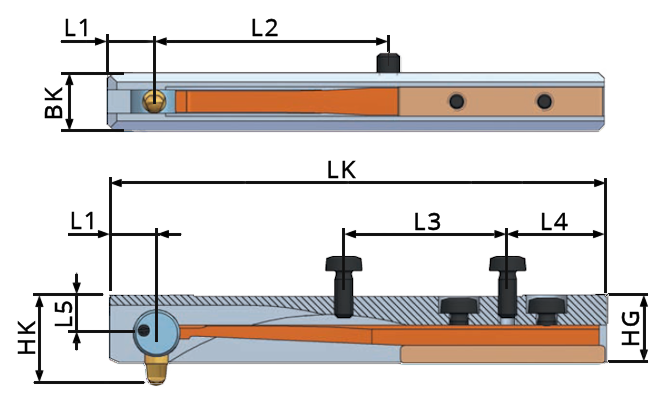

| Dimension Table | |||||||||
| Type | BK | HG | LK | HK | L1 | L2 | L3 | L4 | L5 |
| C6 | 5.0 | 5.8 | 42.5 | M 7.6 | 4.0 | 20.0 | 14.0 | 8.5 | 3.3 |
| C6 | L 7.8 | - | |||||||

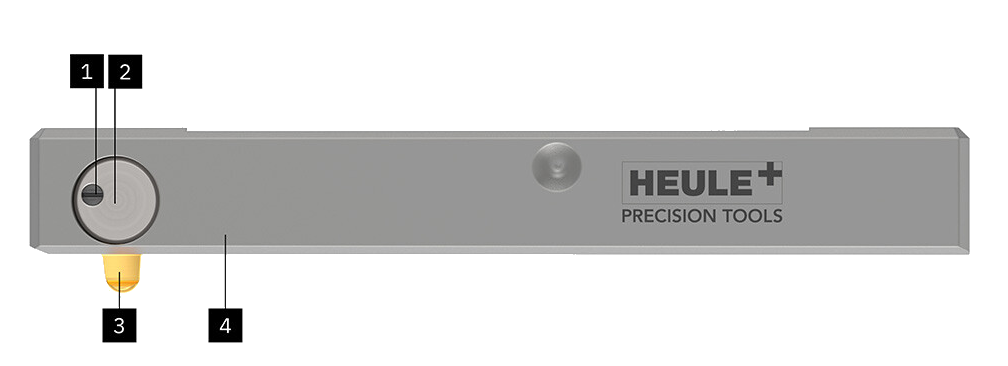

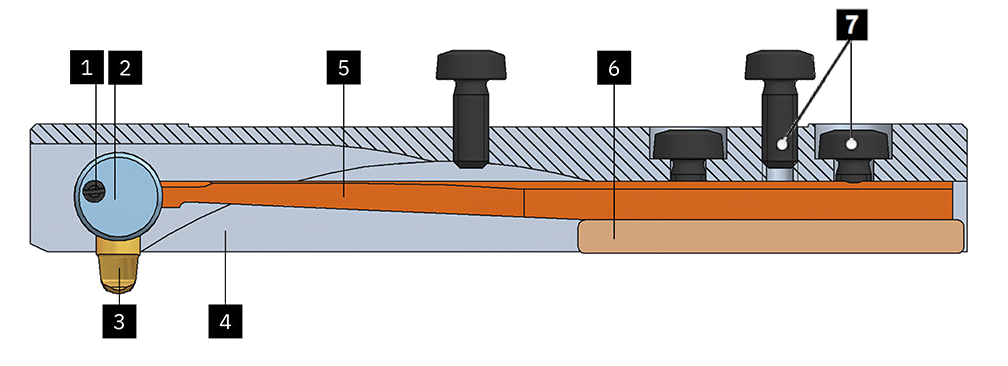

| Spare Parts | ||
| Pos. | Description | Part No. |
| 1 | Roll pin | C6-E-0003 |
| 2 | Blade holder | C6-E-0001 |
| 3 | COFA blade | see below |
| 4 | Tool body | C6-G-0900 |
| 5 | Bending spring | see below |
| 6 | Fixing strip | GH-C-E-0812 |
| 7 | Screw | GH-H-S-0803 |
| Threaded pin M2x2 | GH-H-S-0137 | |
| Spring Index | |||
| Type | Bending spring | Part No. | Application |
| W2 | soft (softer than W1) | C6-E-0006 | Special applications |
| W1 | soft (softer than W) | C6-E-0007 | Special applications |
| W | soft | C6-E-0008 | Aluminium alloys, copper zinc alloys, soft mat. |
| H | hard | C6-E-0009* | Standard applications, all steel types |
| S | super hard | C6-E-0010 | Hard and tough materials |
| Z | extra hard (harder > S) | C6-E-0011 | Very tough materials or very large burr formations |
| Z1 | extra hard (harder > Z) | C6-E-0012 | Special applications |
| Z2 | extra hard (harder > Z1) | C6-E-0013 | Special applications |
| Z3 | extra hard (harder > Z2) | C6-E-0014 | Special applications |
| Blades | ||||
| Part No. forward and backward cutting Coating T |
Coating D |
|||
| Angle | M | L | M | L |
| 10° | C6-M-0007-T | C6-M-0002-T | C6-M-0007-D | C6-M-0002-D |
| 20° | C6-M-0006-T* | C6-M-0001-T | C6-M-0006-D | C6-M-0001-D |
| 25° | C6-M-0008-T | C6-M-0003-T | C6-M-0008-D | C6-M-0003-D |
| 30° | C6-M-0009-T | C6-M-0004-T | C6-M-0009-D | C6-M-0004-D |
| Part No. backward cutting only Coating T |
Coating D |
|||
| Angle | M | L | M | L |
| 10° | C6-M-0027-T | C6-M-0022-T | C6-M-0027-D | C6-M-0022-D |
| 20° | C6-M-0026-T | C6-M-0021-T | C6-M-0026-D | C6-M-0021-D |
| 25° | C6-M-0028-T | C6-M-0023-T | C6-M-0028-D | C6-M-0023-D |
| 30° | C6-M-0029-T | C6-M-0024-T | C6-M-0029-D | C6-M-0024-D |
| *Standard items / Please enquire about stock or delivery times for all non-standard blades. Explanations to coatings T: Coating for steel, titanium, Inconel D: Coating for aluminium alloys only |
||||
| Dimension Table | ||||
| COFA C6 | ||||
| Size | M | L | ||
| ØD | Ø2.0 h6 | Ø2.0 h6 | ||
| A | 6.05 | 6.25 | ||
