| GH-K with 3 Blades | GH-K with 1 Blade |
  |
| Tool Table | ||||||||
| Tool without blade | Spare Parts | |||||||

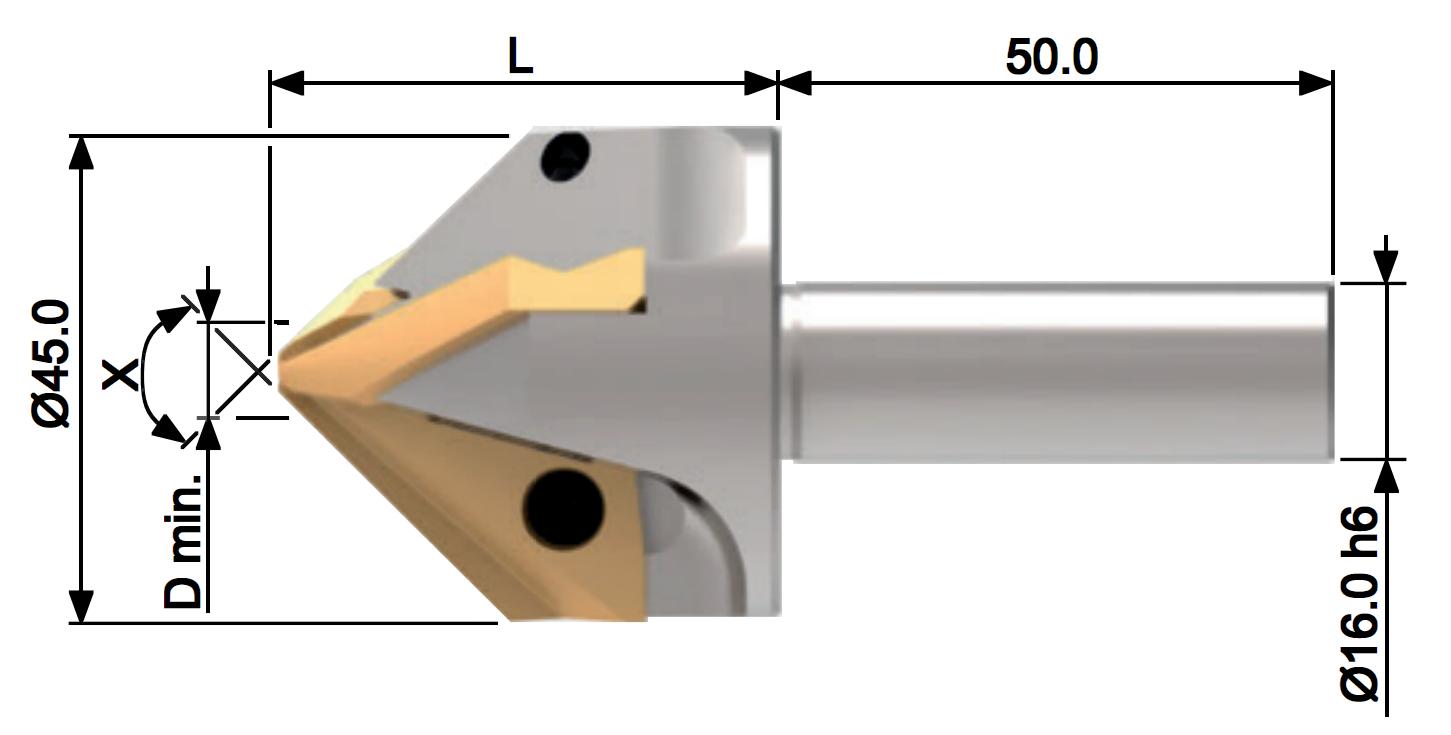

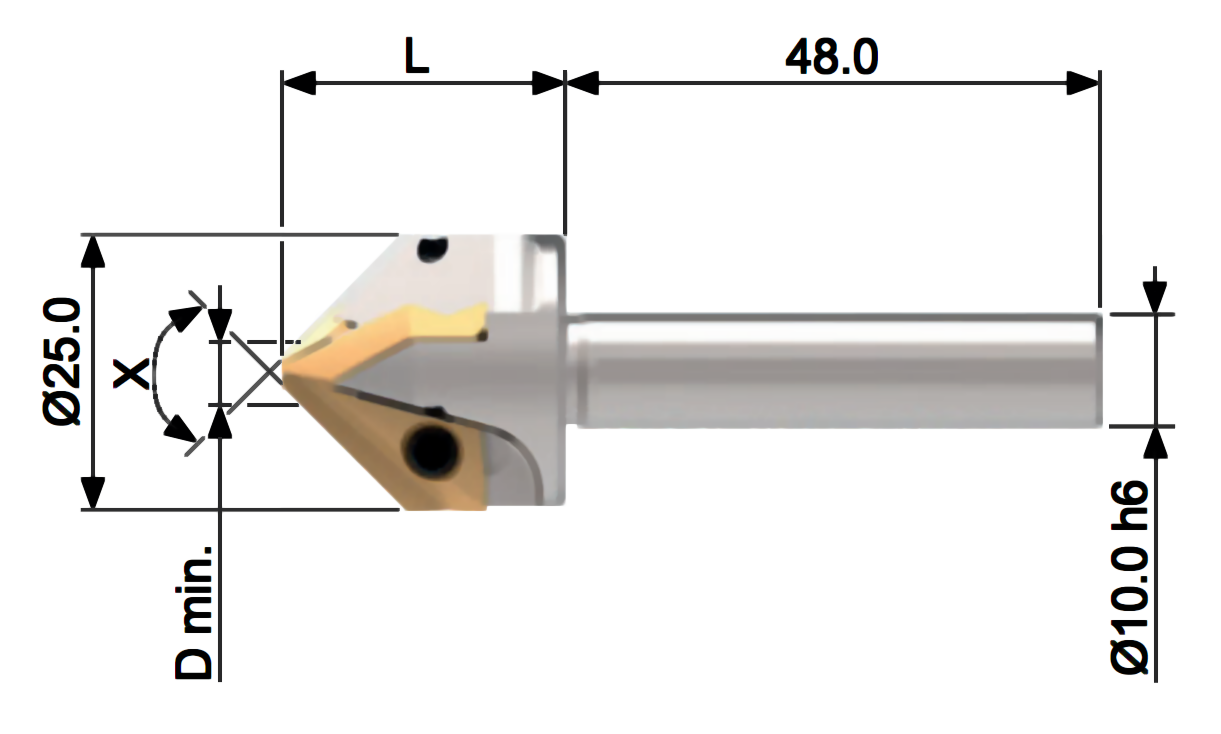

| Series | Angle X | D min. | L | Part No. | Shim1 | Torx Screw | Torx Driver | |
| 25 | 90° | Ø3.0 | 26.0 | GH-K-B-0001 | GH-K-U-0001 | GH-H-S-0008 | (T9) | GH-H-S-2014 |
| 60° | Ø3.0 | 34.0 | GH-K-B-0601 | GH-K-U-0004 | GH-H-S-0008 | (T9) | GH-H-S-2014 | |
| 45 | 90° | Ø4.0 | 45.0 | GH-K-B-0012 | GH-K-U-0002 | GH-H-S-0009 | (T15) | GH-H-S-2016 |
| 60° | Ø9.0 | 56.0 | GH-K-B-0612 | GH-K-U-0005 | GH-H-S-0009 | (T15) | GH-H-S-2016 | |
| 1) Shim to change the cutting geometry 0.05 mm thick. With this geometry change you are able to tune the tool for different materials. These shims have to be placed between blade and tool body. |
||||||||
| Blades / Accessories | |||||
| Set of Three | Blades | Re-Sharpening Device | |||
| Series | Angle X | Part No. (Coating T) | Part No. | ||
| 25 | 90° | GH-K-M-0017 | GH-K-V-0020 | ||
| 60° | GH-K-M-0617 | GH-K-V-0023 | |||
| 45 | 90° | GH-K-M-0018 | GH-K-V-0021 | ||
| 60° | GH-K-M-0618 | GH-K-V-0024 | |||
| Explanations to coatings T: Coating for steel, titanium and Inconel |
|||||
| Spare Parts | ||
| Pos. | Description | |
| 1 | Tool body | Made of alloyed heat treated steel |
| 2 | Torx screw | |
| 3 | Blade | Exchangeable, can be re-sharpened, Made of carbide provided with a coating |
| 4 | Internal coolant | |
We reserve the right to make technical changes.
