Röhm Drilling Machine Vices DPV 3-W

Drilling Machine Vices
DPV 3-W

APPLICATION
For securely clamping workpieces on drills and measuring machines.

TYPE
Clamping system mechanical , manually operated.
Standard version.
3 set-up options thanks to two additional, perpendicularly machined support surfaces: bottom, right and front.

TECHNICAL FEATURES
- Solid and handy version
- Body made out of cast metal
- Movable jaw, guided on side
- Solid clamping jaw with three vertical prisms and one horizontal prism
- Both jaws with support surface for clamping flat workpieces
- Jaws and spindle gunmetal-finished
- Long mounting slots

CUSTOMER BENEFITS
» Entire clamping range within reach by turning
» Constant design length, spindle moves protected in the handle
» The thread spindle is covered by a protecting sleeve
» Mounting slots

A12

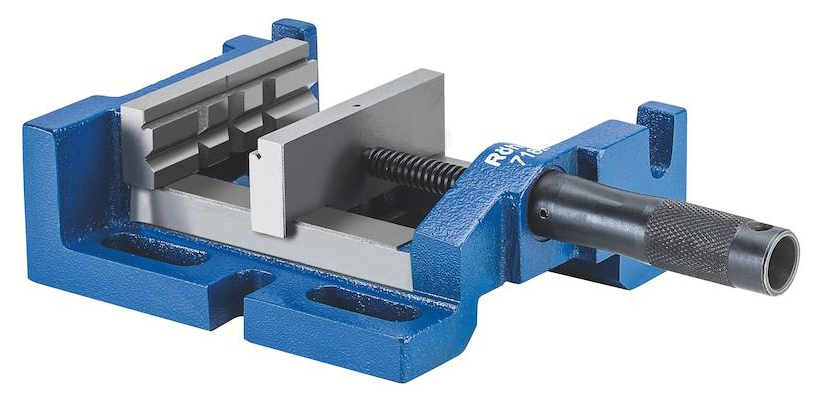

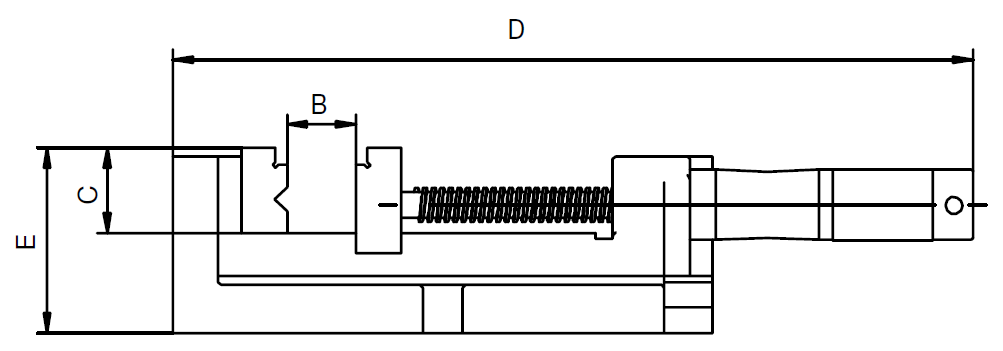

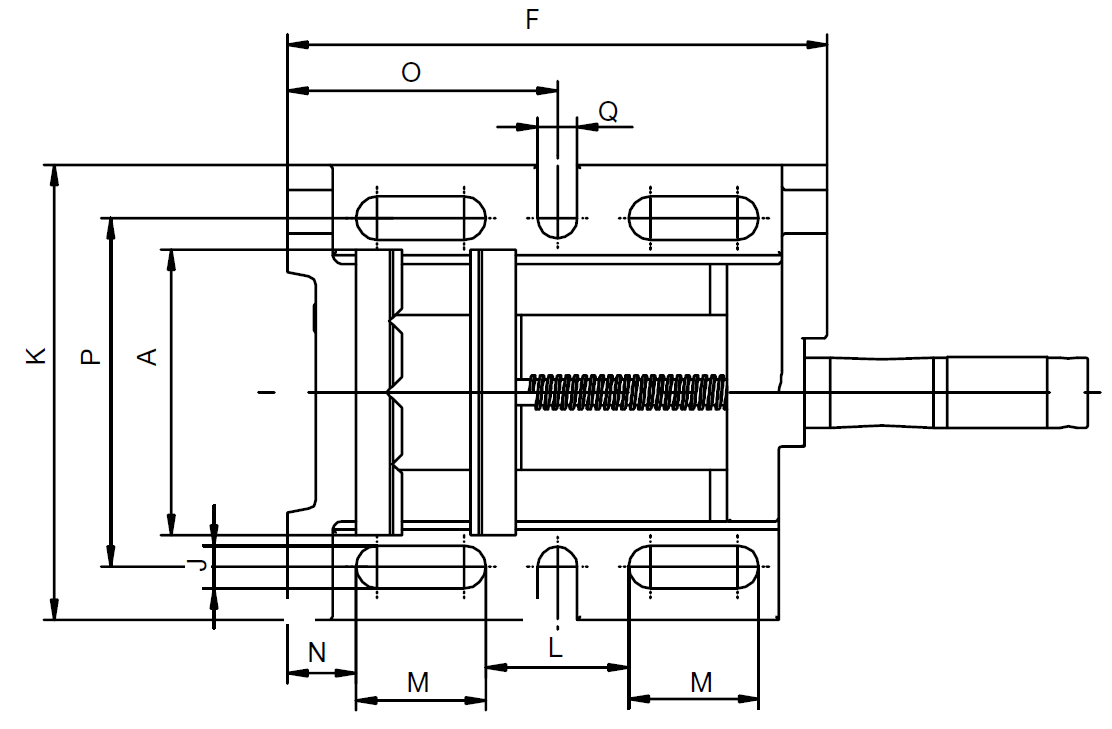

DPV 3-W, with V-jaw and normal jaw SBO

Item No.	007182
Size	2
Jaw width A mm	100
Clamping capacity B mm	93
Jaw height C mm	30
Total length D mm	279
Total height E mm	65
Total height F mm	189
Total height J mm	15
Total height K mm	159
Total height L mm	50
Total height M mm	45
Total height N mm	24
Total height O mm	95
Total height P mm	122
Total height Q mm	14
Weight kg	5.1

Accessories BMS

A37
V-jaw and normal jaw SBO, soft and gunmetal-finished with work support for DPV

Item no.	Scope of delivery	Size	Width mm
1128341	set	1	85
1128342	set	2	100
1128344¹⁾	set	2	100
1128343	set	3	120

¹⁾ Only for DPV 3-W

We reserve the right to make technical changes.
