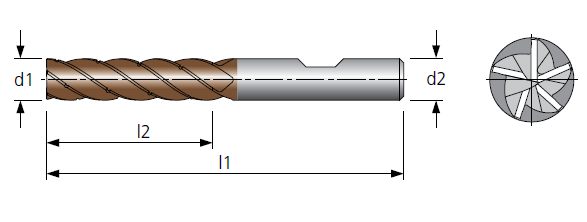

HAM 40-5291 solid carbide end mill

Engineering data
• special geometry with unequal helix
• special chip breaker for short chips
• high chipping volume
• very smooth running
• centre cutting
• cutting area geometrical balanced

corner chamfer	d1	b
	≥ Ø 10	0.02 x d1

Material

40-5291

very suitable

limited suitable

tool design and mould and die production	cutting material solid carbide ultra micro grain	number of teeth - 5	helix angle 38° right hand fluted	HAM Standard	Type normal	Machining Direction	Clamping Fixture Weldon
Special-polishing process	High Speed Cutting	High Performance Cutting

Ø d1 (e8) mm	l2 mm	l1 mm	Ø d2 (h6) mm	Ø d1 (e8) mm	l2 mm	l1 mm	Ø d2 (h6) mm
10	40	86	10	16	64	125	16
12	48	100	12	20	80	145	20

Particularly suitable for trochoidal and highspeed milling

Trochoidal milling

hm = constant (hm = mean chip thickness)

Overlapping of feed motion with a circular movement

We reserve the right to make technical changes.
