Zoller Redomatic

ZOLLER »redomatic« is the universal presetting, measuring and heat-shrink machine with a unique automatic length adjustment device. Especially designed for heat-shrinking of tools to nominal length while at the same time presetting and measuring tools of all kinds. With the automatic length adjustment device »ASZA« tools can be shrunk to at least ±10 μm accuracy guarantee – quick, easy, automatic and independent of the operator. You only need 5 seconds to heat-shrink and 30 seconds to cool a tool!

With ZOLLER shrink tools are quickly ready for use. The measuring device software »pilot«, the carrier system and the permanent monitoring of the work steps facilitate fast and reliable work.

The »redomatic« shrink wrapping process takes less than 60 seconds. This short process time is achieved even by inexperienced operators after only a short training period. All components have a fixed place on the carrier system.

The »pilot« measuring instrument software guides the operator through all work steps and controls many processes fully automatically. For each work step, the software names the component that is required and displays on the screen where the component is located on the carrier system.

Technical data	Max. tool length Z	Measuring range X axis	Max. clampable shank Ø	Max. tool diameter D

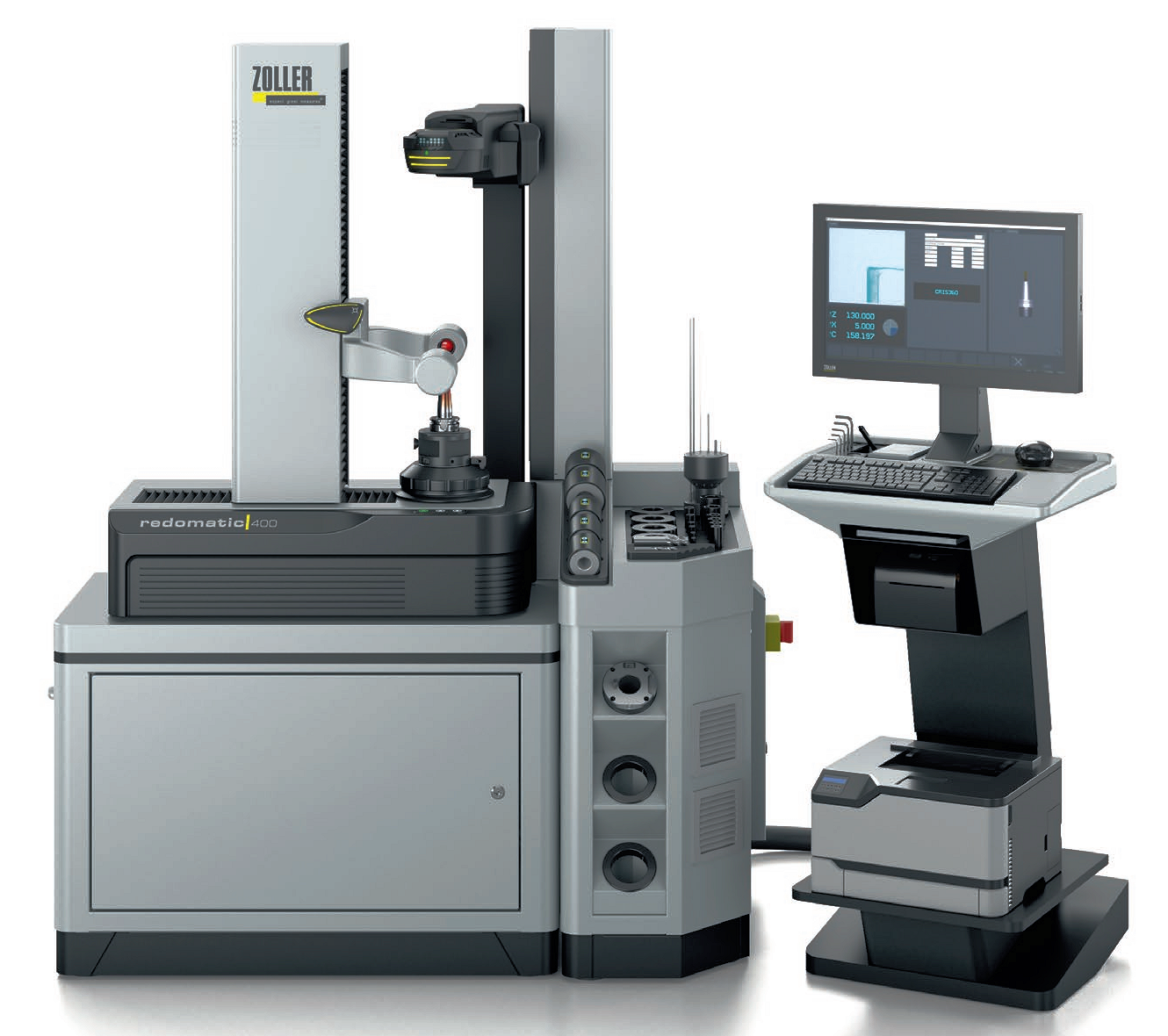

»redomatic 400«	600 mm	210 / 310 mm	32 mm	420 / 620 mm

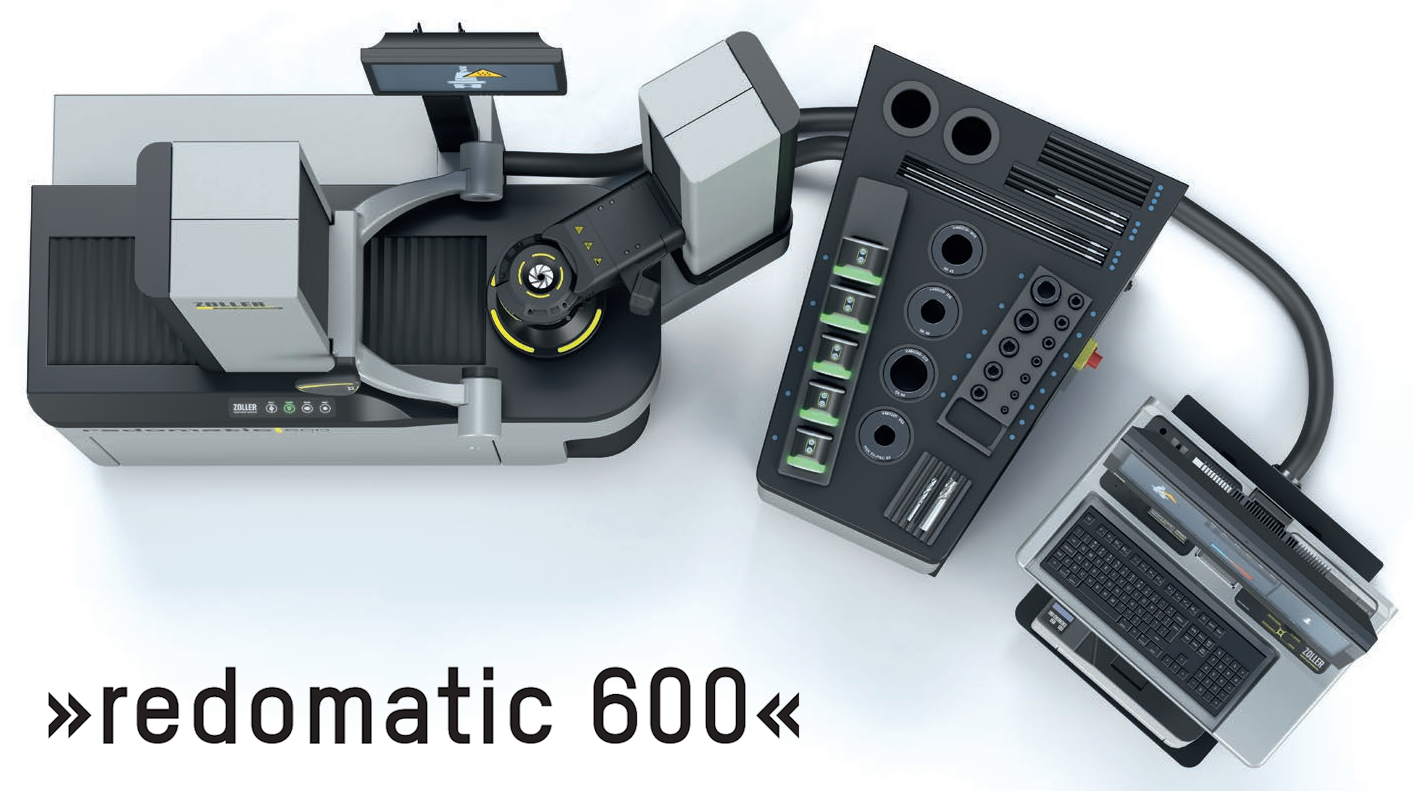

»redomatic 600«	600 / 800 / 1000 mm	270 / 300¹ / 400¹ mm	32 / 50² mm	540 / 600¹ / 800¹ mm
¹ Can only be lowered 570 mm in conjunction with slide unit, maximum clampable shaft diameter 32 mm ² Requirement 22 kVA induction coil

   Modern design and even more features:
   The software for all-inclusive tool
   measurement

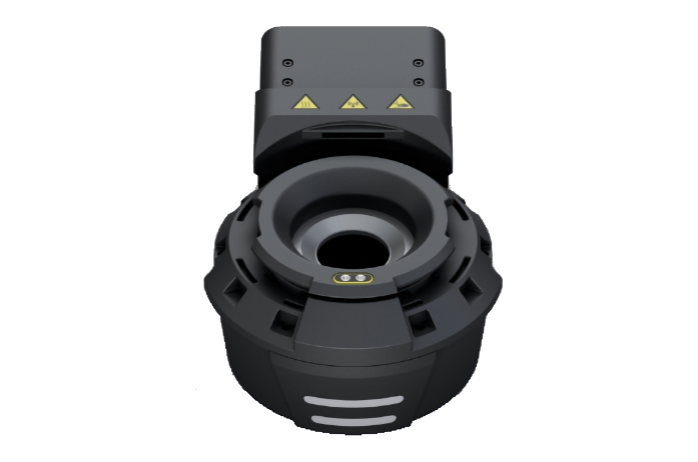

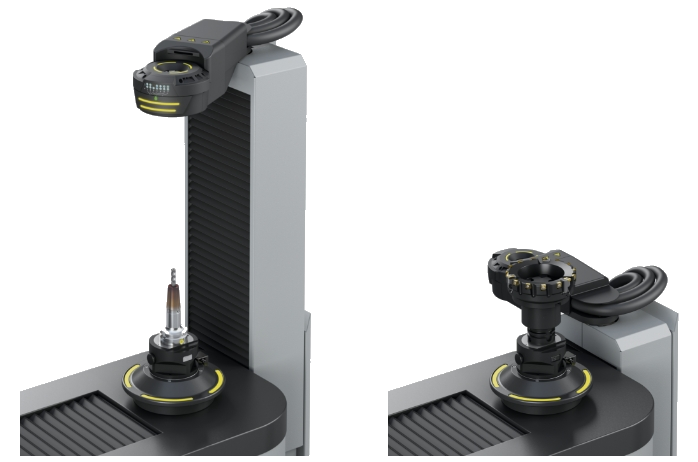

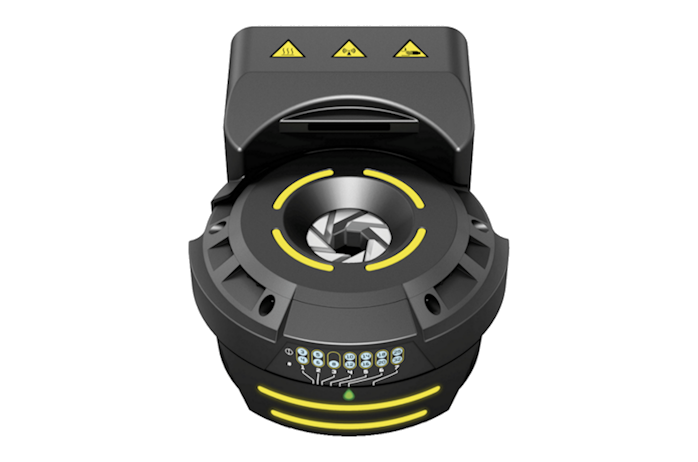

22 kVA induction coil with quick-change interface	13 kVA induction coil with »varOct« shielding system	Retractable slide unit

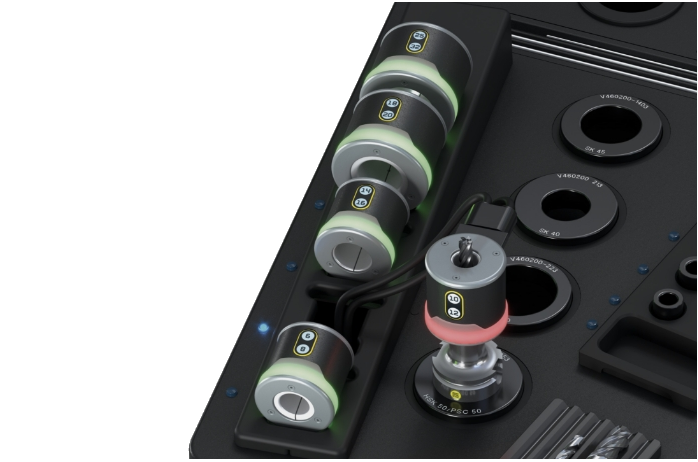

Cooling bells with »coolbyLight« user guidance	Length adjustment device »ASZA/MMS«	Length adjustment device »ASZA«

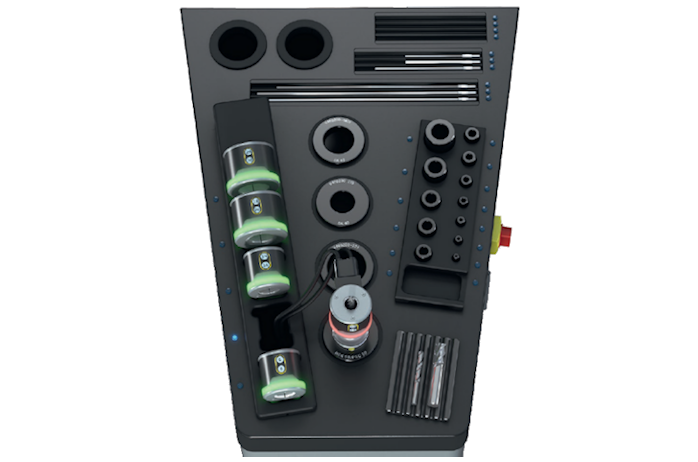

Carrier unit	Tool identification	Data Transmission

»ace« High-Precision Spindle

fixture »GA«

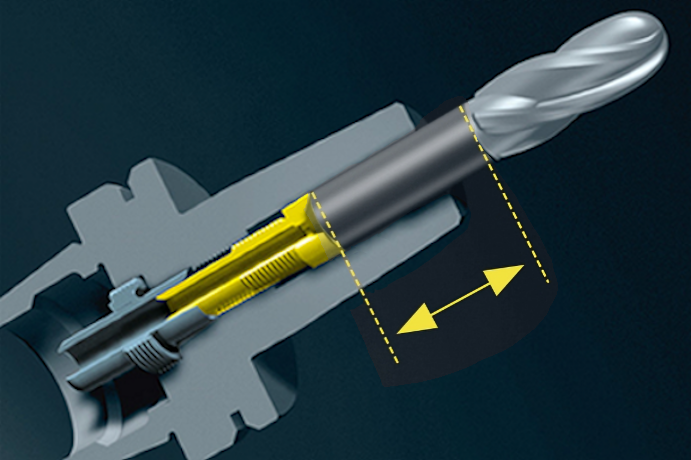

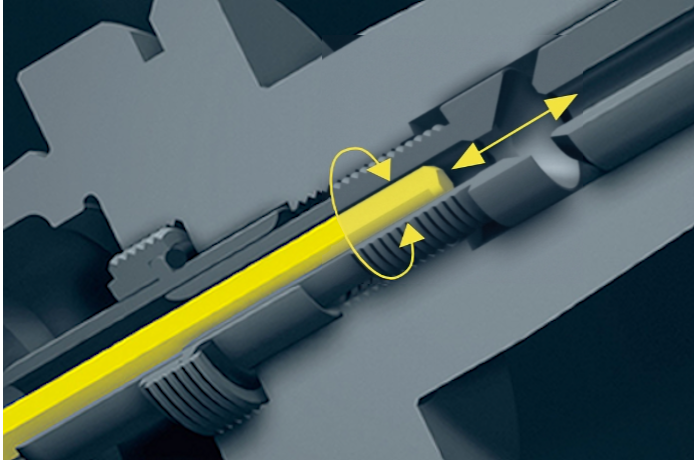

»asza« length setting system

shank adapter

We reserve the right to make technical changes.
