| Tool Table | |||||
| Cassette without Blade1 | |||||
| Type | For bores > | Deburr- | Blade types | Part No. | Spring Index |
| Ød | ØD | C8 /C12 | |||
| C8 | 14.0 | to be calculated | see below | C8-O-0900/ | see below |
| C12 | 20.0 | to be calculated | see below | C12-O-0900/ | see below |
| 1) The COFA cassettes will be supplied without blades. The blades have to be ordered separately always. | |||||

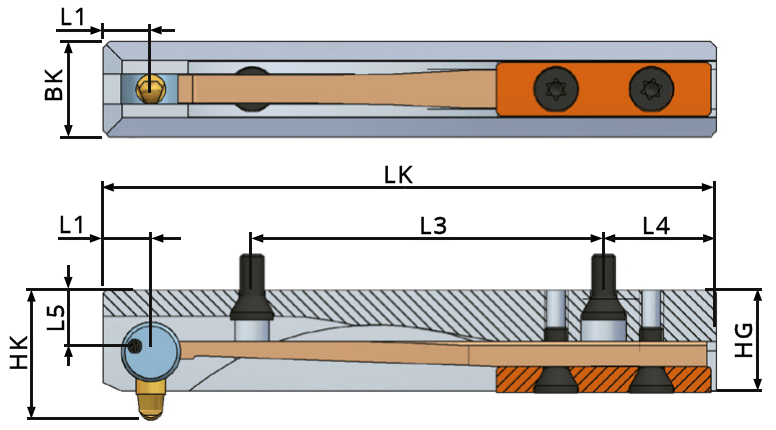

| Dimension Table | |||||||||
| Type | BK | HG | LK | HK | L1 | L2 | L3 | L4 | L5 |
| C8 | 8.0 | 8.5 | 51.5 | M 10.6 | 4.0 | - | 29.6 | 9.5 | 5.2 |
| C8 | L 11.0 | - | |||||||
| C12 | 10.0 | 13.0 | 60.0 | M 15.6 | 7.5 | - | 35.0 | 8.5 | 7.7 |
| C12 | L 16.2 | - | |||||||

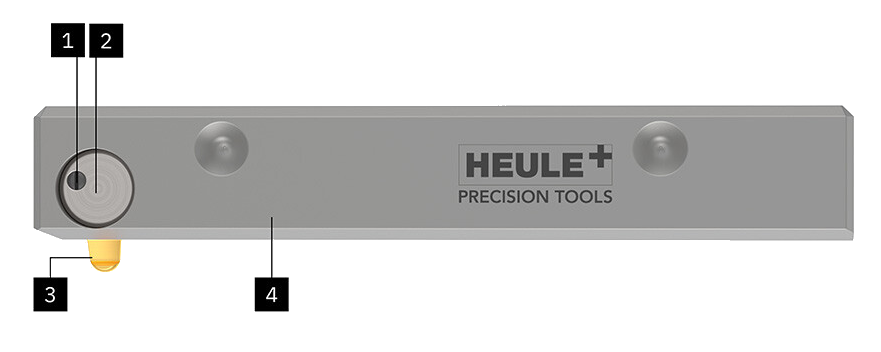

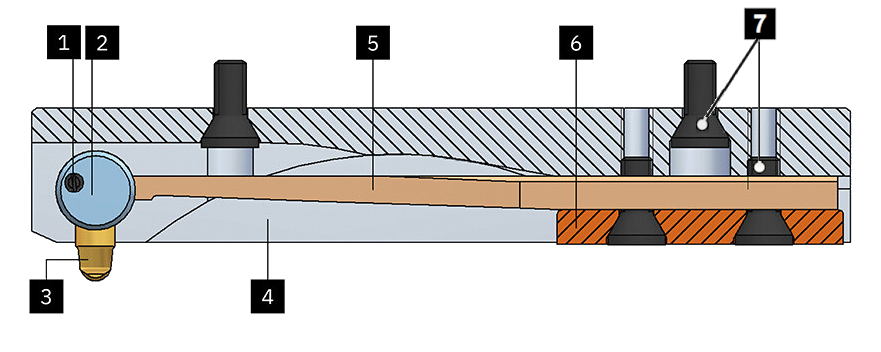

| Spare Parts | |||
| Pos. | Description | Part No. C8 | Part No. C12 |
| 1 | Roll pin | C8-E-0003 | C12-E-0003 |
| 2 | Blade holder | C8-E-0001 | C12-E-0001 |
| 3 | COFA blade | see below | see below |
| 4 | Tool body | C8-G-0900 | C12-G-0900 |
| 5 | Bending spring | see below | see below |
| 6 | Fixing strip | C8-E-0800 | C12-E-0800 |
| 7 | Screw | GH-H-S-0050 | GH-H-S-0012 |
| Spring Index | |||
| Type | Bending spring | Part No. | Application |
| W2 | soft (softer than W1) | C8-E-0006 C12-E-0006 |
Special applications |
| W1 | soft (softer than W) | C8-E-0007 C12-E-0007 |
Special applications |
| W | soft | C8-E-0008 C12-E-0008 |
Aluminium alloys, copper zinc alloys, soft mat. |
| H | hard | C8-E-0009* C12-E-0009* |
Standard applications, all steel types |
| S | super hard | C8-E-0010 C12-E-0010 |
Hard and tough materials |
| Z | extra hard (harder > S) | C8-E-0011 C12-E-0011 |
Very tough materials or very large burr formations |
| Z1 | extra hard (harder > Z) | C8-E-0012 C12-E-0012 |
Special applications |
| Z2 | extra hard (harder > Z1) | C8-E-0013 C12-E-0013 |
Special applications |
| Z3 | extra hard (harder > Z2) | C8-E-0014 C12-E-0014 |
Special applications |
| Blades | ||||
| Part No. forward and backward cutting Coating T |
Coating D |
|||
| Angle | M | L | M | L |
| 10° | C8-M-0007-T | C8-M-0002-T | C8-M-0007-D | C8-M-0002-D |
| C12-M-0007-T | C12-M-0002-T | C12-M-0007-D | C12-M-0002-D | |
| 20° | C8-M-0006-T* | C8-M-0001-T | C8-M-0006-D | C8-M-0001-D |
| C12-M-0006-T* | C12-M-0001-T | C12-M-0006-D | C12-M-0001-D | |
| 25° | C8-M-0008-T | C8-M-0003-T | C8-M-0008-D | C8-M-0003-D |
| C12-M-0008-T | C12-M-0003-T | C12-M-0008-D | C12-M-0003-D | |
| 30° | C8-M-0009-T | C8-M-0004-T | C8-M-0009-D | C8-M-0004-D |
| C12-M-0009-T | C12-M-0004-T | C12-M-0009-D | C12-M-0004-D | |
| Part No. backward cutting only Coating T |
Coating D |
|||
| Angle | M | L | M | L |
| 10° | C8-M-0027-T | C8-M-0022-T | C8-M-0027-D | C8-M-0022-D |
| C12-M-0027-T | C12-M-0022-T | C12-M-0027-D | C12-M-0022-D | |
| 20° | C8-M-0026-T | C8-M-0021-T | C8-M-0026-D | C8-M-0021-D |
| C12-M-0026-T | C12-M-0021-T | C12-M-0026-D | C12-M-0021-D | |
| 25° | C8-M-0028-T | C8-M-0023-T | C8-M-0028-D | C8-M-0023-D |
| C12-M-0028-T | C12-M-0023-T | C12-M-0028-D | C12-M-0023-D | |
| 30° | C8-M-0029-T | C8-M-0024-T | C8-M-0029-D | C8-M-0024-D |
| C12-M-0029-T | C12-M-0024-T | C12-M-0029-D | C12-M-0024-D | |
| *Standard items / Please enquire about stock or delivery times for all non-standard blades. Explanations to coatings T: Coating for steel, titanium, Inconel D: Coating for aluminium alloys only |
||||

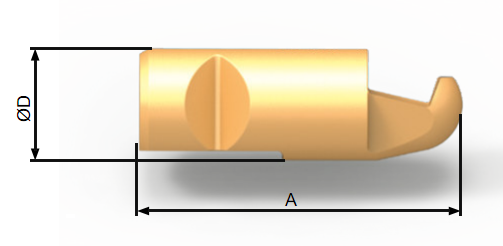

| Dimension Table | ||||
| COFA C8 | COFA C12 | |||
| Size | M | L | M | L |
| ØD | Ø2.5 h6 | Ø2.5 h6 | Ø3.5 h6 | Ø3.5 h6 |
| A | 7.54 | 7.85 | 11.37 | 11.98 |
We reserve the right to make technical changes.
