| DEFA 4-6 | DEFA 6-10 | DEFA 9-24 |
  |

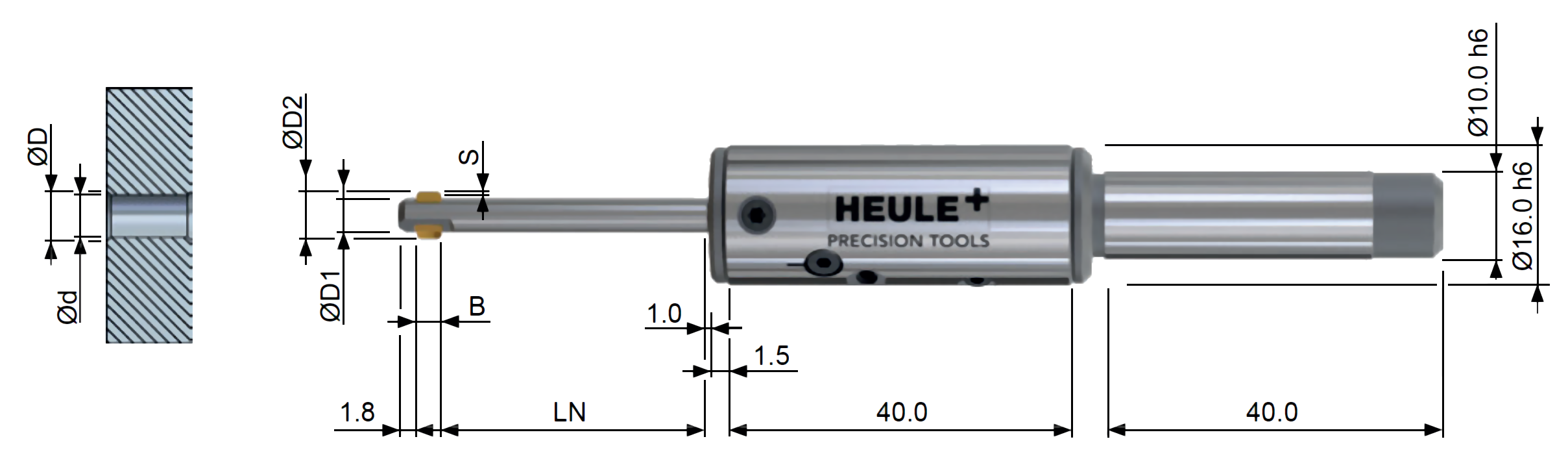

| Tool Table | ||||||||||
| Tool without blade | ||||||||||
| Tool designation |
Bore range Ød 1) |
Chamfer range ØD |
Blade housing ØD1 |
Max. ØD2 |
B |
S |
LN |
Part No. without Shank |
Part No. with Shank Ø10 |
Part No. with End plug |
| 4.0 - 4.8/30 | 4.0 - 4.6 | 4.4 - 4.8 | 3.8 | 5.4 | 3.2 | 0.3 | 30.0 | GH-S-D-5200 | -5220 | -5240 |
| 4.0 - 4.8/60 | 60.0 | GH-S-D-5201 | -5221 | -5241 | ||||||
| 4.2 - 5.2/30 | 4.2 - 5.0 | 4.6 - 5.2 | 4.1 | 5.8 | 3.2 | 0.3 | 30.0 | GH-S-D-5202 | -5222 | -5242 |
| 4.2 - 5.2/60 | 60.0 | GH-S-D-5203 | -5223 | -5243 | ||||||
| 4.6 - 5.8/30 | 4.6 - 5.6 | 5.0 - 5.8 | 4.5 | 6.4 | 3.2 | 0.3 | 30.0 | GH-S-D-5204 | -5224 | -5244 |
| 4.6 - 5.8/60 | 60.0 | GH-S-D-5205 | -5225 | -5245 | ||||||
| 5.0 - 6.4/30 | 5.0 - 6.2 | 5.4 - 6.4 | 4.8 | 7.0 | 3.2 | 0.3 | 30.0 | GH-S-D-5206 | -5226 | -5246 |
| 5.0 - 6.4/60 | 60.0 | GH-S-D-5207 | -5227 | -5247 | ||||||
| 5.5 - 6.8/30 | 5.5 - 6.6 | 5.9 - 6.8 | 5.3 | 7.4 | 3.2 | 0.3 | 30.0 | GH-S-D-5208 | -5228 | -5248 |
| 5.5 - 6.8/60 | 60.0 | GH-S-D-5209 | -5229 | -5249 | ||||||
| 1) Shall not be less In case the tool body serves for clamping, an end plug is required. |
||||||||||
| Spare Parts | ||
| Pos. | Description | Part No. |
| 1 | Blade | see below |
| 2 | Blade housing | see below |
| 3 | Blade control | see below |
| 4 | Torsion spring 4-6 | GH-S-T-0001 |
| 5 | Positioning screw 4-6 | GH-S-X-0001 |
| 6 | Gear wheel 4-6 | GH-S-C-0001 |
| 7 | Tool body 4-6 | GH-S-G-0217 |
| 8 | Clamping screw M4x0.5x5.0 | GH-H-S-0201 |
| 9 | Eccentric cam 4-6 | GH-S-E-0001 |
| 10 | Set screw 4-6 | GH-H-S-1126 |
| 11 | Tension screw 4-6 | GH-H-S-0101 |
| 12 | Shank cylindric Ø10.0 h6 | GH-S-S-0001 |
| Blades DF Geometry 90° | |||||
| Part No. forward and backward cutting |
Part No. backward cutting only |
||||
| DEFA | Coating T1 | Coating T1 | |||
| 4.0 - 4.8 | GH-S-M-3902* | GH-S-M-4902 | |||
| 4.2 - 5.2 | GH-S-M-3903* | GH-S-M-4903 | |||
| 4.6 - 5.8 | GH-S-M-3904* | GH-S-M-4904 | |||
| 5.0 - 6.4 | GH-S-M-3905* | GH-S-M-4905 | |||
| 5.5 - 6.8 | GH-S-M-3906* | GH-S-M-4906 | |||
| *) Standard items / Please enquire about stock or delivery times for all non-standard blades. 1) Standard coating. Blades with a different chamfer angle or coatings for materials with increased requirements (i.e. titanium, Inconel) are available on request. |
|||||
| Spare parts | |||||||
| Blade Housing and Blade Control | |||||||
| Blade Housing with ØD1 | Blade Control | ||||||
| Tool Ref. | ØD1 | LN | LM | Part No. | ØDW | LW | Part No. |
| 4.0 - 4.8/30 | 3.8 | 30.0 | 45.5 | GH-S-N-0102 | 2.0 | 53.6 | GH-S-W-0003 |
| 4.0 - 4.8/60 | 3.8 | 60.0 | 75.5 | GH-S-N-0132 | 2.0 | 83.7 | GH-S-W-0027 |
| 4.2 - 5.2/30 | 4.1 | 30.0 | 45.5 | GH-S-N-0151 | 2.0 | 53.6 | GH-S-W-0003 |
| 4.2 - 5.2/60 | 4.1 | 60.0 | 75.5 | GH-S-N-0152 | 2.0 | 83.7 | GH-S-W-0027 |
| 4.6 - 5.8/30 | 4.5 | 30.0 | 45.5 | GH-S-N-0154 | 2.0 | 53.6 | GH-S-W-0003 |
| 4.6 - 5.8/60 | 4.5 | 60.0 | 75.5 | GH-S-N-0155 | 2.0 | 83.7 | GH-S-W-0027 |
| 5.0 - 6.4/30 | 4.8 | 30.0 | 45.5 | GH-S-N-0107 | 2.0 | 53.6 | GH-S-W-0003 |
| 5.0 - 6.4/60 | 4.8 | 60.0 | 75.5 | GH-S-N-0134 | 2.0 | 83.7 | GH-S-W-0027 |
| 5.5 - 6.8/30 | 5.3 | 30.0 | 45.5 | GH-S-N-0109 | 2.0 | 53.6 | GH-S-W-0003 |
| 5.5 - 6.8/60 | 5.3 | 60.0 | 75.5 | GH-S-N-0135 | 2.0 | 83.7 | GH-S-W-0027 |
| Dimension Table | ||||||||
| Blade Dimensions | ||||||||
| 90°, forward and backward cutting | ||||||||
| Designation | S | A | Ø Chamfer min.-max. |
C | G | B | H |  |
| 4.0 - 4.8 | 0.3 | 3.80 | 4.4 - 4.8 | 0.8 | 2.8 | 3.2 | 1.0 | |
| 4.2 - 5.2 | 0.3 | 3.95 | 4.6 - 5.2 | 1.0 | 2.8 | 3.2 | 1.0 | |
| 4.6 - 5.8 | 0.3 | 4.35 | 5.0 - 6.8 | 1.1 | 2.8 | 3.2 | 1.0 | |
| 5.0 - 6.4 | 0.3 | 4.80 | 5.4 - 6.4 | 1.2 | 2.8 | 3.2 | 1.0 | |
| 5.5 - 6.8 | 0.3 | 5.00 | 5.9 - 6.8 | 1.2 | 2.8 | 3.2 | 1.0 | |
| 90°, backward cutting only | ||||||||
| Designation | S | A | Ø Chamfer min.-max. |
C | G | B | H |  |
| 4.0 - 4.8 | 0.3 | 3.80 | 4.4 - 4.8 | 0.8 | 3.0 | 3.2 | 1.0 | |
| 4.2 - 5.2 | 0.3 | 3.95 | 4.6 - 5.2 | 1.0 | 3.0 | 3.2 | 1.0 | |
| 4.6 - 5.8 | 0.3 | 4.35 | 5.0 - 6.8 | 1.1 | 3.0 | 3.2 | 1.0 | |
| 5.0 - 6.4 | 0.3 | 4.80 | 5.4 - 6.4 | 1.2 | 3.0 | 3.2 | 1.0 | |
| 5.5 - 6.8 | 0.3 | 5.00 | 5.9 - 6.8 | 1.2 | 3.0 | 3.2 | 1.0 | |
| Shank Type | Part No. |  |
| Cylindrical Ø10 | GH-S-S-0001 | |
| Shank Type | Part No. |  |
| End plug Ø8 | GH-S-S-0090 | |
We reserve the right to make technical changes.
