Ferg Threading Taps M AC175, AC175A, T675, T675A, A675, A675A, AC675, AC675A

Threading Taps
ISO Metric coarse thread DIN 13

Any material with at least 12% elongation (cold forming)									173 High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) 175-675 Special High speed steel class E with vanadium		DIN 371 AC175A 2000217517	DIN 376 AC175 2500217517	DIN 371 T675A 2000067510	DIN 376 T175 2500067510	DIN 371 T175A 2000267510	DIN 376 T175 2500267510	DIN 371 A175A 2000067512	DIN 376 A175 2500067512	DIN 371 A175A 2000267512	DIN 376 A175 2500267512	DIN 371 AC175A 2000067517	DIN 376 AC175 2500067517
									HOLE		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
									LIMIT		6GX		6HX		6GX		6HX		6GX		6HX
									COATING		AlCrN coating (Aluminium Chrome Nitride)		TiN coating (Titanium nitride)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)		TiAlN coating (Titanium Aluminium Nitride)		AlCrN coating (Aluminium Chrome Nitride)
									DIN		371	376	371	376	371	376	371	376	371	376	371	376

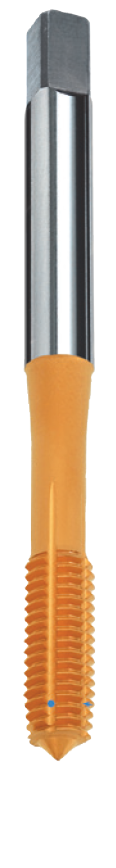

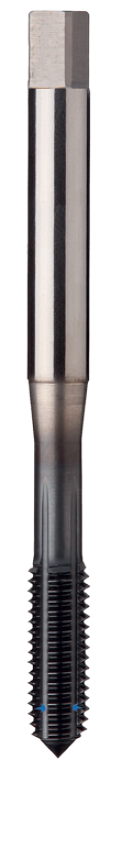

									ORDER No. EDP = Nr.+ ★		DIN 371 2000217517* AC175A		DIN 371 2000067510* T675A		DIN 371 2000267510* T675A		DIN 371 2000067512* A675A		DIN 371 2000267512* A675A		DIN 371 2000067517* AC675A

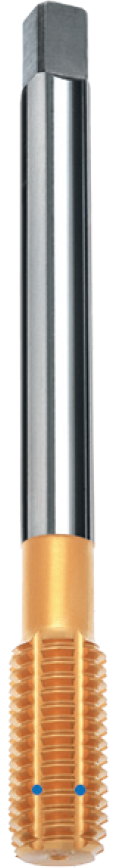

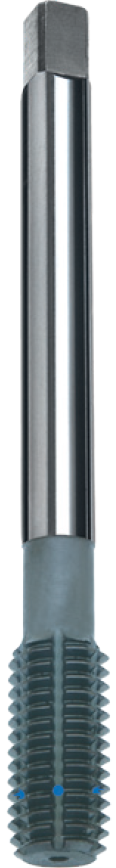

l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500217517* AC175		DIN 376 2500067510* T675		DIN 376 2500267510* T675		DIN 376 2500067512* A675		DIN 376 2500267512* A675		DIN 376 2500067517* AC675
			d₂ mm	a mm	d₂ mm	a mm
											Z		Z		Z		Z		Z		Z
45	9	-	2.8	2.1			1.82-1.78	M 2	(0.4)	020
45	9	-	2.8	2.1			2.02-1.98	M 2.2	(0.45)	022
45	9	-	2.8	2.1			2.12-2.08	M 2.3	(0.4)	023
50	9	-	2.8	2.1			2.32-2.28	M 2.5	(0.45)	025
50	9	-	2.8	2.1			2.42-2.38	M 2.6	(0.45)	026
56	11	16	3.5	2.7	2.2	-	2.83-2.77	M 3	(0.5)	030	3 ■
56	12	17	4	3	2.5	2.1	3.28-3.22	M 3.5	(0.6)	035	4
63	13	19	4.5	3.4	2.8	2.1	3.73-3.67	M 4	(0.7)	040	4 ■		4		4		4		4		4
70	14	22	6	4.9	3.5	2.7	4.18-4.12	M 4.5	(0.75)	045	4		4		4		4		4		4
70	15	29	6	4.9	3.5	2.7	4.68-4.62	M 5	(0.8)	050	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
80	17	30	6	4.9	4.5	3.4	5.60-5.50	M 6	(1)	060	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
80	17	31	7	5.5	5.5	4.3	6.60-6.50	M 7	(1)	070	5		5		5		5		5		5
90	20	35	8	6.2	6	4.9	7.45-7.35	M 8	(1.25)	080	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
100	22	38	10	8	7	5.5	9.35-9.25	M 10	(1.5)	100	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
110	24				9	7	11.25-11.15	M 12	(1.75)	120	6 ■		6 ■		6 ■		6 ■		6 ■		6 ■
110	26				11	9	13.15-13.05	M 14	(2)	140	6		6		6		6		6		6
110	27				12	9	15.15-15.05	M 16	(2)	160	6 ■		6		6		6		6		6
125	30				14	11	16.95-16.85	M 18	(2.5)	180	6		6		6		6		6		6
140	32				16	12	18.95-18.85	M 20	(2.5)	200	6		6		6		6		6		6
140	32				18	14.5	20.95-20.85	M 22	(2.5)	220	6		6		6		6		6		6
160	34				18	14.5	22.70-22.60	M 24	(3)	240	6		6		6		6		6		6
							■ = Stock				EDP: T175A M 6 = 2000017510060

We reserve the right to make technical changes.
