Ferg Threading Taps G 106, T106

Threading Taps

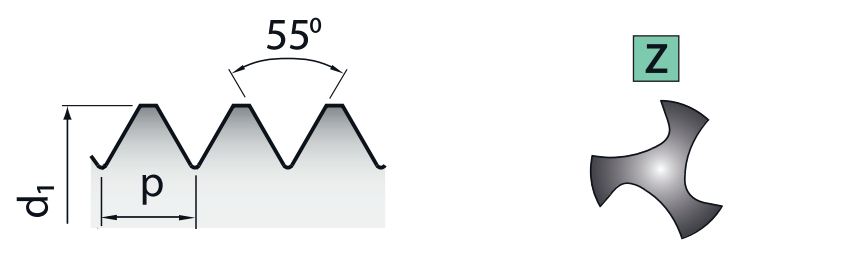

Whitworth pipe thread DIN EN ISO 228

Short-chipping brass, Bronze						High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		106 2540010600	T106 2540010610
						HOLE		≤ 2 x d₁ Blind and through hole	≤ 2 x d₁ Blind and through hole
						Chamfer lead acc. to DIN 2197		E = 1.5xP	E = 1.5xP
						LIMIT		m	m
						COATING		Bright (without Coating or without Surface treatment)	TiN coating (Titanium nitride)

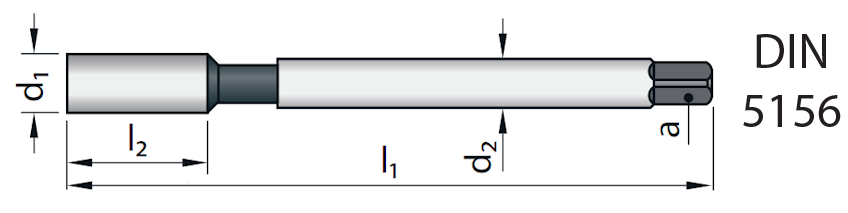

						DIN		5156	5156
						ORDER No. EDP = Nr.+ ★		2540010600* 106	2540010610* T106
l₁ mm	l₂ mm	d₂ mm	a mm	mm	d₁	P h/1"	★

								Z	Z
90	16	7	5.5	8.8	G 1/8	28	012	4 ■	4 ■
100	22	11	9	11.8	G 1/4	19	025	4 ■	4 ■
100	22	12	9	15.25	G 3/8	19	037	4 ■	4 ■
125	25	16	12	19	G 1/2	14	050	4 ■	4 ■
125	25	18	14.5	21	G 5/8	14	062	4 ■	4
140	28	20	16	24.5	G 3/4	14	075	4 ■	4
160	30	25	20	30.75	G 1	11	100	4 ■	4
170	30	28	22	35.3	G 1 1/8	11	112	4	4
170	30	32	24	39.25	G 1 1/4	11	125	6	6
180	32	36	29	41.9	G 1 3/8	11	137	6	6
190	32	36	29	45.25	G 1 1/2	11	150	6	6
		■ = Stock		EDP: T106 G 1/4 = 2540010610025

We reserve the right to make technical changes.
