   Pneumatical Actuated  External Gripping  Internal Gripping Centric Gripping  Gripping Force Safety Device External Gripping  Gripping Force Safety Device Internal Gripping |

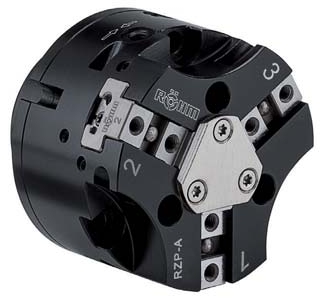

3-Jaw Centric Gripper RZP-A 64 to RZP-A 160  |
APPLICATION Universal gripping of round and cylindrical workpieces with three centrically arranged gripper fingers for handling with robots or portals. TYPE Available from sizes 64 to 160, each in two stroke variants. Optionally with gripping force safety device and/or dirt cover. Fastening of the gripper fingers via centering sleeves (included in the scope of delivery). |
 |

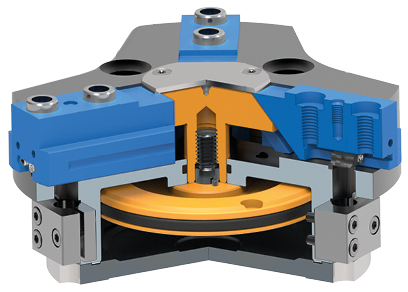

| TECHNICAL FEATURES - Centrically clamping in compact design made of high-strength, hard-coated aluminium alloy - All functional parts made of hardened steel for maximum service life - Wedge hook principle with pneumatic actuation - Optional inductive and magnetic position sensors - Optionally available with FKM seals for higher temperatures up to 150°C (on request) - Integrable purge air connection to prevent contamination CUSTOMER BENEFITS » High gripping force with low dead weight and compact design » Maximum flexibility thanks to versatile connection and fastening options » Long service life and high reliability thanks to specially ground base jaws in proven T-slot guide |
We reserve the right to make technical changes.
