Ferg Threading Taps M A632,AC632,A632A,AC632A

Threading Taps
ISO Metric coarse thread DIN 13

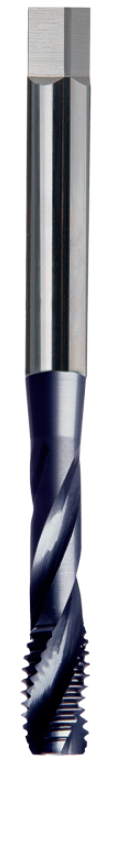

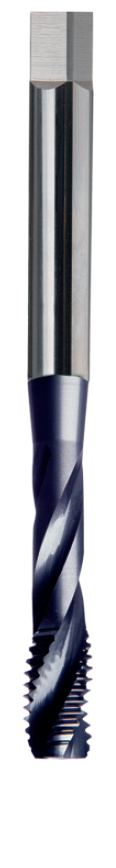

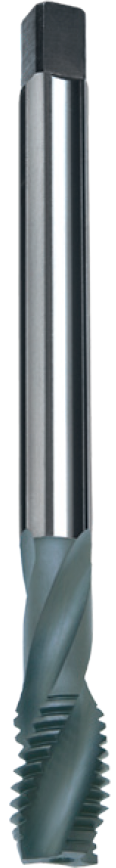

Titanium and CrNi alloys										Special High speed steel class E with vanadium		DIN 371 A632A 2000063212	DIN 376 A632 2500063212	DIN 371 AC632A 2000063217	DIN 376 AC632 2500063217
										HOLE		≤ 2 x d₁ Blind hole		≤ 2 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		C = 2.5xP		C = 2.5xP
										LIMIT		6HX		6HX
										COATING		TiAlN coating (Titanium Aluminium Nitride)		AlCrN coating (Aluminium Chrome Nitride)
										DIN		371	376	371	376
										ORDER No. EDP = Nr.+ ★		DIN 371 2000063212* A632A		DIN 371 2000063217* AC632A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500063212* A632		DIN 376 2500063217* AC632
l₁ mm	l₂ mm	mm	l₃ mm	d₂ mm	a mm	d₂ mm	a mm	mm	d₁ mm	P mm	★	DIN 376 2500063212* A632		DIN 376 2500063217* AC632
												Z		Z
45	9	9	-	2.8	2.1			1.6	M 2	(0.4)	020	3		3
45	9	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022	3		3
45	9	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023	3		3
50	9	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	3		3
50	9	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026	3		3
56	11	5	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3 ■		3 ■
56	12	6	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3		3
63	13	7	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3 ■		3 ■
70	15	8	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■		3 ■
80	17	10	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■		3 ■
80	17	10	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3		3
90	20	12	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■		3 ■
100	22	15	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■		3 ■
110	24	16				9	7	10.2	M 12	(1.75)	120	3 ■		3 ■
110	26	20				11	9	12	M 14	(2)	140	3		3
110	27	20				12	9	14	M 16	(2)	160	3		3
125	30	25				14	11	15.5	M 18	(2.5)	180	4		4
140	32	25				16	12	17.5	M 20	(2.5)	200	4		4
140	32	25				18	14.5	19.5	M 22	(2.5)	220	4		4
160	34	30				18	14.5	21	M 24	(3)	240	4		4
						■ = Stock			EDP: AC630A M 4 = 2000063017040

We reserve the right to make technical changes.
