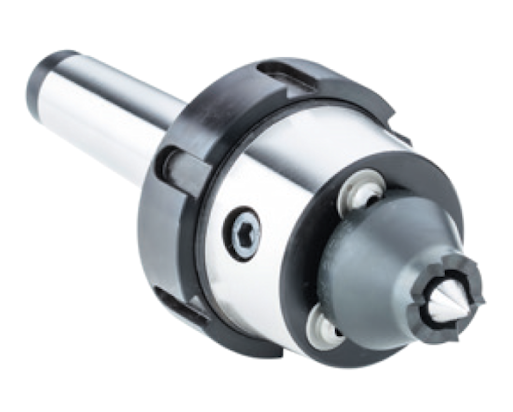

Constant Face Drivers CoAE - turning and milling  |
| APPLICATION For the rational turning and milling of workpieces on its entire length without reclamping with maximum precision. Can be used in clockwise and counterclockwise rotation. TYPE Basic body with morse taper and hydraulic pressure compensation. Clamping circuit Ø 8-80 mm. Workpiece weight max. 100 kg. TECHNICAL FEATURES - Guide value for axially permissible total load on 3 support pistons: 20,000 N |
 |
| CUSTOMER BENEFITS » For turning and milling in one set-up » Compensating driving disc, radially backlash-free » Maximum concentricity deviation of 0.015 mm for maximum precision » Stable and constant workpiece length stop on the front side thanks to resilient centre point » Maximum flexibility thanks to universal exchange of driving disc and centre point |
|

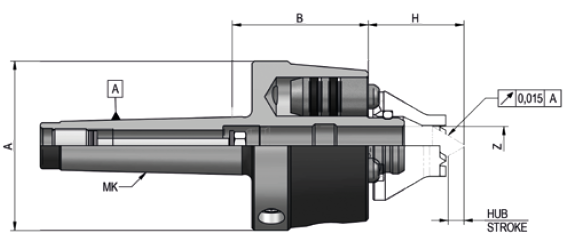

| A14 Basic body with morse taper (basic body without driving disc and center), hydraulic
|
| APPLICATION For the rational turning and milling of workpieces on its entire length without reclamping with maximum precision. Can be used in clockwise and counterclockwise rotation. TYPE Basic body with morse taper, draw-off nut and hydraulic pressure compensation. Clamping circuit Ø 8-80 mm. Workpiece weight max. 100 kg. TECHNICAL FEATURES - Guide value for axially permissible total load on 3 support pistons: 20,000 N |
 |
| CUSTOMER BENEFITS » For turning and milling in one set-up » Compensating driving disc, radially backlash-free » Maximum concentricity deviation of 0.015 mm for maximum precision » Stable and constant workpiece length stop on the front side thanks to resilient centre point » Maximum flexibility thanks to universal exchange of driving disc and centre point |
|

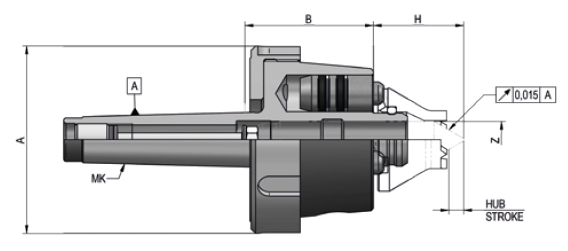

| A14 Basic body with morse taper, with draw-off nut (basic body without driving disc and centre), hydraulic
|
| APPLICATION For the rational turning and milling of workpieces on its entire length without reclamping with maximum precision. Can be used in clockwise and counterclockwise rotation. TYPE Basic body with cylindrical shank and hydraulic pressure compensation. Clamping circuit Ø 8-80 mm. Workpiece weight max. 100 kg. TECHNICAL FEATURES - Guide value for axially permissible total load on 3 support pistons: 20,000 N |
 |
| CUSTOMER BENEFITS » For turning and milling in one set-up » Compensating driving disc, radially backlash-free » Maximum concentricity deviation of 0.015 mm for maximum precision » Stable and constant workpiece length stop on the front side thanks to resilient centre point » Maximum flexibility thanks to universal exchange of driving disc and centre point |
|

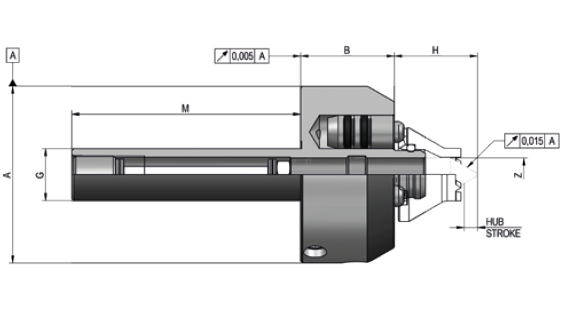

| A14 Basic body with cylindrical shank for clamping in lathe chucks, with spring package (basic body without driving disc and centre), hydraulic
|
| APPLICATION For the rational turning and milling of workpieces on its entire length without reclamping with maximum precision. Can be used in clockwise and counterclockwise rotation. TYPE Basic body with short taper and mechnical pressure compensation. Clamping circuit Ø 8-80 mm. Workpiece weight max. 100 kg. TECHNICAL FEATURES - Guide value for axially permissible total load on 3 support pistons: 20,000 N |
 |
| CUSTOMER BENEFITS » For turning and milling in one set-up » Compensating driving disc, radially backlash-free » Maximum concentricity deviation of 0.015 mm for maximum precision » Stable and constant workpiece length stop on the front side thanks to resilient centre point » Maximum flexibility thanks to universal exchange of driving disc and centre point |
|

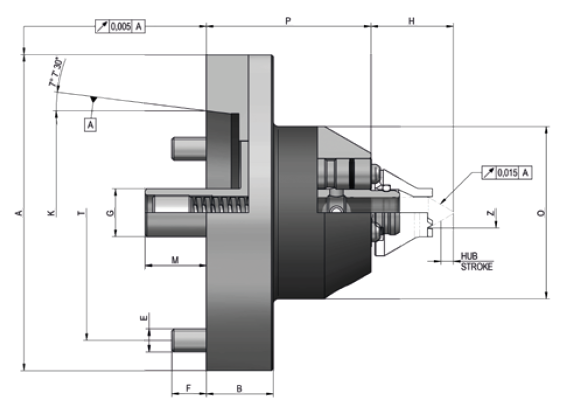

| A14 Basic body with short taper ISO 702-1 (DIN 55026), with spring package (basic body without driving disc and center), mechanical
|
| APPLICATION For the rational turning and milling of workpieces on its entire length without reclamping with maximum precision. Can be used in clockwise and counterclockwise rotation. TYPE Basic body with centring mount and hydraulic pressure compensation. Clamping circuit Ø 8-80 mm. Workpiece weight max. 100 kg. TECHNICAL FEATURES - Guide value for axially permissible total load on 3 support pistons: 20,000 N |
 |
| CUSTOMER BENEFITS » For turning and milling in one set-up » Compensating driving disc, radially backlash-free » Maximum concentricity deviation of 0.015 mm for maximum precision » Stable and constant workpiece length stop on the front side thanks to resilient centre point » Maximum flexibility thanks to universal exchange of driving disc and centre point |
|

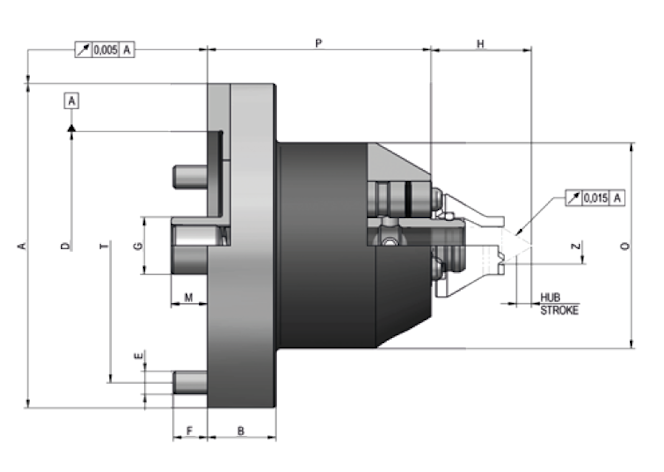

| A14 Basic body flange type, with spring set (basic body without driving disc and center), hydraulic
|
We reserve the right to make technical changes.
