  Indexable Inserts precision ground
 for boring bars starting from 5 mm working diameter

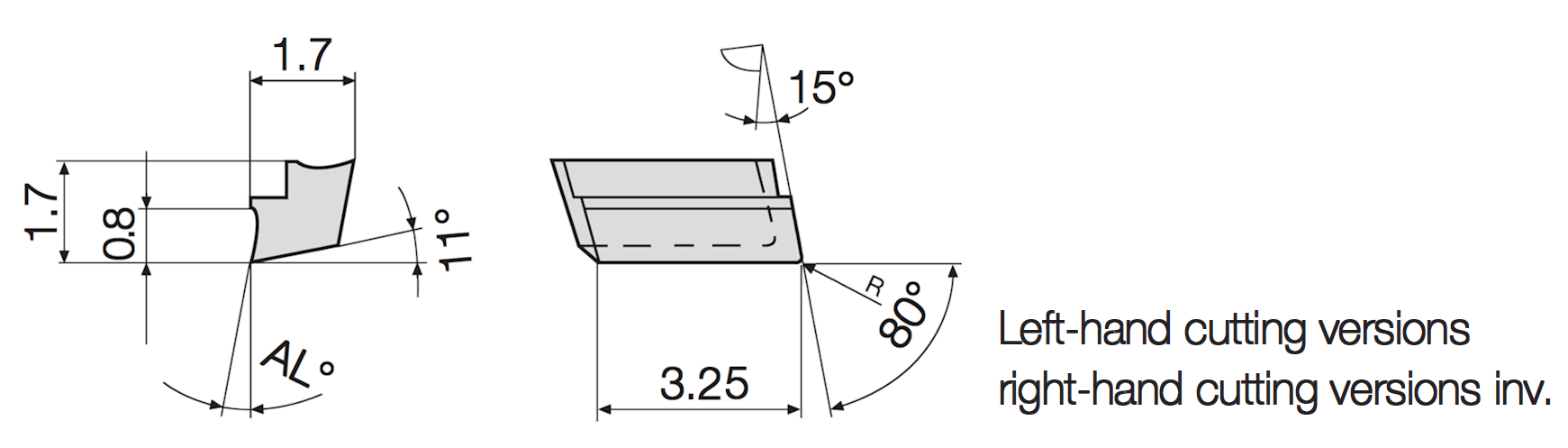

Insert W 1733-…. …. L/R*
Carbide / carbide coated / PCD 10


   Part nr.
20128		 Part nr.
20129		 Part nr.
20130		 Part nr.
20131		 Part nr.
20132		 Part nr.
20133
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 H02 H06 H26
17,330 W1733-0008 1000L 0.05 10
17,331 W1733-0208 1000L 0.2 10
17,332 W1733-0008 1620L 0.05 16
17,333 W1733-0208 1620L 0.2 16
H H
  Part nr.
20226		 Part nr.
20227		 Part nr.
20228		 Part nr.
20229		 Part nr.
20230		 Part nr.
20231
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 H02 H06 H26
17,330 W1733-0008 1000R 0.05 10
17,331 W1733-0208 1000R 0.2 10
17,332 W1733-0008 1620R 0.05 16
17,333 W1733-0208 1620R 0.2 16
H
  Part nr.
20140		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
17,330 W1733-0000 0000L 0.05 0 H
17,331 W1733-0200 0000L 0.2 0 H
17,332 W1733-0400 0000L 0.4 0 H
H
       with wiper geometry Part nr.
20232		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
17,330 W1733-0000 0000R 0.05 0 H
17,331 W1733-0200 0000R 0.2 0 H
17,332 W1733-0400 0000R 0.4 0 H
*Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts!
   ex stock           on request
Ordering example: 1 piece W 1733-0008 1000 L H02 = Ordering number: 20131 17,330



We reserve the right to make technical changes.
