HH Drill Inserts

Carbide inserts
uncoated / coated

PCD inserts

							Part Nr.
							20362	20363	20364	20365

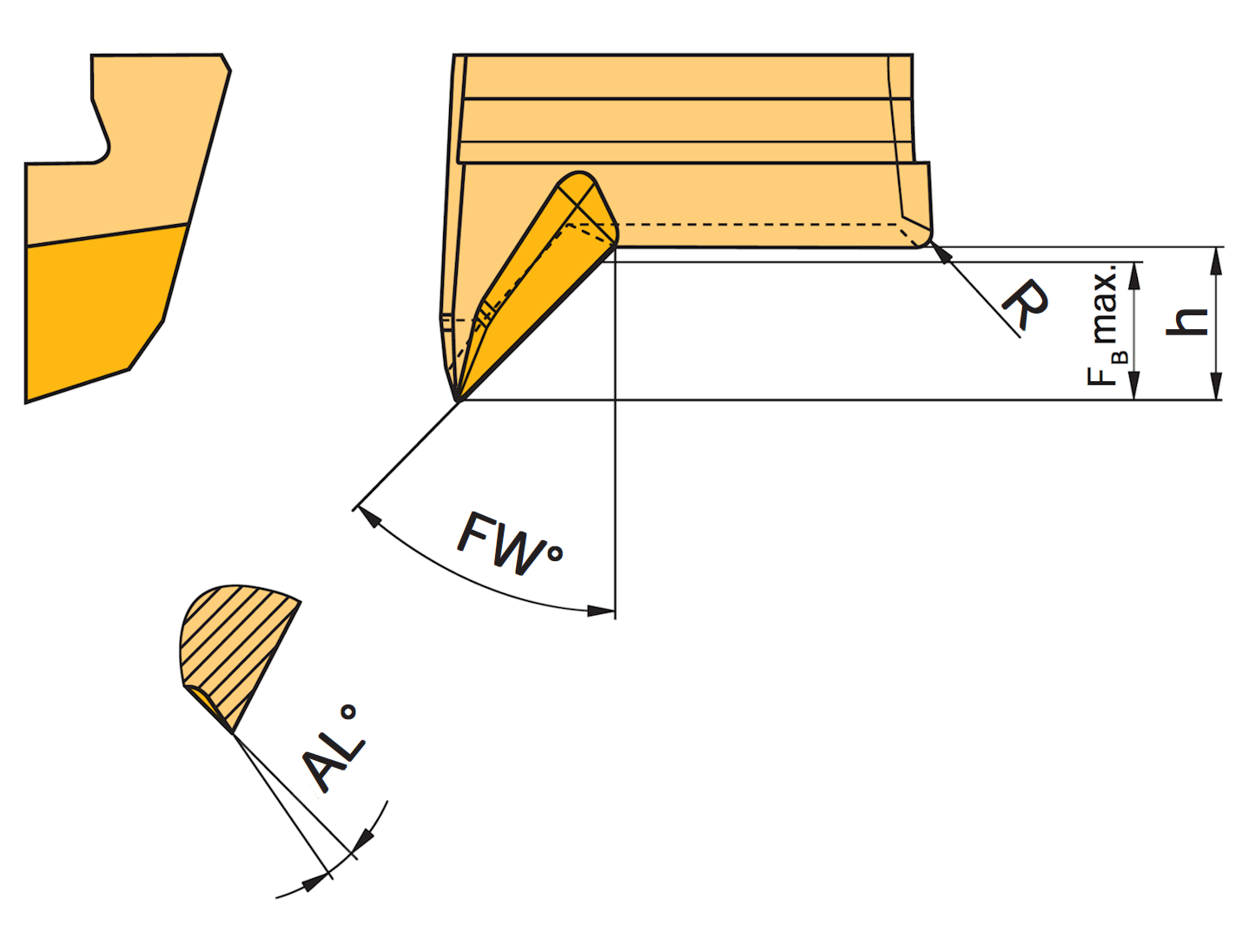

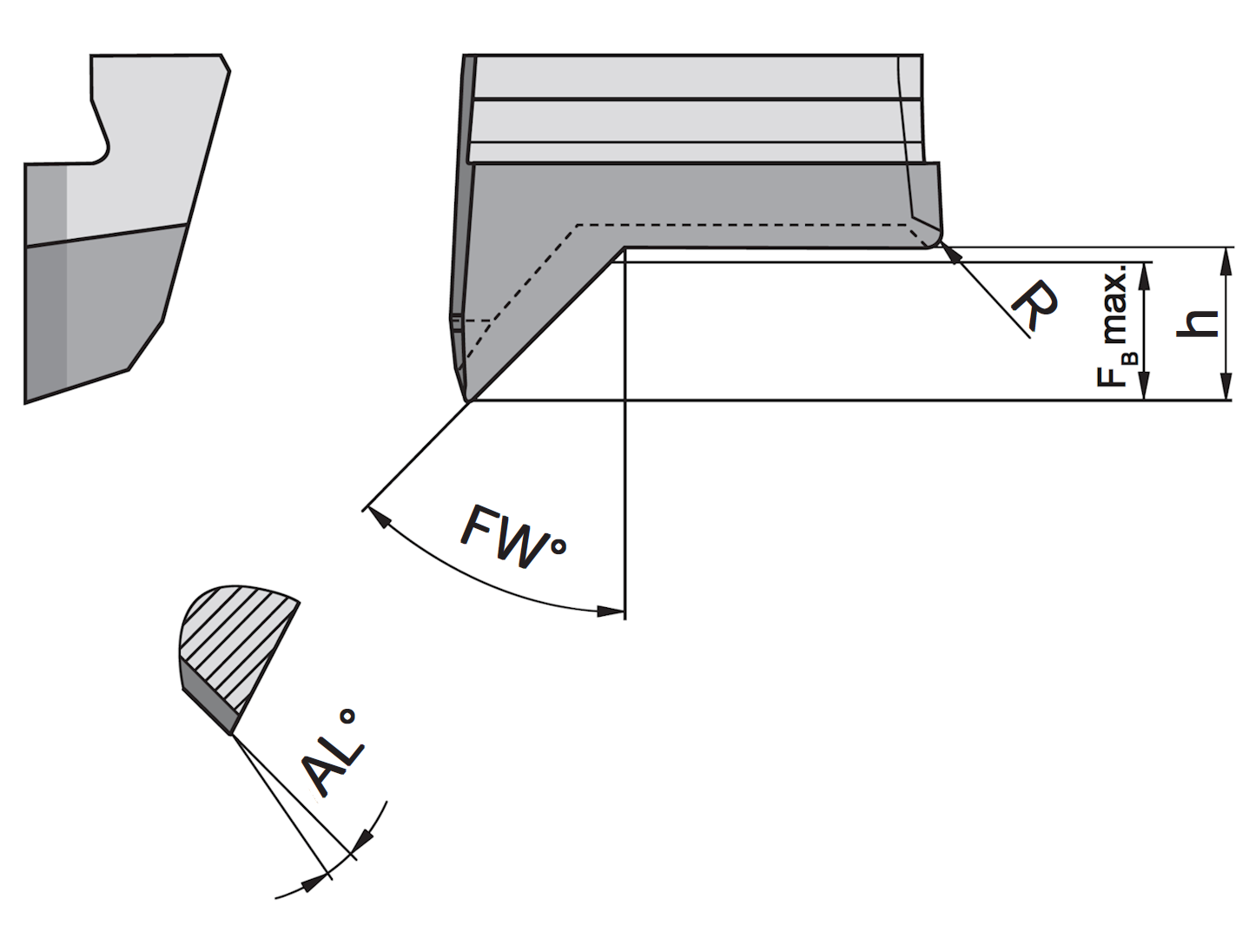

		F_B max	FW°	AL°	R	h	Cutting grade
Code	Drawing nr.	max. Chamfer width	Chamfer angle	Rake angle	Radius	Height	K10	G12	G16	PKD10

20,060	W2006-1830 1000L	1.8	30°	10°	0.2	2
20,060	W2006-1830 1000L	1.8	30°	0°	0.2	2

20,061	W2006-1845 1000L	1.8	45°	10°	0.2	2
20,061	W2006-1845 0000L	1.8	45°	0°	0.2	2

20,062	W2006-1860 1000L	1.8	60°	10°	0.2	2
20,062	W2006-1860 0000L	1.8	60°	0°	0.2	2

30,063	W3006-2530 1000L	2.5	30°	10°	0.2	2.7
30,063	W3006-2530 0000L	2.5	30°	0°	0.2	2.7

30,064	W3006-2545 1000L	2.5	45°	10°	0.2	2.7
30,064	W3006-2545 0000L	2.5	45°	0°	0.2	2.7

30,065	W3006-2560 1000L	2.5	60°	10°	0.2	2.7
30,065	W3006-2560 0000L	2.5	60°	0°	0.2	2.7
ex stock Ordering example: e.g. 30° PCD 10 Chamfering insert for adaptor H 2006-… reading from the table: Drawing number = W 2006-1830 0000 L PCD 10, Ordering number = Part nr. + Code 20365 20,060
