Ferg Threading Taps M 104,105,104A,105A

Threading Taps
ISO Metric coarse thread DIN 13

Steels with good machinability Rm < 750 N/mm² (101,500 PSI) Nodular graphite, Malleable cast iron										High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 105A 2000010500	DIN 376 105 2500010500	DIN 371 104A 2000010400	DIN 376 104 2500010400	DIN 371 104A 2000210400	DIN 376 104 2500210400	DIN 371 104A 2000610400	DIN 376 104 2500610400	DIN 371 T104A 2000010410	DIN 376 T104 2500010410	DIN 371 T104A 2000210410	DIN 376 T104 2500210410
										HOLE		≤ 1.5 x d₁ Blind and through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole
										Chamfer lead acc. to DIN 2197		C = 2.5xP		B = 4xP		B = 4xP		B = 4xP		B = 4xP		B = 4xP
										LIMIT		ISO 2 (6H)		ISO 2 (6H)		ISO 3 (6G)		+0.1		ISO 2 (6H)		ISO 3 (6G)

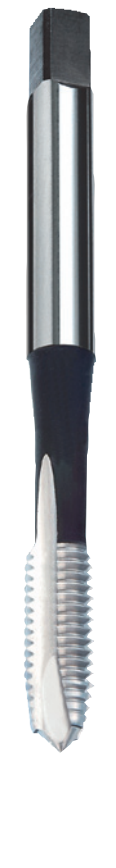

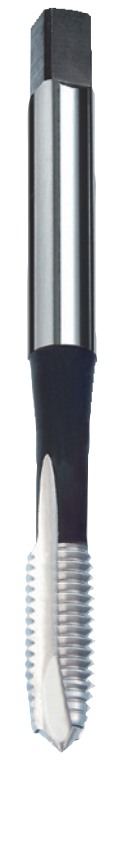

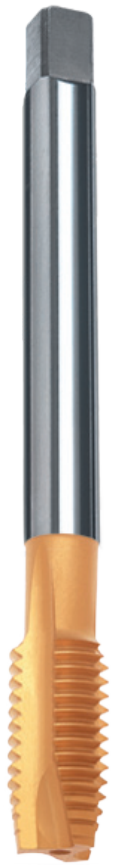

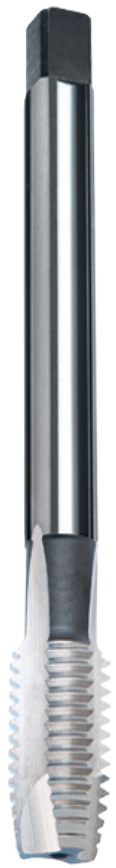

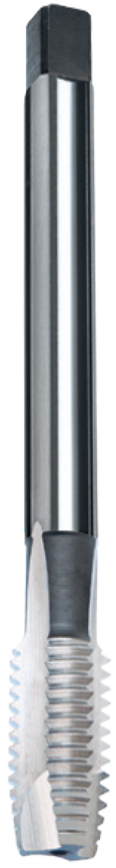

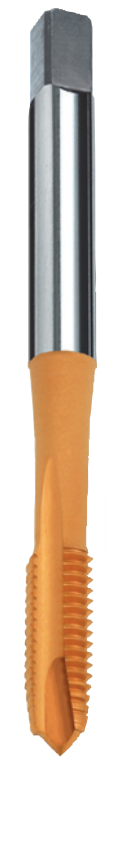

										COATING		Bright (without Coating or without Surface treatment)		Bright (without Coating or without Surface treatment)		Bright (without Coating or without Surface treatment)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiN coating (Titanium nitride)
										DIN		371	376	371	376	371	376	371	376	371	376	371	376
										ORDER No. EDP = Nr.+ ★		DIN 371 2000010500* 105A		DIN 371 2000010400* 104A		DIN 371 2000210400* 104A		DIN 371 2000610400* 104A		DIN 371 2000010410* T104A		DIN 371 2000210410* T104A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500010500* 105		DIN 376 2500010400* 104		DIN 376 2500210400* 104		DIN 376 2500610400* 104		DIN 376 2500010410* T104		DIN 376 2500210410* T104
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z		Z
40	6	6	-	2.5	2.1			0.75	M 1*	(0.25)	010	3 ■		3 ■		3		3		3		3
40	6	6	-	2.5	2.1			0.85	M 1.1*	(0.25)	011	3 ■		3 ■		3		3		3		3
40	6	6	-	2.5	2.1			0.95	M 1.2*	(0.25)	012	3 ■		3 ■		3		3		3		3
40	7	7	-	2.5	2.1			1.1	M 1.4*	(0.3)	014	3 ■		3 ■		3		3		3		3
40	8	8	-	2.5	2.1			1.25	M 1.6	(0.35)	016	3 ■		3 ■		3		3		3		3
40	8	8	-	2.5	2.1			1.3	M 1.7	(0.35)	017	3 ■		3 ■		3		3		3		3
40	8	8	-	2.5	2.1			1.45	M 1.8	(0.35)	018	3 ■		3 ■		3		3		3		3
45	9	9	-	2.8	2.1			1.6	M 2	(0.4)	020	3 ■		3 ■		3		3		3		3
45	9	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022	3 ■		3 ■		3		3		3		3
45	9	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023	3 ■		3 ■		3		3		3		3
50	9	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	3 ■		3 ■		3		3		3		3
50	9	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026	3 ■		3 ■		3		3		3		3
56	11	5	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■		3 ■
56	12	6	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3 ■		3 ■		3 ■		3		3 ■		3 ■
63	13	7	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■		3 ■
70	14	7	22	6	4.9	3.5	2.7	3.75	M 4.5	(0.75)	045	3 ■		3 ■		3		3		3		3
70	15	8	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■		3 ■
80	17	10	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■		3 ■
80	17	10	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3 ■ ■		3 ■ ■		3		3		3		3
90	20	12	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■ ■		3 ■
90	20	12	35	9	7	7	5.5	7.8	M 9	(1.25)	090	3 ■		3 ■		3		3		3		3
100	22	15	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■ ■		3 ■ ■		3 ■		3 ■		3 ■ ■		3 ■
110	24	16				9	7	10.2	M 12	(1.75)	120	3 ■		3 ■		3 ■		3		3 ■		3 ■
110	26	20				11	9	12	M 14	(2)	140	3 ■		3 ■		3 ■		3		3 ■		3 ■
110	27	20				12	9	14	M 16	(2)	160	3 ■		3 ■		3 ■		3		3 ■		3 ■
125	30	25				14	11	15.5	M 18	(2.5)	180	4 ■		4 ■		4 ■		4		4 ■		4 ■
140	32	25				16	12	17.5	M 20	(2.5)	200	4 ■		4 ■		4 ■		4		4 ■		4 ■
140	32	25				18	14.5	19.5	M 22	(2.5)	220	4 ■		4 ■		4 ■		4		4 ■		4 ■
160	34	30				18	14.5	21	M 24	(3)	240	4 ■		4 ■		4 ■		4		4 ■		4 ■
160	36	30				20	16	24	M 27	(3)	270	4 ■		4 ■		4		4		4		4
180	40	35				22	18	26.5	M 30	(3.5)	300	4 ■		4 ■		4		4		4		4
180	40	40				25	20	29.5	M 33	(3.5)	330	4 ■		4 ■		4		4		4		4
200	50	45				28	22	32	M 36	(4)	360	4 ■		4 ■		4		4		4		4
200	50	45				32	24	35	M 39	(4)	390	4 ■		4 ■		4		4		4		4
200	56	50				32	24	37.5	M 42	(4.5)	420	4 ■		4 ■		4		4		4		4
220	58	50				36	29	40.5	M 45	(4.5)	450	4 ■		4 ■		4		4		4		4
250	65	55				36	29	43	M 48	(5)	480	4 ■		4 ■		4		4		4		4
250	65	55				40	32	47	M 52	(5)	520	4 ■		4 ■		4		4		4		4
* = ISO 1 (4H)												■ = Stock				EDP: 105A M 8 = 2000010500080

We reserve the right to make technical changes.
