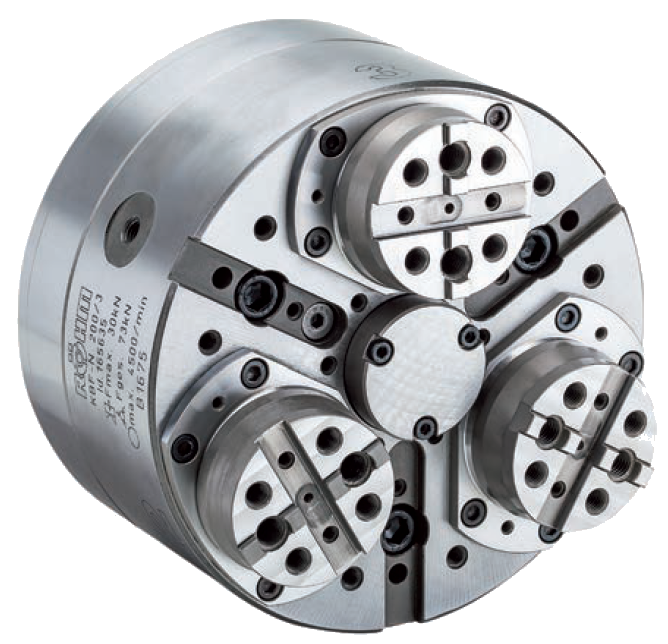

Power-operated Ball Lock Draw-down Chuck KBF-N - maximum plane-parallelism  |

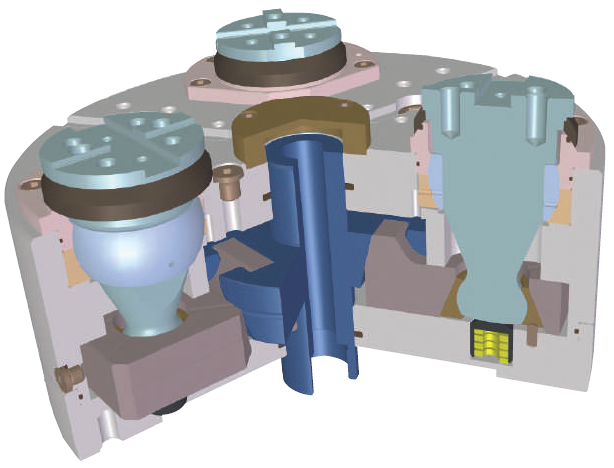

APPLICATION For clamping tasks for internal and external clamping where the axial run-out errors of the workpiece have to be minimized. TYPE Power chuck with draw-down and ball lock principle available with cylindrical centre mount or short taper mount. TECHNICAL FEATURES - Ball lock principle with wedge hook system - With fixed jaws (pendulum jaws on request) CUSTOMER BENEFITS » Maximum plane-parallelism thanks to active draw-down by the jaws |
 |
| » Maximum productivity thanks to long maintenance intervals - hermetically sealed against dirt and cooling water » Consistent workpiece quality thanks to constant clamping force due to oil filling » Suitable for high speeds (speed-dependent centrifugal influences are minimized by similar mass distribution to the right and left of the ball lock) Note: Alternatively with swinging ball lock for clamping rough, easily deformable workpieces at six clamping points on request Included in the scope of delivery: Chuck, chuck mounting screws (without top jaws) |
We reserve the right to make technical changes.
