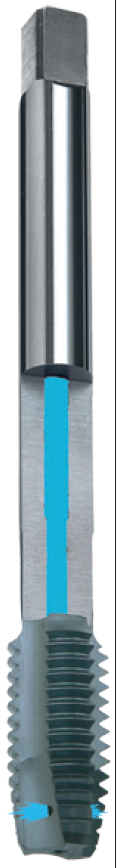

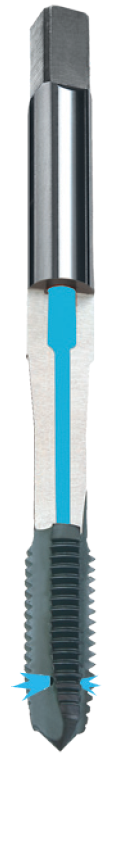

Ferg Threading Taps M 182,182A,A684,A684A

Threading Taps
ISO Metric coarse thread DIN 13

Heat treated and heat-resistant steels up to 1.000 N/mm² or 30 HRC										High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 A684A 2000068412	DIN 376 A684 2500068412	DIN 371 182A 2000018200	DIN 376 182 2500018200	DIN 371 182A 2000318200	DIN 376 182 2500318200	DIN 371 T182A 2000018210	DIN 376 T182 2500018210	DIN 371 A182A 2000018212	DIN 376 A182 2500018212
										HOLE		≤ 3 x d₁ Through hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		B = 4xP		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
										LIMIT		ISO 2 (6H)		ISO 2 (6H)		7G		ISO 2 (6H)		ISO 2 (6H)
										COATING		TiAlN coating (Titanium Aluminium Nitride)		Bright (without Coating or without Surface treatment)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)
										DIN		371	376	371	376	371	376	371	376	371	376
										ORDER No. EDP = Nr.+ ★		DIN 371 2000068412* A684A		DIN 371 2000018200* 182A		DIN 371 2000318200* 182A		DIN 371 2000018210* T182A		DIN 371 2000018212* A682A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500068412* A684		DIN 376 2500018200* 182		DIN 376 2500318200* 182		DIN 376 2500018210* T182		DIN 376 2500018212* A682
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z
40	6	6	-	2.5	2.1			0.75	M 1*	(0.25)	010			3		3		3		3
40	6	6	-	2.5	2.1			0.85	M 1.1*	(0.25)	011			3		3		3		3
40	6	6	-	2.5	2.1			0.95	M 1.2*	(0.25)	012			3		3		3		3
40	7	7	-	2.5	2.1			1.1	M 1.4*	(0.3)	014			3		3		3		3
40	8	8	-	2.5	2.1			1.25	M 1.6	(0.35)	016			3		3		3		3
40	8	8	-	2.5	2.1			1.3	M 1.7	(0.35)	017			3		3		3		3
40	8	8	-	2.5	2.1			1.45	M 1.8	(0.35)	018			3		3		3		3
45	9	9	-	2.8	2.1			1.6	M 2	(0.4)	020			3 ■		3		3 ■		3 ■
45	9	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022			3		3		3		3
45	9	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023			3		3		3		3
50	9	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025			3 ■		3		3 ■		3 ■
50	9	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026			3		3		3		3
56	11	5	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3		3 ■		3 ■		3 ■		3 ■
56	12	6	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3		3 ■		3		3 ■		3 ■
63	13	7	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3		3 ■		3 ■		3 ■		3 ■
70	15	8	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■		3 ■		3 ■		3 ■		3 ■
80	17	10	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■		3 ■		3 ■		3 ■		3 ■
80	17	10	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3		3 ■		3		3		3
90	20	12	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■		3 ■ ■		3 ■		3 ■		3 ■
90	20	12	35	9	7	7	5.5	7.8	M 9	(1.25)	090	3		3		3		3		3
100	22	15	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■		3 ■ ■		3 ■		3 ■		3 ■
110	24	16				9	7	10.2	M 12	(1.75)	120	3 ■		3 ■		3 ■		3 ■		3 ■
110	26	20				11	9	12	M 14	(2)	140	3		3 ■		3 ■		3 ■		3 ■
110	27	20				12	9	14	M 16	(2)	160	3 ■		4 ■		4 ■		4 ■		4 ■
125	30	25				14	11	15.5	M 18	(2.5)	180	4		4 ■		4		4 ■		4 ■
140	32	25				16	12	17.5	M 20	(2.5)	200	4 ■		4 ■		4 ■		4 ■		4 ■
140	32	25				18	14.5	19.5	M 22	(2.5)	220	4		4 ■		4		4 ■		4 ■
160	34	30				18	14.5	21	M 24	(3)	240	4 ■		4 ■		4 ■		4 ■		4 ■
160	36	30				20	16	24	M 27	(3)	270	4		4 ■		4		4 ■		4 ■
180	40	35				22	18	26.5	M 30	(3.5)	300	4		4 ■		4		4 ■		4 ■
180	40	40				25	20	29.5	M 33	(3.5)	330	4		4		4		4		4
200	50	45				28	22	32	M 36	(4)	360	4		5		5		5		5
200	50	45				32	24	35	M 39	(4)	390	4		5		5		5		5
200	56	50				32	24	37.5	M 42	(4.5)	420	4		5		5		5		5
220	58	50				36	29	40.5	M 45	(4.5)	450	4		5		5		5		5
250	65	55				36	29	43	M 48	(5)	480	4		5		5		5		5
250	65	55				40	32	47	M 52	(5)	520	4		5		5		5		5
										■ = Stock				EDP: T184A M 8 = 2000018410080
