Grinding and Inspection Vices
PS-SV

APPLICATION
Mainly in tool construction on grinding, milling and engraving machines, on jig boring machines, for measuring and control work and for production operations requiring high clamping precision.
TECHNICAL FEATURES
- Made of alloyed tool steel, hardened and very finely ground
- Bearing and support pins hardened and ground to a precision of 0.001 mm

CUSTOMER BENEFITS
» The clamping device can be positively locked in any angular position




A29

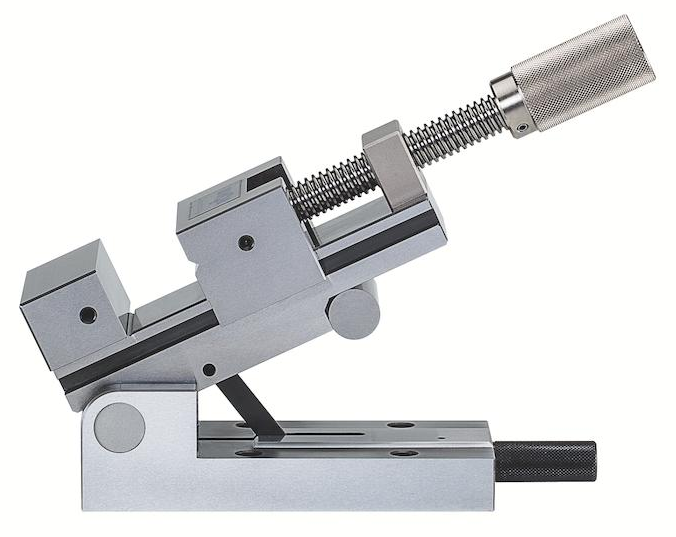

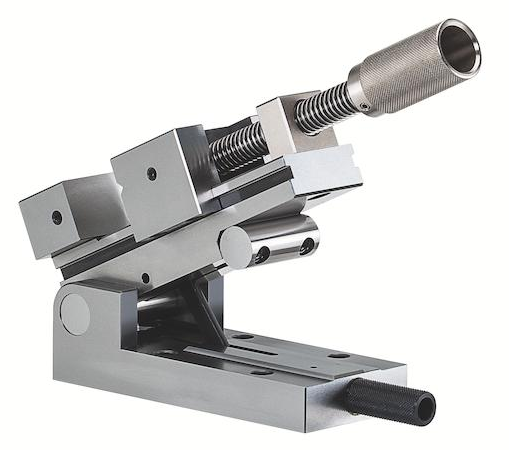

PS-SV, front swivelling axis
 Item No.  370778  370779
 Size  1  2
 Squareness / 100 mm  0.005  0.005
 Parallelism / 100 mm  0.002  0.002
 Angular accuracy  at 45° ± 15“  at 45° ± 15“
 Jaw width mm  70  90

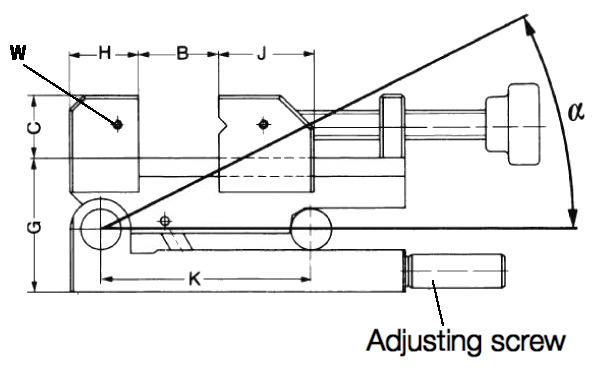

 B mm  80  120
 Total height mm  93  113
 C mm  30  40
 Length body mm  160  210
 G mm  63  73
 H mm  33  40
 J mm  45  50
 K mm  100  150
 α  0° - 46°  0° - 46°
 W  2 x M 5 x 15  2 x M 5 x 15
 Weight kg  5.3  11
